Toyota Toyoace
1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe
Discontinued model
Data version 1979-02

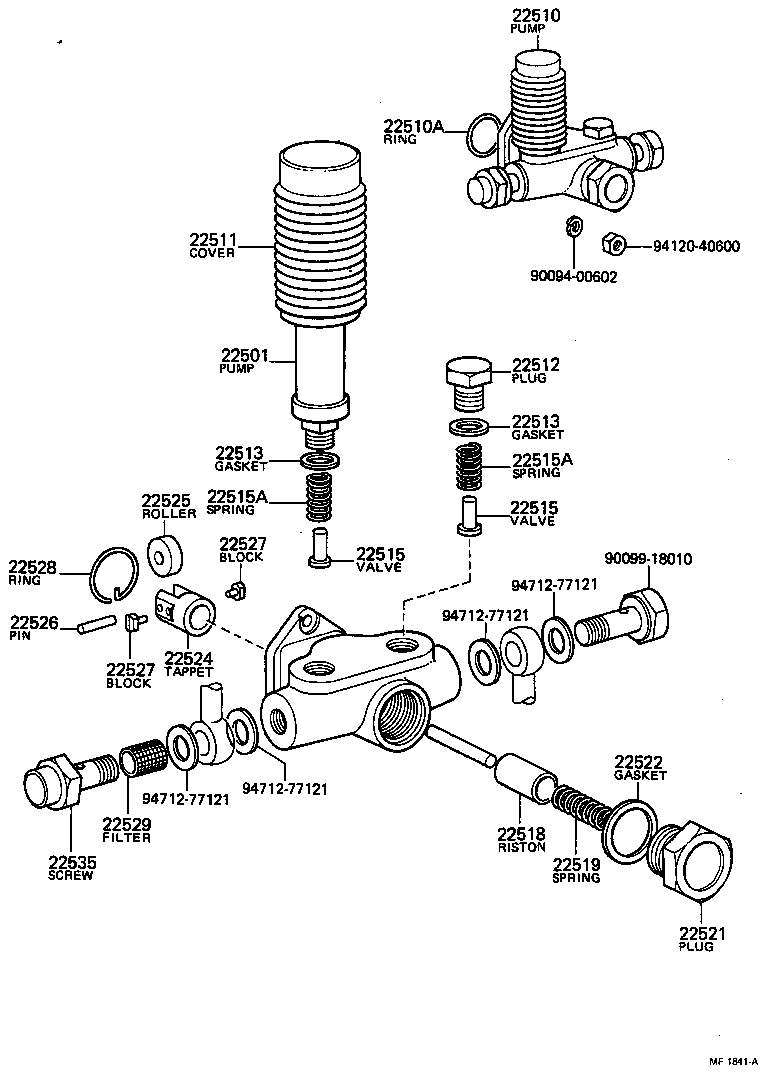

Fuel Feed Pump
21 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 22501 | Pump Sub-assy, Priming |
| 22510 | Pump Assy, Fuel Feed |
| 22510A | Ring, O(FOR FUEL FEED PUMP) |
| 22511 | Cover, Priming Pump |
| 22512 | Plug, Feed Pump Check Valve Chamber |
| 22513 | Gasket, Check Valve Chamber Plug |
| 22515 | Valve, Feed Pump Check |
| 22515A | Spring, Feed Pump Check Valve |
| 22517 | Rod, Feed Pump Push |
| 22518 | Piston, Feed Pump |
| 22519 | Spring, Feed Pump Piston |
| 22521 | Plug, Feed Pump Piston Chamber |
| 22522 | Gasket, Feed Pump Piston Plug |
| 22524 | Tappet, Feed Pump |
| 22524A | Spring, Feed Pump Tappet |
| 22525 | Roller, Feed Pump Tappet |
| 22526 | Pin, Feed Pump Tappet Roller |
| 22527 | Block, Feed Pump Tappet Sliding |
| 22528 | Ring, Feed Pump Tappet Snap |
| 22529 | Filter, Fuel Pump |
| 22535 | Screw, Fuel Pipe Follow |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
