Toyota Toyoace
1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe
Discontinued model
Data version 1979-02

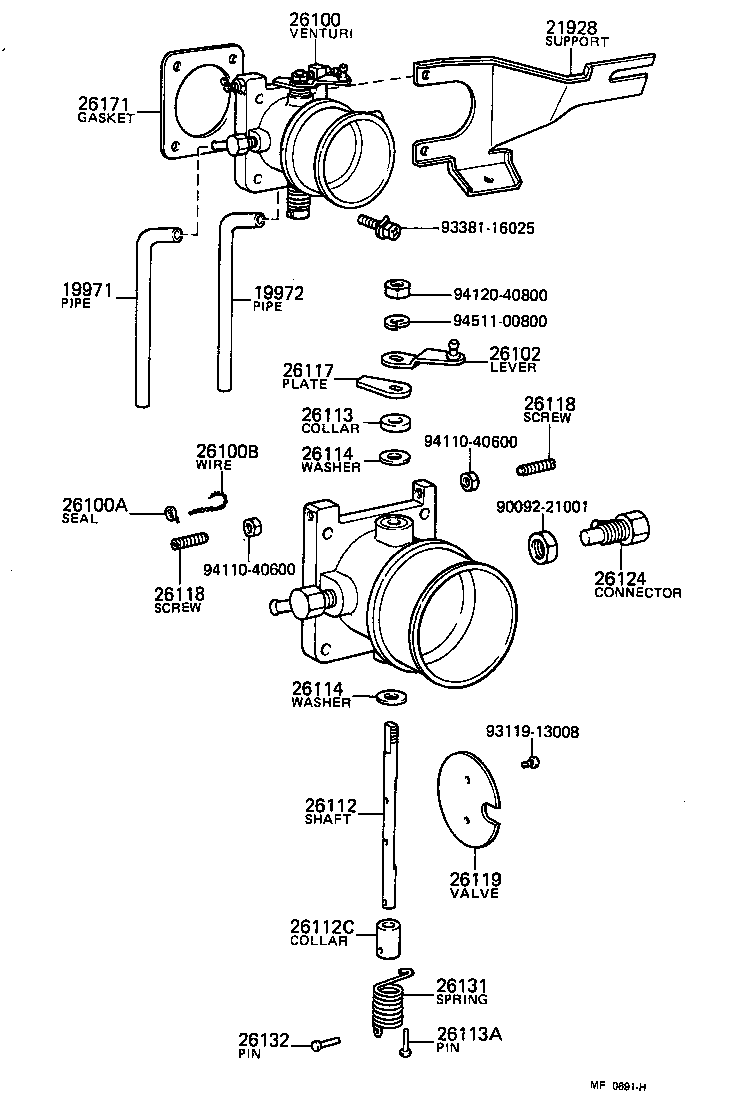

Venturi
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 19971 | Pipe, Vacuum(FOR VENTURI) |
| 19972 | Pipe, Air Cleaner Vent |
| 21091A | Bellcrank, Choke Rod(FOR VENTURI) |
| 21905C | Rod, Accelerator Connecting(FOR VENTURI) |
| 21928 | Support, Throttle Wire |
| 21942J | Shaft, Accelerator Link(FOR VENTURI) |
| 26100 | Venturi Assy |
| 26100A | Seal, Lead |
| 26100B | Wire, Seal |
| 26102 | Lever Sub-assy, Throttle Shaft Adjusting |
| 26112 | Shaft, Venturi Throttle Valve |
| 26112C | Collar, Adjusting |
| 26113 | Collar, Throttle Valve Shaft |
| 26113A | Pin, Throttle Valve Shaft |
| 26114 | Washer, Throttle Valve Shaft Adjusting |
| 26117 | Plate, Throttle Valve Shaft Stop |
| 26118 | Screw, Stop Plate Adjusting |
| 26119 | Valve, Venturi Throttle |
| 26124 | Connector, Venturi Pipe |
| 26131 | Spring, Return |
| 26132 | Pin |
| 26171 | Gasket, Venturi |
| 26370 | Rod Sub-assy, Pneumatic Governor Connecting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
