Toyota Toyoace
1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe
Discontinued model
Data version 1979-02

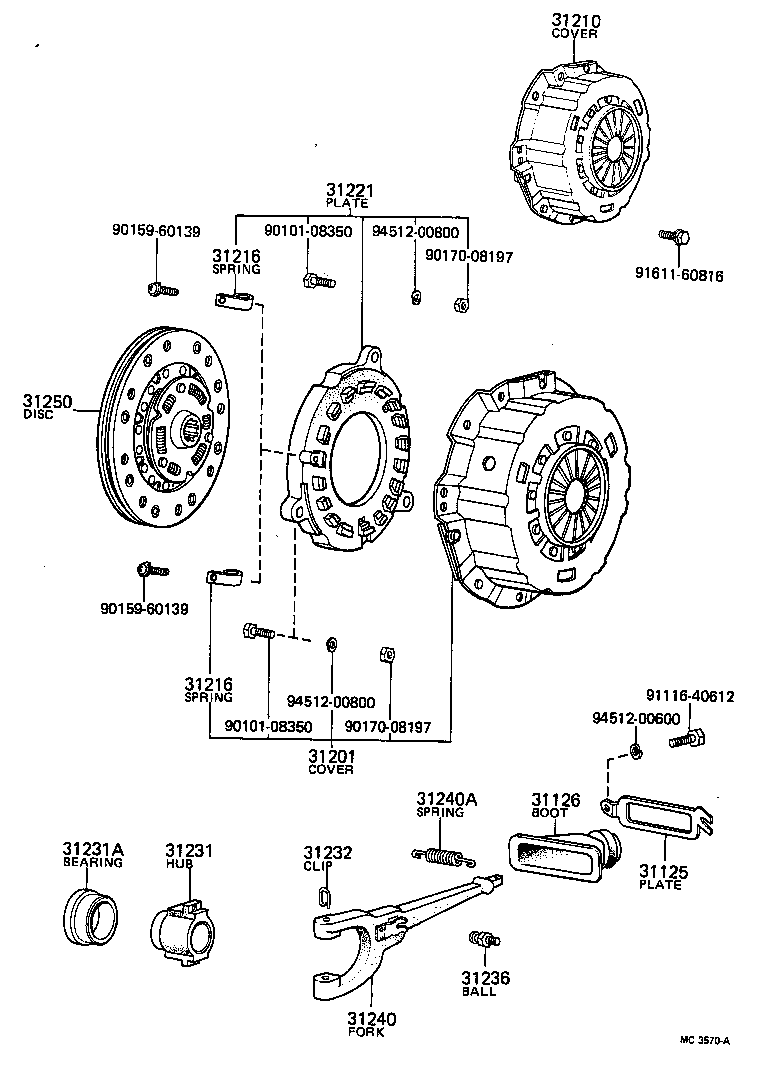

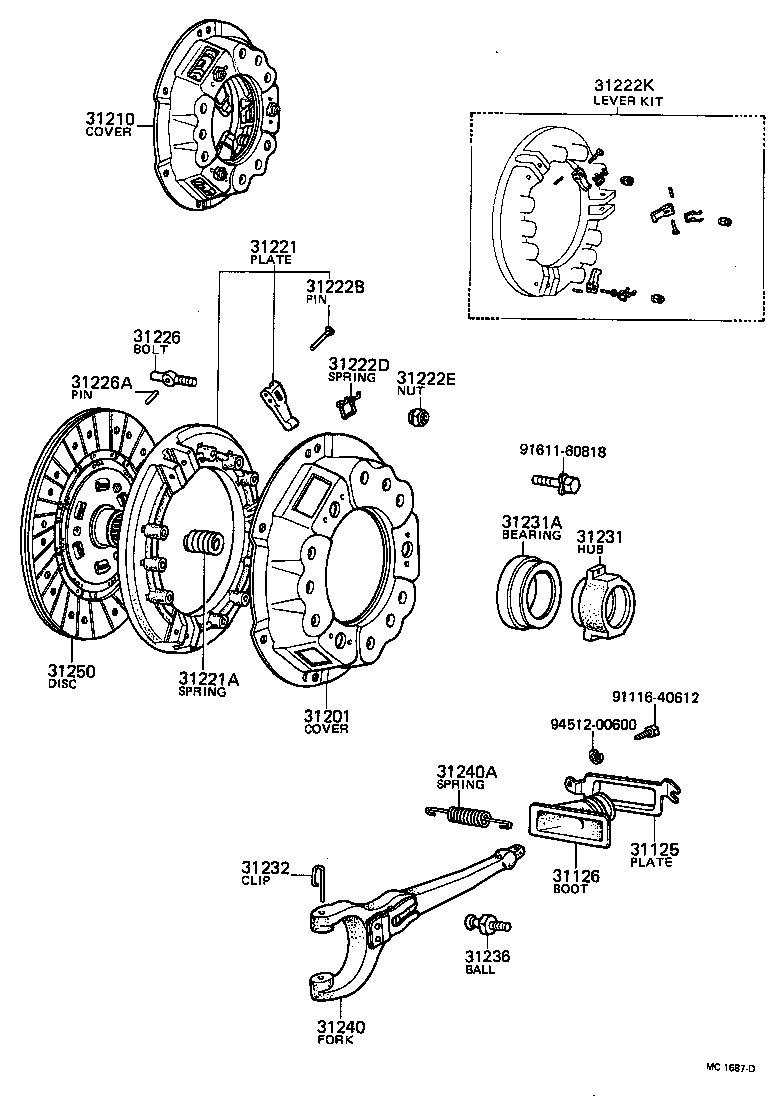

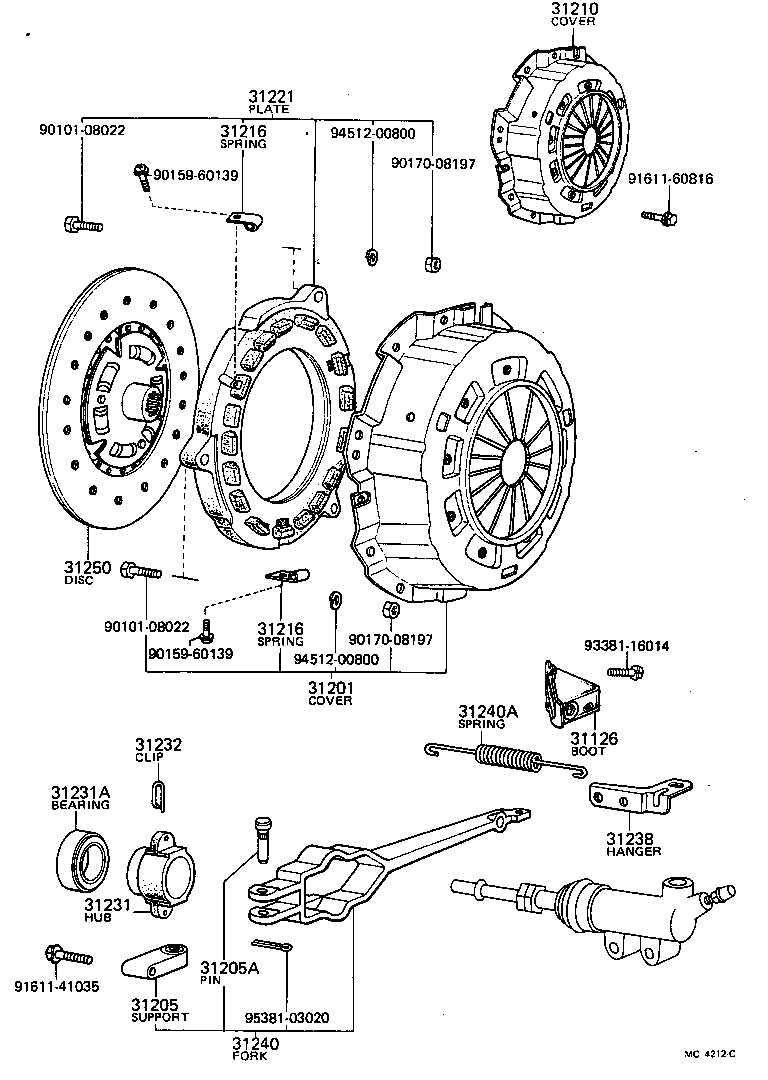

Clutch & Release Fork
24 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 31125 | Plate, Release Fork Boot |
| 31126 | Boot, Clutch Release Fork |
| 31201 | Cover Sub-assy, Clutch |
| 31205 | Support Sub-assy, Release Fork |
| 31205A | Pin, W/Serration(FOR RELEASE FORK SUPPORT) |
| 31210 | Cover Assy, Clutch |
| 31216 | Spring, Clutch Retracting |
| 31221 | Plate, Clutch Pressure |
| 31221A | Spring, Compression(FOR CLUTCH) |
| 31222B | Pin, W/Hole(FOR CLUTCH PRESSURE LEVER) |
| 31222D | Spring, Tension(FOR CLUTCH PRESSURE LEVER) |
| 31222E | Nut(FOR CLUTCH PRESSURE LEVER ADJUST) |
| 31222F | Washer(FOR CLUTCH PRESSURE LEVER) |
| 31222K | Lever Kit, Clutch Pressure |
| 31226 | Bolt, Clutch Pressure Plate |
| 31226A | Rivet OR Pin(FOR CLUTCH PRESSURE PLATE BOLT LOCK) |
| 31231 | Hub, Clutch Release Bearing |
| 31231A | Bearing, Ball(FOR CLUTCH RELEASE HUB) |
| 31232 | Clip OR Spring, Release Bearing Hub |
| 31236 | Ball, Release Fork |
| 31238 | Hanger, Release Fork Retracting Spring |
| 31240 | Fork Assy, Clutch Release |
| 31240A | Spring, Tension(FOR CLUTCH RELEASE FORK RETURN) |
| 31250 | Disc Assy, Clutch |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
