Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Release Cylinder

9 part groups · 2 illustrations

Illustrations

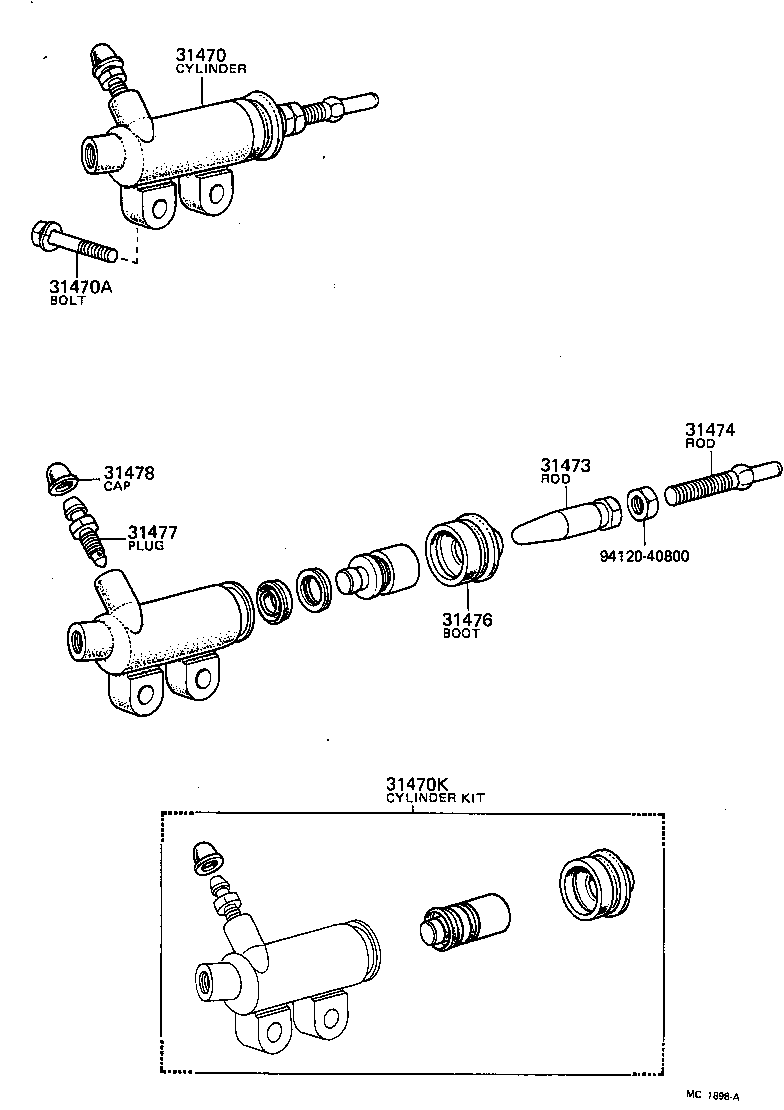

Figure MC0473D MC0473D 1971-09 → 1979-02 Figure MC1898A MC1898A 1972-07 → 1979-02

Part groups

PNCDescription
31470 Cylinder Assy, Clutch Release
31470A Bolt(FOR CLUTCH RELEASE CYLINDER SETTING)
31470K Cylinder Kit, Clutch Release
31473 Rod, Clutch Release Cylinder Push, NO.1
31474 Rod, Clutch Release Cylinder Push, NO.2
31476 Boot, Clutch Release Cylinder
31477 Plug, Bleeder(FOR RELEASE CYLINDER)
31477A Ball(FOR RELEASE CYLINDER BLEEDER PLUG)
31478 Cap, Bleeder Plug(FOR RELEASE CYLINDER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
