Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Control Shaft & Crossshaft

51 part groups · 7 illustrations

Illustrations

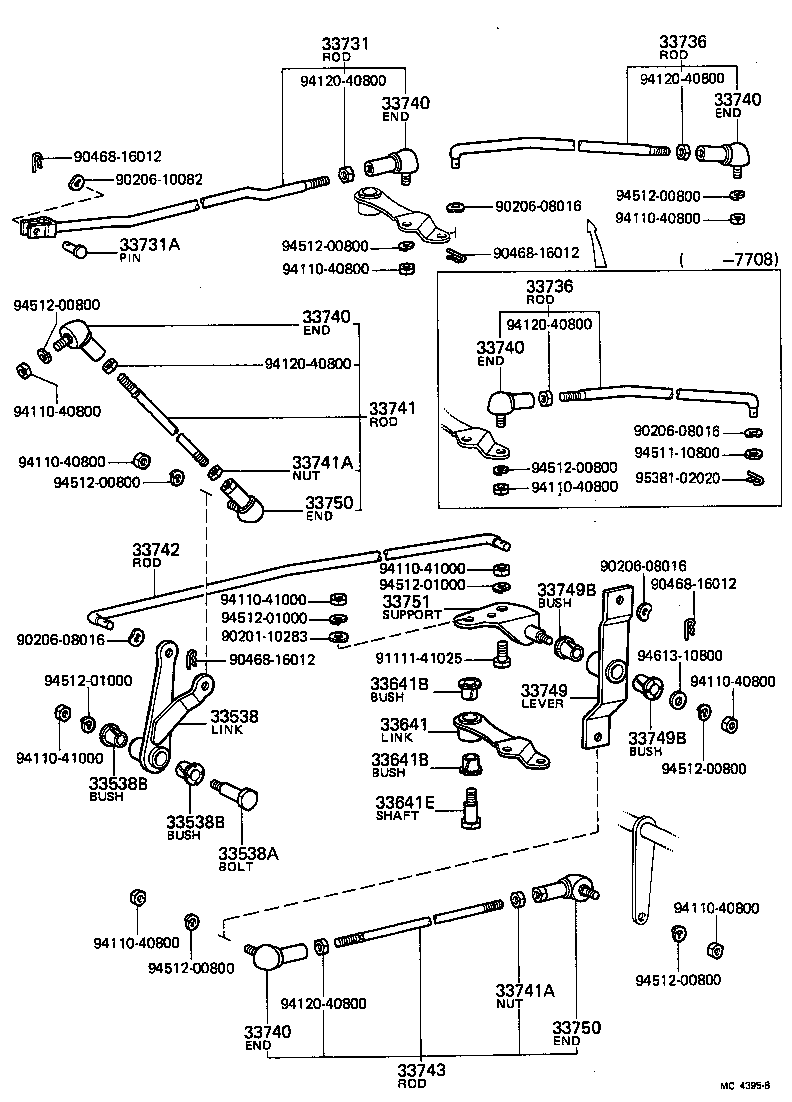

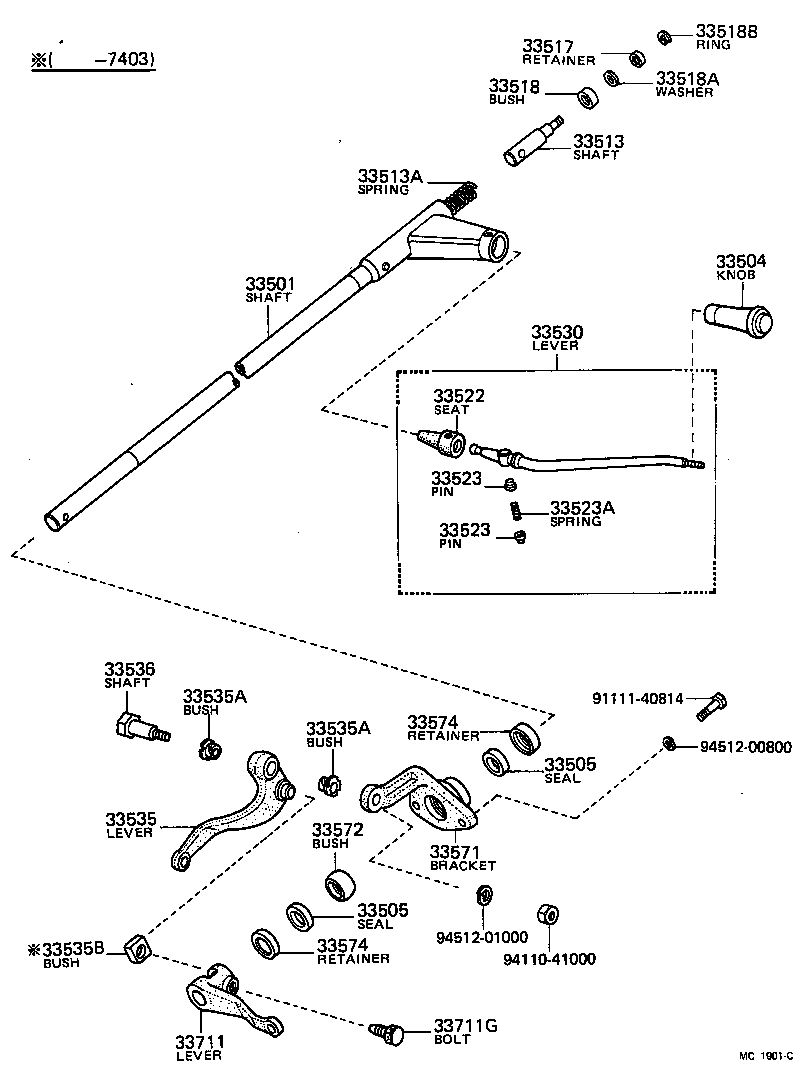

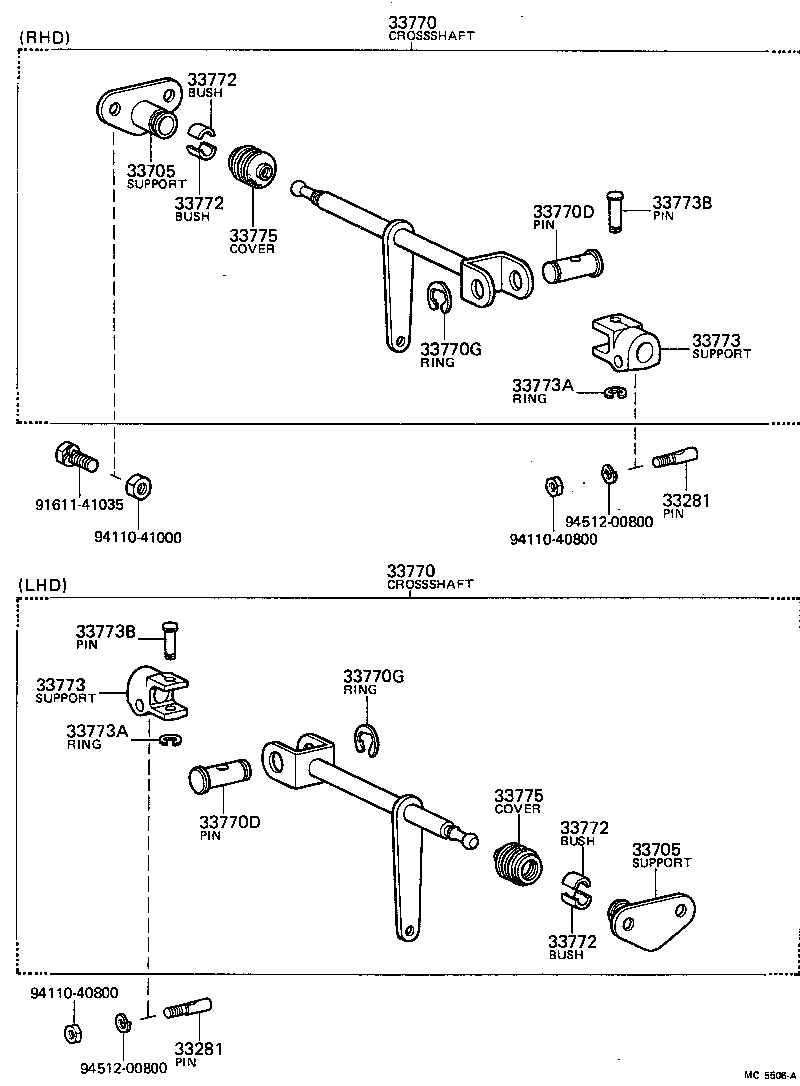

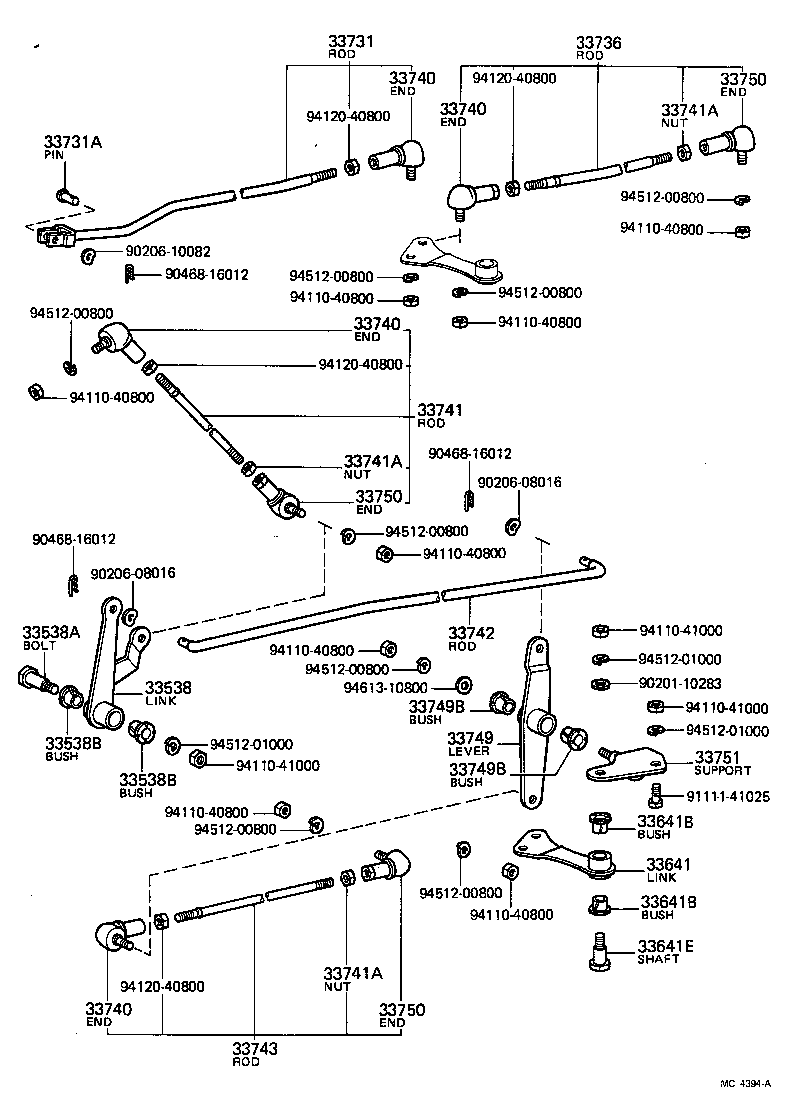

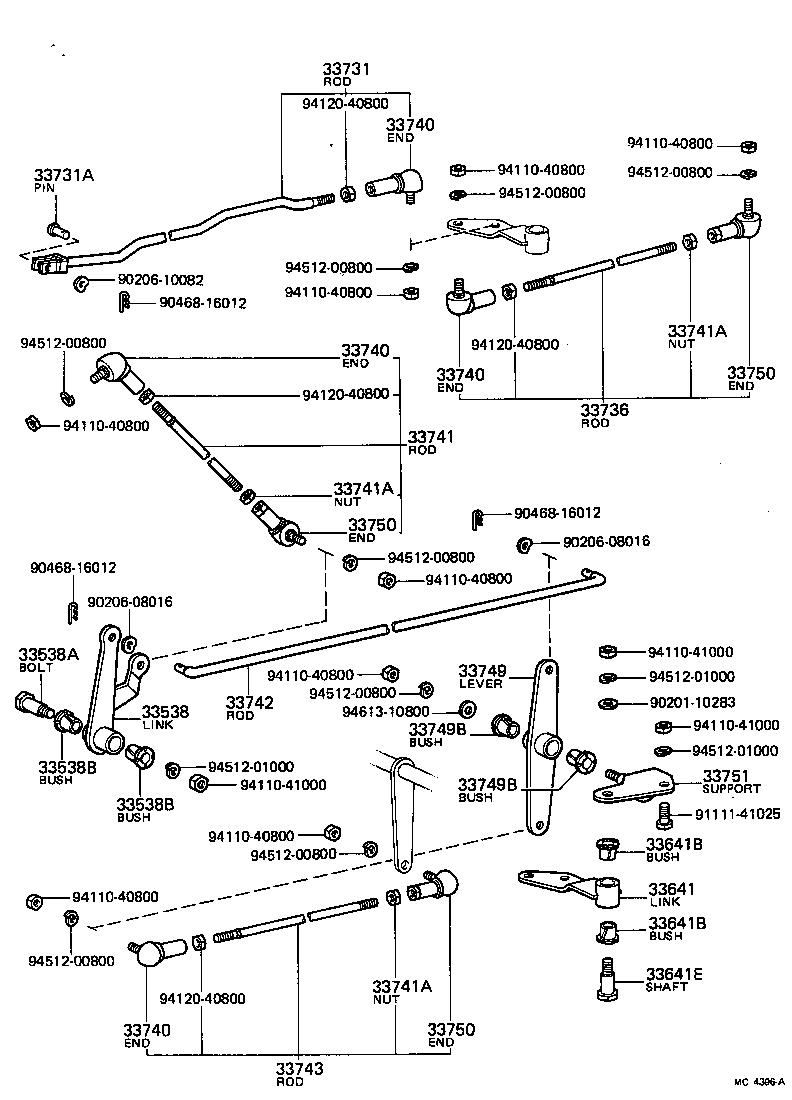

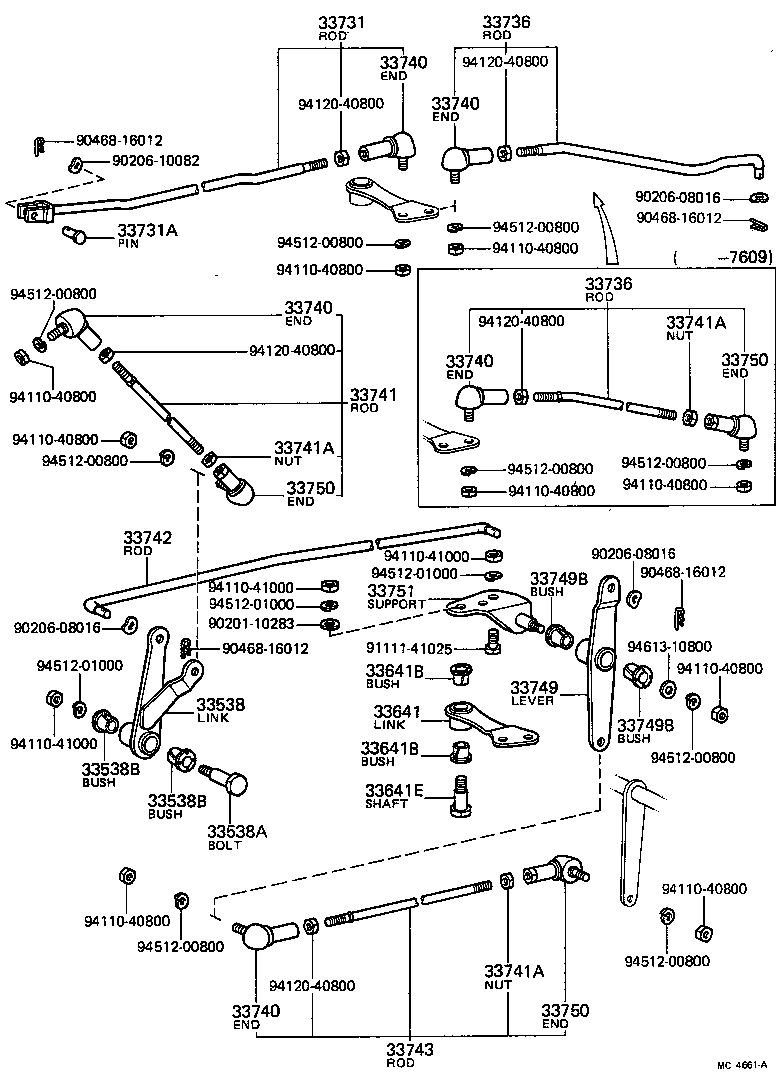

Figure MC1450A MC1450A 1971-09 → 1972-07 Figure MC1901C MC1901C 1972-07 → 1979-02 Figure MC4661A MC4661A 1971-09 → 1979-02 Figure MC4394A MC4394A 1971-09 → 1979-02 Figure MC4395B MC4395B 1972-07 → 1979-02 Figure MC4396A MC4396A 1972-07 → 1979-02 Figure MC5506A MC5506A 1972-07 → 1979-02

Part groups

PNCDescription
33281 Pin, Lever Lock (FOR COLUMN SHIFT)
33501 Shaft Sub-assy, Control (FOR COLUMN SHIFT)
33504 Knob Sub-assy, Shift Lever (FOR COLUMN SHIFT)
33505 Seal Sub-assy, Control Shaft Dust (FOR COLUMN SHIFT)
33513 Shaft, Control Shaft Bracket, Upper
33513A Spring, Compression (FOR BRACKET UPPER SHAFT)
33517 Retainer, Control Shaft Upper Spring
33518 Bush, Upper Control Shaft Piece
33518A Washer, Plate (FOR UPPER CONTROL SHAFT PIECE BUSH)
33518B Ring, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
33522 Seat, Shift Lever Plate (FOR COLUMN SHIFT)
33523 Pin, Shift Lever (FOR COLUMN SHIFT)
33523A Spring, Compression
33530 Lever Assy, Shift (FOR COLUMN SHIFT)
33535 Lever, Control Select (FOR COLUMN SHIFT)
33535A Bush (FOR CONTROL SELECT LEVER)
33535B Bush, Control Shift Lever
33536 Shaft, Control Select Lever (FOR COLUMN SHIFT)
33538 Link, Shifting Lever
33538A Bolt (FOR SHIFTING LEVER LINK SETTING)
33538B Bush (FOR SHIFTING LEVER LINK)
33571 Bracket, Control Shaft, Lower (FOR COLUMN SHIFT)
33572 Bush, Control Shaft Lower (FOR COLUMN SHIFT)
33573 Cover, Control Shaft Dust, Lower
33574 Retainer, Dust Seal (FOR COLUMN SHIFT CONTROL SHAFT)
33641 Link, Selecting (FOR COLUMN SHIFT)
33641B Bush (FOR SELECTING LINK)
33641E Shaft, Selecting Link
33705 Support Sub-assy, Cross Shaft (FOR BODY SIDE)
33711 Lever, Control Shaft (FOR COLUMN SHIFT)
33711G Bolt, Control Shaft Lever Lock
33731 Rod, Gear Selecting, NO.1 (FOR COLUMN SHIFT)
33731A Pin, W/Hole (FOR COLUMN SHIFT GEAR SELECTING ROD)
33736 Rod, Gear Selecting, NO.2(FOR COLUMN SHIFT)
33740 End Assy, Connecting Rod, NO.1(FOR COLUMN SHIFT)
33741 Rod, Gear Shifting, NO.1 (FOR COLUMN SHIFT)
33741A Nut, Hexagon (FOR COLUMN SHIFT SELECTING OR SHIFTING ROD)
33742 Rod, Gear Shifting, NO.2(FOR COLUMN SHIFT)
33743 Rod, Gear Shifting, NO.3 (FOR COLUMN SHIFT)
33749 Lever, Gear Shifting, NO.3 (FOR COLUMN SHIFT)
33749B Bush (FOR COLUMN SHIFT GEAR SHIFTING LEVER)
33750 End, Connecting Rod, NO.2 (FOR COLUMN SHIFT)
33751 Support, Gear Shift Link Lever (FOR COLUMN SHIFT)
33770 Shaft Assy, Cross (FOR COLUMN SHIFT)
33770D Pin (FOR CROSS SHAFT)
33770G Ring, E (FOR CROSS SHAFT)
33772 Bush, NO.1, Cross Shaft Support (FOR COLUMN SHIFT)
33773 Support, Cross Shaft, NO.1 (FOR COLUM SHIFT)
33773A Ring, Hole Snap (FOR CROSS SHAFT SUPPORT SNAP)
33773B Pin (FOR CROSS SHAFT SUPPORT)
33775 Cover, Cross Shaft Dust (FOR COLUMN SHIFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
