Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Axle Shaft & Hub

25 part groups · 3 illustrations

Illustrations

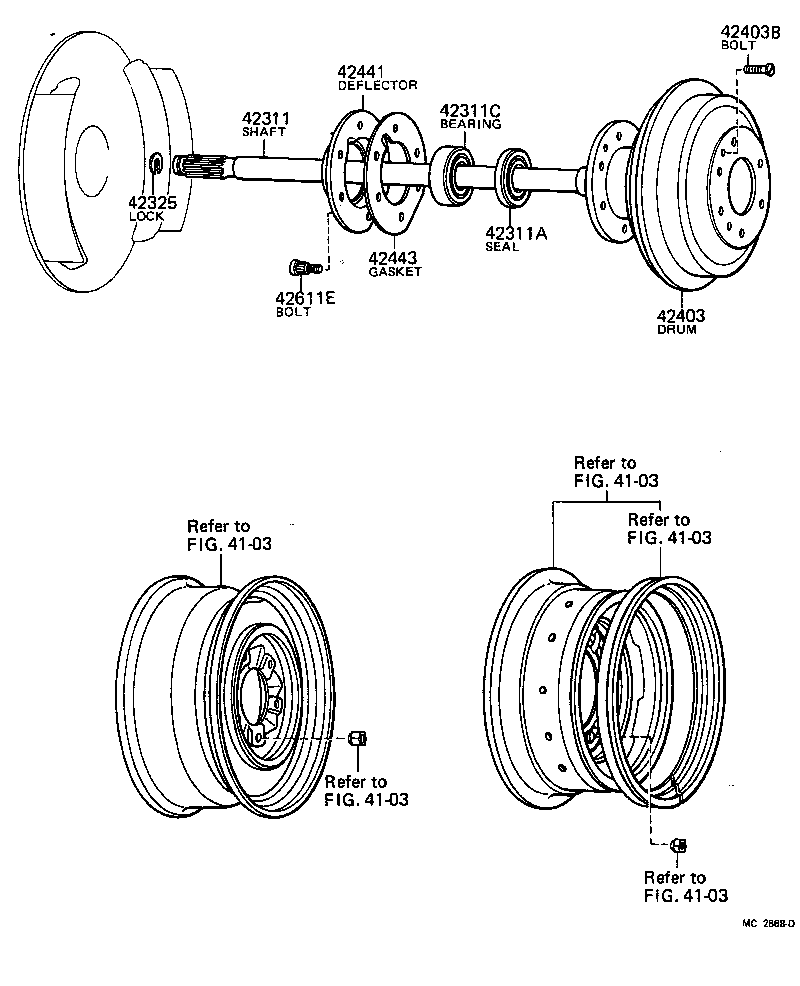

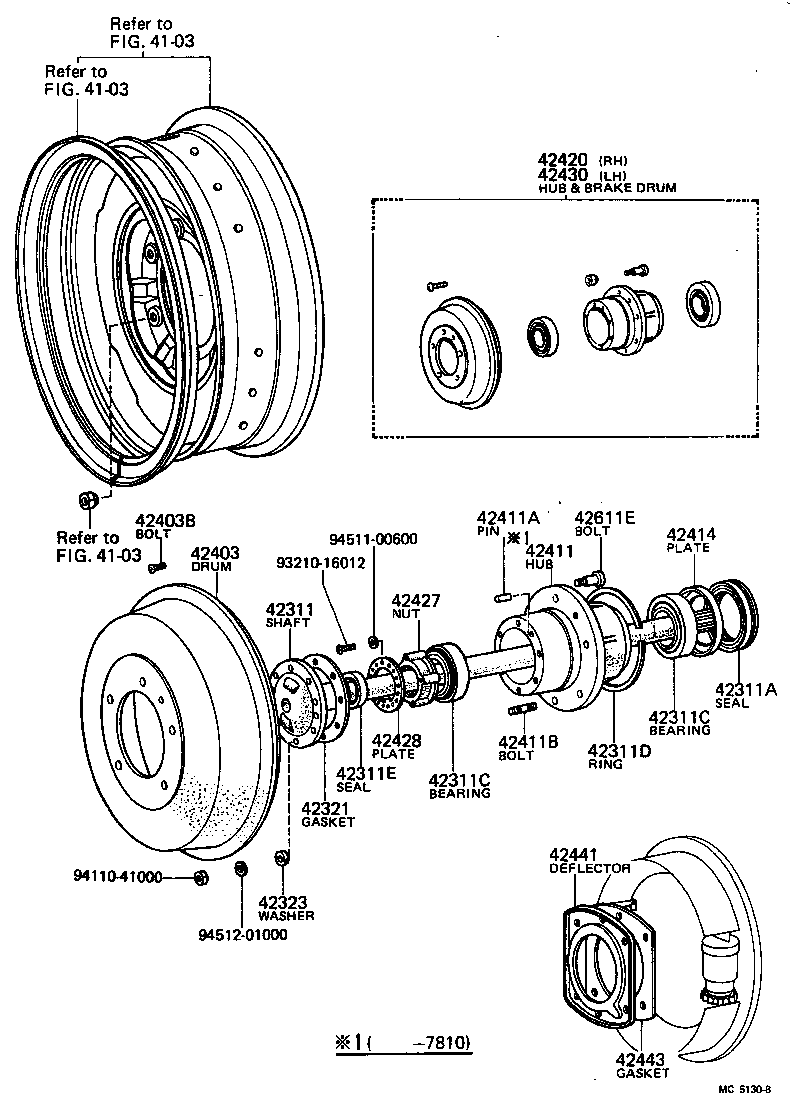

Figure MC3865C MC3865C 1971-09 → 1979-02 Figure MC2668D MC2668D 1971-09 → 1979-02 Figure MC5130B MC5130B 1972-07 → 1979-02

Part groups

PNCDescription
42311 Shaft, Rear Axle
42311A Seal, Oil(FOR REAR AXLE SHAFT)
42311C Bearing(FOR REAR AXLE SHAFT)
42311D Ring, Snap(FOR REAR AXLE SHAFT)
42311E Seal, Oil(FOR REAR AXLE SHAFT OUTER)
42321 Gasket, Rear Axle Shaft
42323 Washer, Cone (FOR REAR AXLE SHAFT)
42325 Lock, Rear Axle Shaft
42403 Drum Sub-assy, Rear Brake
42403B Bolt, Set (FOR REAR BRAKE DRUM SETTING)
42411 Hub, Rear Axle
42411A Pin, Straight (FOR REAR AXLE HUB)
42411B Bolt, Stud (FOR REAR AXLE HUB)
42414 Plate, Rear Axle Hub
42420 Hub (OR SHAFT) & Brake Drum Rear Axle, RH
42423 Retainer, Rear Axle Bearing, Inner
42424 Retainer, Rear Axle Bearing, Outer, RH
42424A Ring, O (FOR BEARING RETAINER SET)
42427 Nut, Rear Axle Bearing Lock
42428 Plate, Rear Axle Lock Nut
42430 Hub (OR SHAFT) & Brake Drum Rear Axle, LH
42441 Deflector, Brake Drum Oil
42443 Gasket, Brake Drum Oil Deflector
42454 Retainer, Rear Axle Bearing, Outer, LH
42611E Bolt, Hub (FOR REAR AXLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
