Toyota Toyoace
1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe
Discontinued model
Data version 1979-02

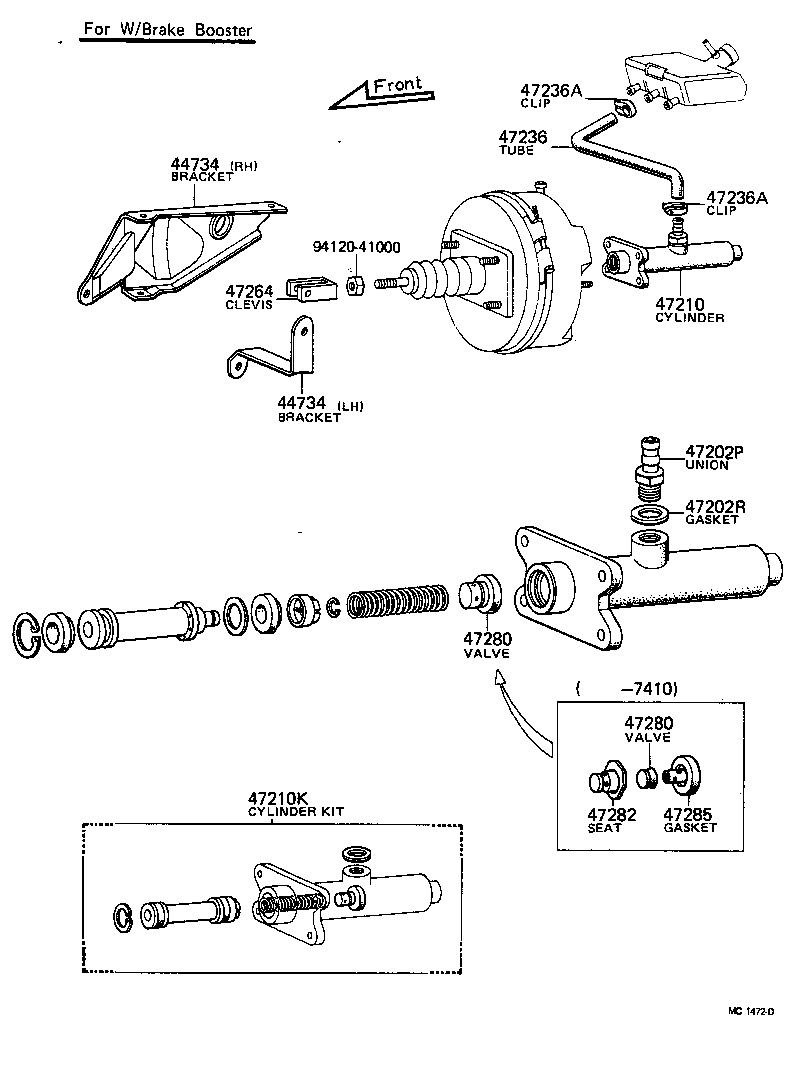

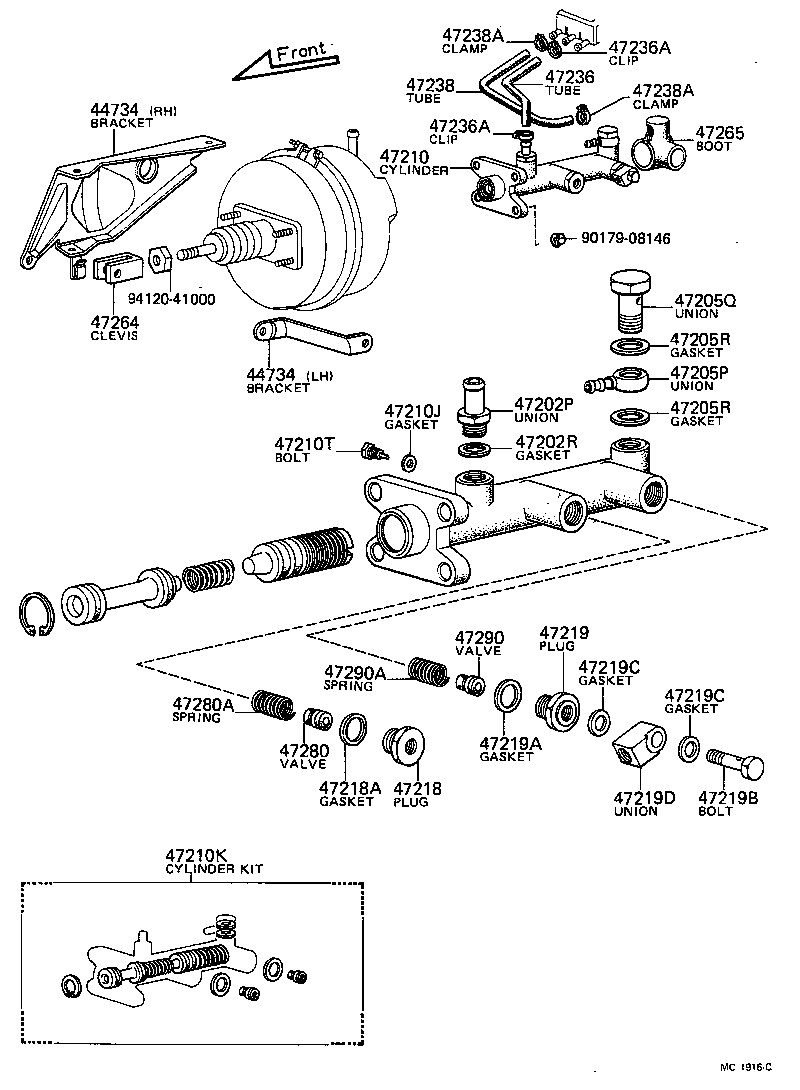

Brake Master Cylinder
31 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 44734 | Bracket, Booster Support OR Rod Support |
| 47202P | Union, Reservoir(FOR BRAKE MASTER CYLINDER SIDE) |
| 47202R | Gasket, Reservoir Union(FOR BRAKE MASTER CYLINDER SIDE) |
| 47205P | Union, Reservoir(FOR BRAKE MASTER CYLINDER REAR SIDE) |
| 47205Q | Bolt, Rsvr Union, NO.2(FOR BRAKE MASTER CYLINDER RR SIDE) |
| 47205R | Gasket, Reservoir Union(FOR BRAKE MASTER CYLINDER REAR SIDE) |
| 47210 | Cylinder Assy, Master, W/O Booster |
| 47210A | Bolt OR Stud Bolt(FOR BRAKE MASTER CYLINDER SETTING) |
| 47210J | Gasket(FOR MASTER CYLINDER) |
| 47210K | Cylinder Kit, Brake Master |
| 47210T | Bolt(FOR BRAKE MASTER CYLINDER) |
| 47218 | Plug, Master Cylinder Fluid Outlet |
| 47218A | Gasket(FOR FLUID OUTLET PLUG) |
| 47219 | Plug, Master Cylinder Fluid Outlet(FOR REAR SIDE) |
| 47219A | Gasket(FOR FLUID OUTLET PLUG REAR SIDE) |
| 47219B | Bolt, Union(FOR FLUID OUTLET REAR SIDE) |
| 47219C | Gasket(FOR FLUID OUTLET UNION BOLT REAR SIDE) |
| 47219D | Union(FOR FLUID OUTLET REAR SIDE) |
| 47236 | Tube, Reservoir Brake |
| 47236A | Clip(FOR RESERVOIR TUBE) |
| 47238 | Hose, Master Cylinder Bridge |
| 47238A | Clamp, Hose(FOR MASTER CYLINDER BRIDGE HOSE) |
| 47261 | Rod, Master Cylinder Push |
| 47264 | Clevis, Master Cylinder Push Rod |
| 47265 | Boot, Master Cylinder |
| 47280 | Valve Assy, Brake Master Cylinder Outlet Check |
| 47280A | Spring, Compression |
| 47282 | Seat, Outlet Check Valve Seat |
| 47285 | Gasket, Outlet Check Valve Seat |
| 47290 | Valve Assy, Master Cylinder Outlet(FOR REAR SIDE) |
| 47290A | Spring, Compression(FOR FLUID OUTLET REAR SIDE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
