Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

29 part groups · 5 illustrations

Illustrations

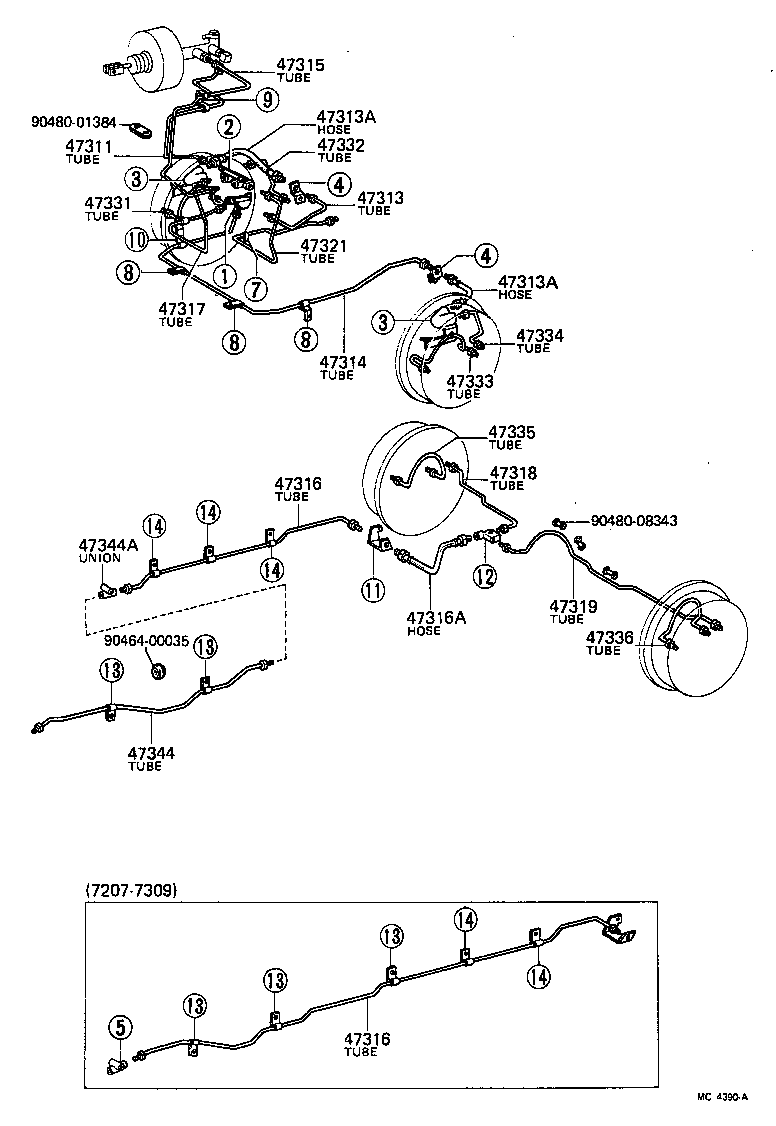

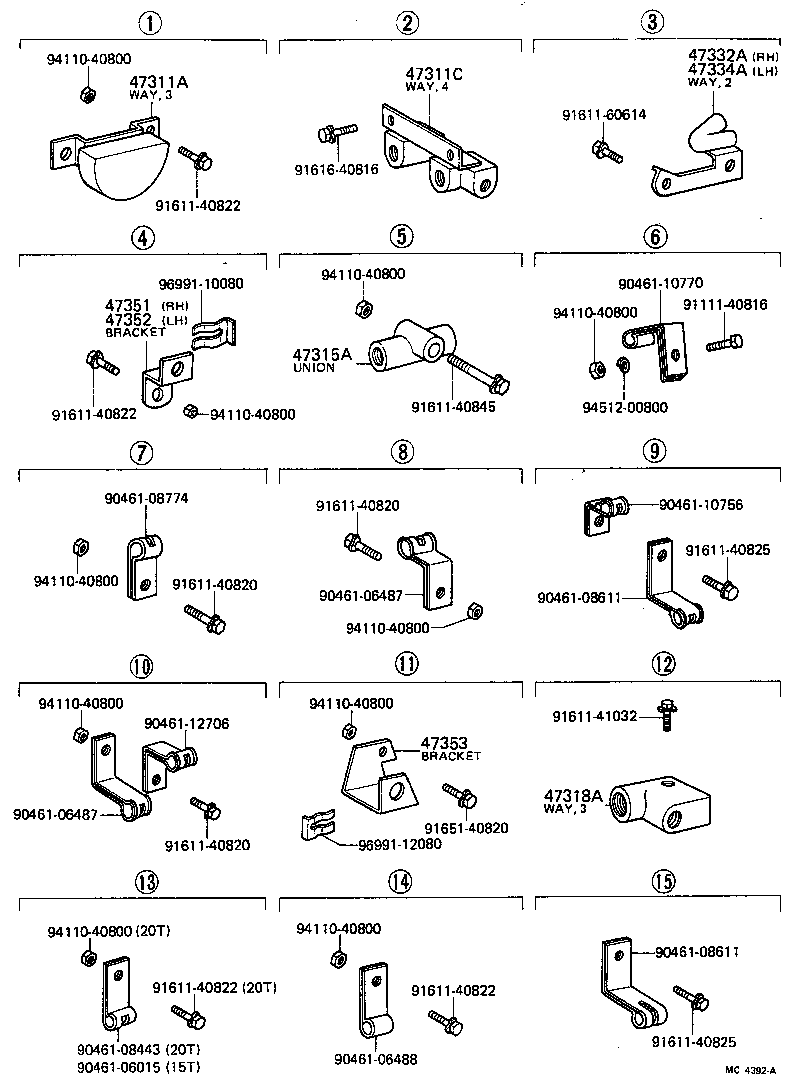

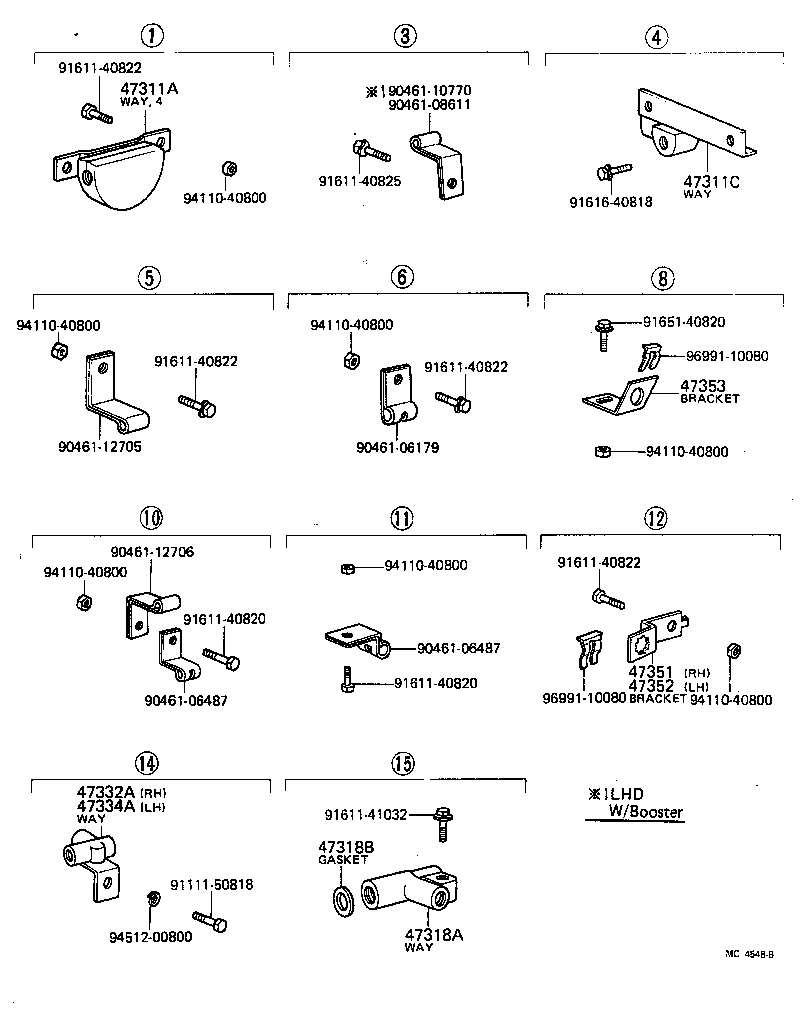

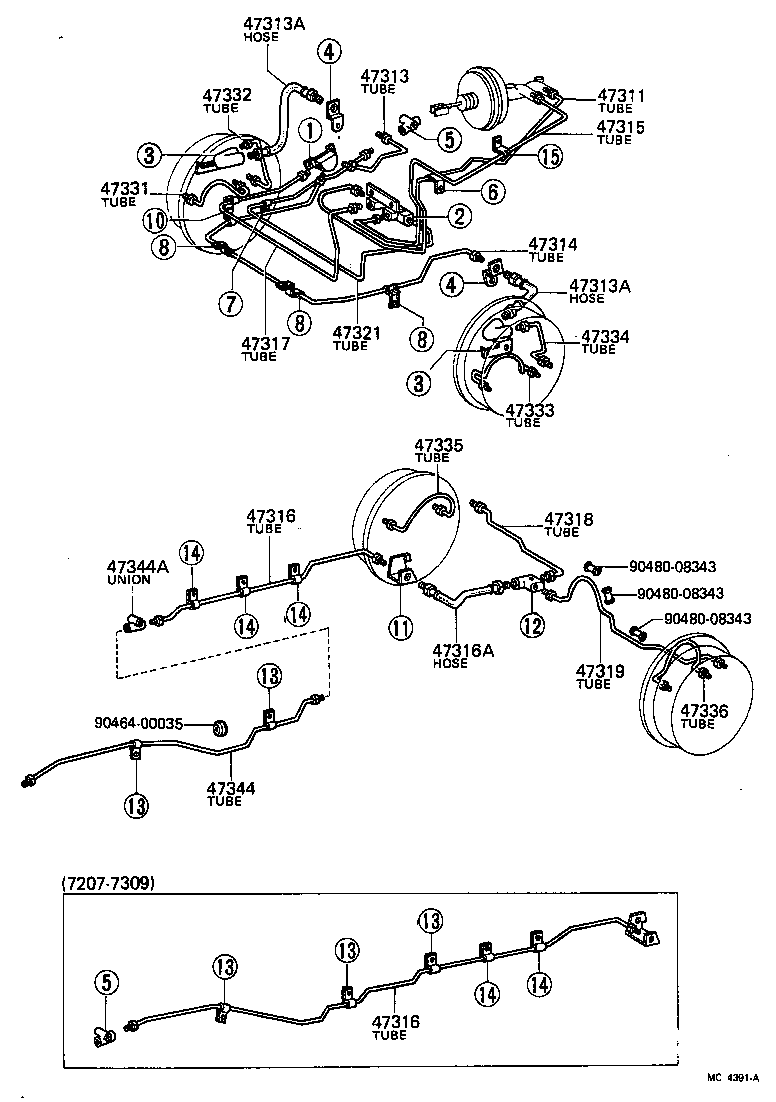

Figure MC4388 MC4388 1971-09 → 1979-02 Figure MC4548B MC4548B 1971-09 → 1979-02 Figure MC4390A MC4390A 1972-07 → 1979-02 Figure MC4391A MC4391A 1972-07 → 1979-02 Figure MC4392A MC4392A 1972-07 → 1979-02

Part groups

PNCDescription
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47311C Union(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47315A Way OR Union(FOR REAR BRAKE TUBE)
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47318 Tube, Front Brake, NO.8
47318A Way(FOR REAR RH BRAKE TUBE)
47318B Gasket(FOR REAR RH BRAKE TUBE)
47319 Tube, Front Brake, NO.9
47321 Tube, Rear Brake, NO.1
47331 Tube, Rear Brake, NO.10
47332 Tube, Rear Brake, NO.11
47332A Way(FOR BRAKE WHEEL CYLINDER FRONT RH TUBE)
47333 Tube, Rear Brake, NO.12
47334 Tube, Rear Brake, NO.13
47334A Way(FOR BRAKE WHEEL CYLINDER FRONT LH TUBE)
47335 Tube, Rear Brake, NO.14
47336 Tube, Rear Brake, NO.15
47344 Tube, Wheel Cylinder, Front LH NO.2
47344A Union, NO.2(FOR REAR BRAKE TUBE)
47351 Bracket, Flexible Hose(FOR FRONT RH)
47352 Bracket, Flexible Hose(FOR FRONT LH)
47353 Bracket, Flexible Hose(FOR REAR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
