Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Arm & Steering Knuckle

15 part groups · 3 illustrations

Illustrations

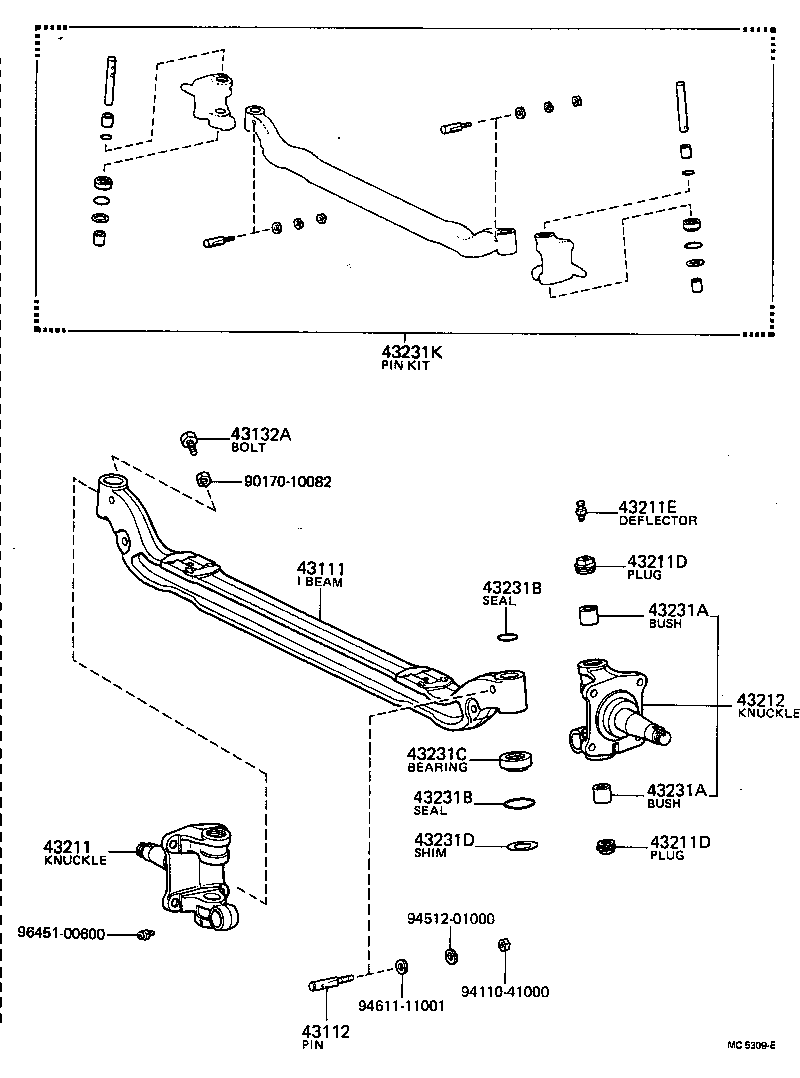

Figure MC0579F MC0579F 1971-09 → 1979-02 Figure MC0579F MC0579F 1972-07 → 1977-08 Figure MC5309E MC5309E 1977-08 → 1979-02

Part groups

PNCDescription
43111 I Beam, Front Axle
43112 Pin, King Pin Lock
43132 Stopper, Steering Knuckle, RH
43132A Bolt, Round Hexagon (FOR STEERING KNUCKLE STOPPER BOLT)
43133 Stopper, Steering Knuckle, LH
43211 Knuckle, Steering, RH
43211D Plug (FOR STEERING KNUCKLE)
43211E Deflector, Dust (FOR STEERING KNUCKLE)
43212 Knuckle, Steering, LH
43231A Bush, Bimetal Formed (FOR STEERING KNUCKLE KING PIN BUSH)
43231B Seal, Dust OR Ring, O (FOR STEERING KNUCKLE KING PIN)
43231C Bearing (FOR STEERING KNUCKLE KING PIN)
43231D Shim (FOR KING PIN)
43231E Plug (FOR STEERING KNUCKLE)
43231K Pin Kit, Steering Knuckle King
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
