Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

46 part groups · 6 illustrations

Illustrations

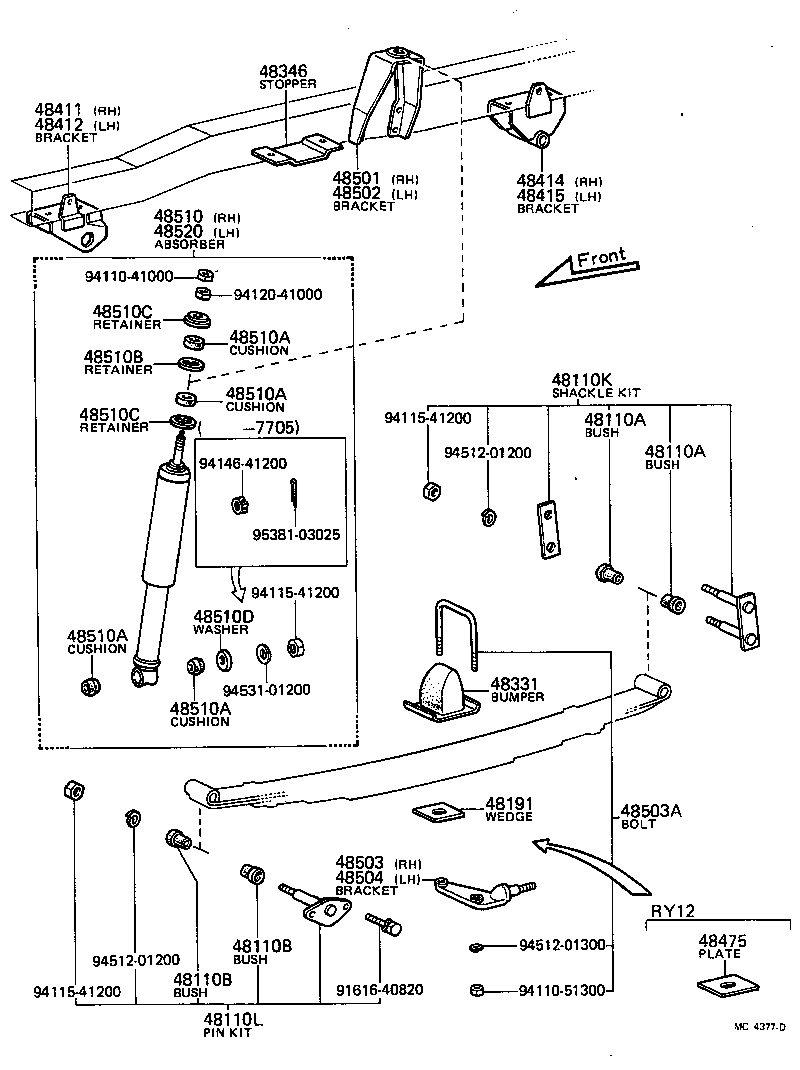

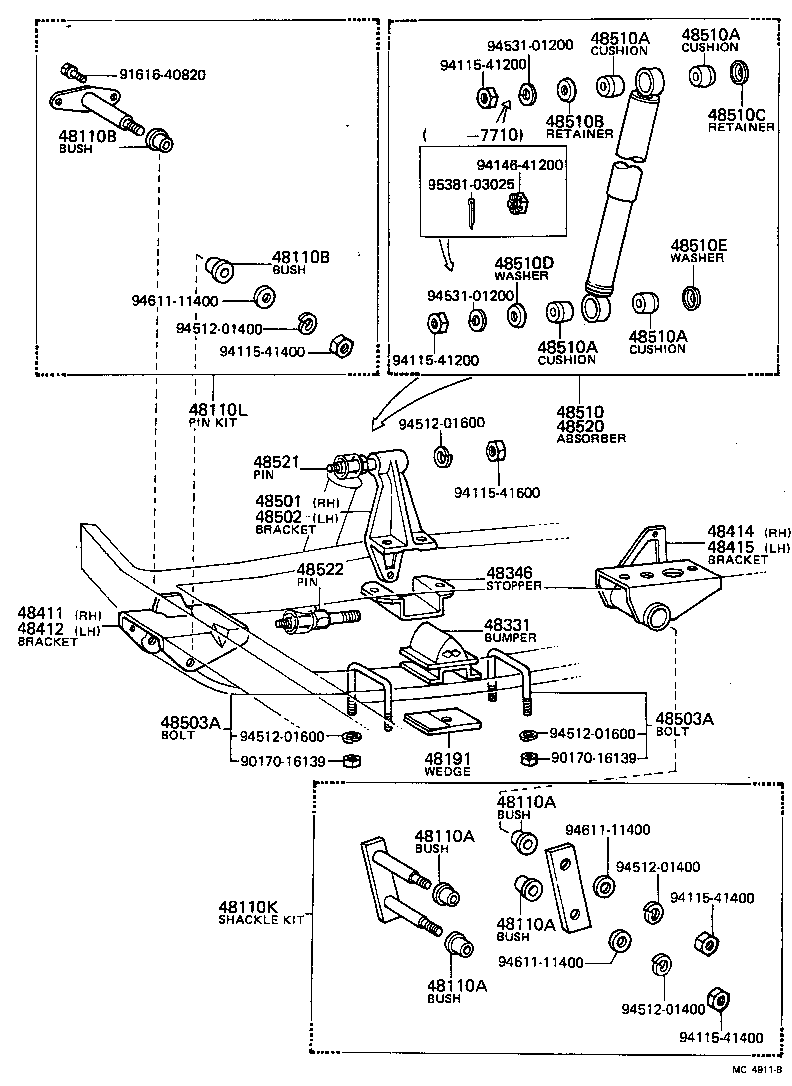

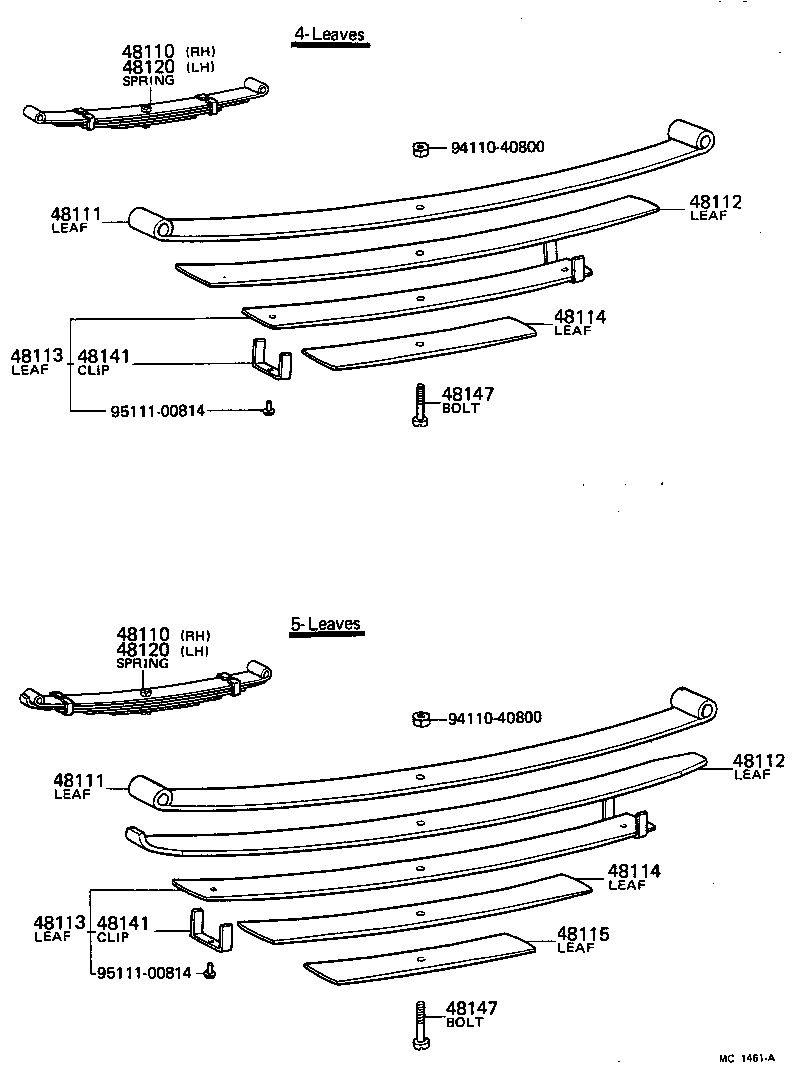

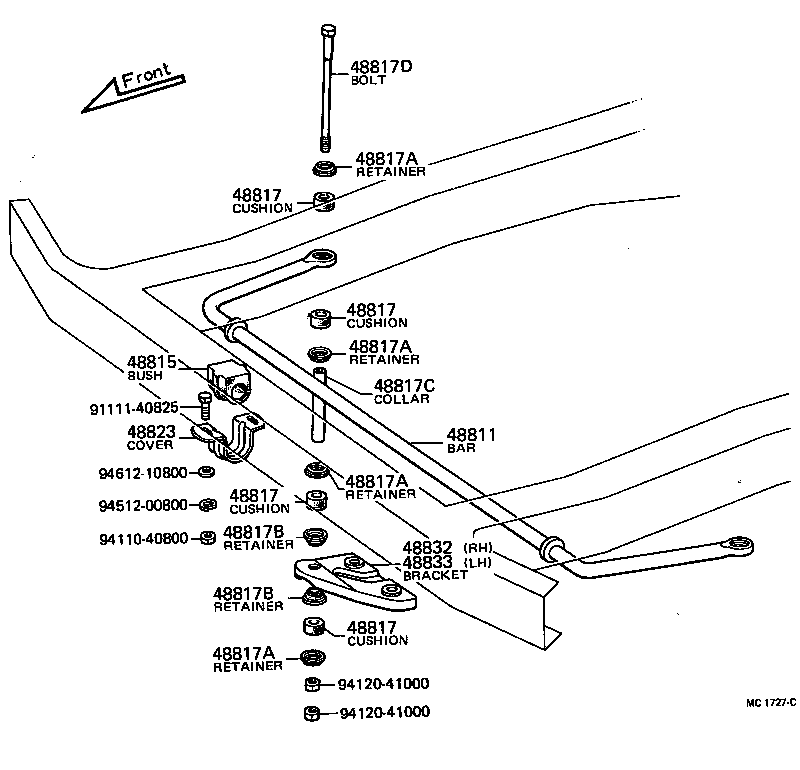

Figure MC4378 MC4378 1971-09 → 1979-02 Figure MC1727C MC1727C 1972-07 → 1979-02 Figure MC4377D MC4377D 1971-09 → 1979-02 Figure MC4911B MC4911B 1972-07 → 1979-02 Figure MC1461A MC1461A 1971-09 → 1979-02 Figure MC1962B MC1962B 1972-07 → 1979-02

Part groups

PNCDescription
48110 Spring Assy, Front, RH
48110A Bush(FOR FRONT SPRING SHACKLE)
48110B Bush(FOR FRONT SPRING PIN)
48110K Shackle Kit, Front Spring
48110L Pin Kit, Front Spring
48111 Leaf, Front Spring, NO.1
48112 Leaf, Front Spring, NO.2
48113 Leaf, Front Spring, NO.3
48114 Leaf, Front Spring, NO.4
48115 Leaf, Front Spring, NO.5
48120 Spring Assy, Front, LH
48141 Clip, Front Spring, NO.1
48142 Clip, Front Spring, NO.2
48147 Bolt, Front Spring, Center
48191 Wedge, Caster(FOR FRONT LEAF SPRING)
48331 Bumper, Front Spring, NO.1
48346 Stopper, Bumper, Front
48411 Bracket, Front Spring(FOR FRONT RH)
48412 Bracket, Front Spring(FOR FRONT LH)
48414 Bracket, Front Spring(FOR REAR RH)
48415 Bracket, Front Spring(FOR REAR LH)
48475 Plate, Distance(FOR FRONT)
48501 Bracket Sub-assy, Front Shock Absorber, Upper RH
48502 Bracket Sub-assy, Front Shock Absorber, Upper LH
48503 Bracket Sub-assy, Front Shock Absorber, Lower RH
48503A Bolt, U(FOR FRONT SHOCK ABSORBER BRACKET)
48504 Bracket Sub-assy, Front Shock Absorber, Lower LH
48510 Absorber Assy, Shock, Front RH
48510A Cushion, Front Shock Absorber
48510B Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510C Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
48510D Washer, Front Shock Absorber Cushion, NO.1
48510E Washer, Front Shock Absorber Cushion, NO.2
48520 Absorber Assy, Shock, Front LH
48521 Pin, Front Shock Absorber Upper Pivot
48522 Pin, Front Shock Absorber Lower Pivot
48811 Bar, Stabilizer, Front
48815 Bush, Front Stabilizer Bar, NO.1
48817 Cushion, Front Stabilizer
48817A Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR)
48817B Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR)
48817C Collar(FOR STABILIZER BAR)
48817D Bolt(FOR FRONT STABILIZER)
48823 Cover, Stabilizer Link(FOR FRONT)
48832 Bracket, Front Stabilizer, Lower RH
48833 Bracket, Front Stabilizer, Lower LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
