Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

45 part groups · 6 illustrations

Illustrations

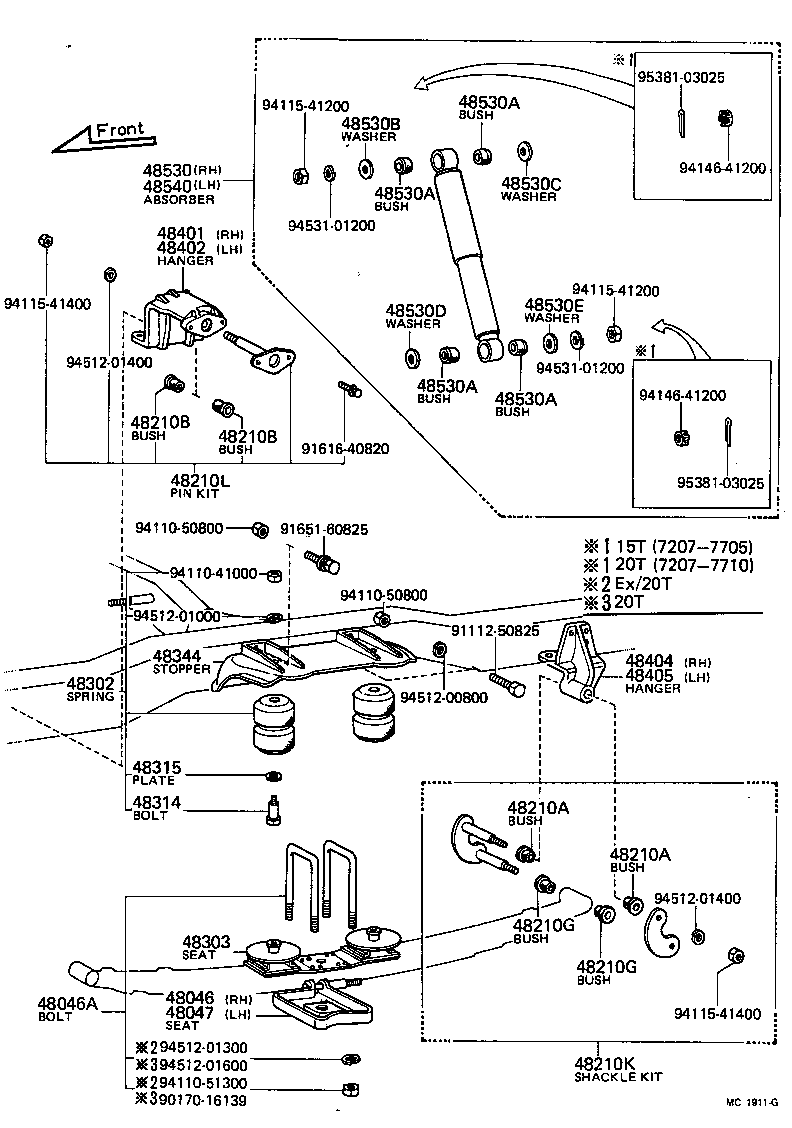

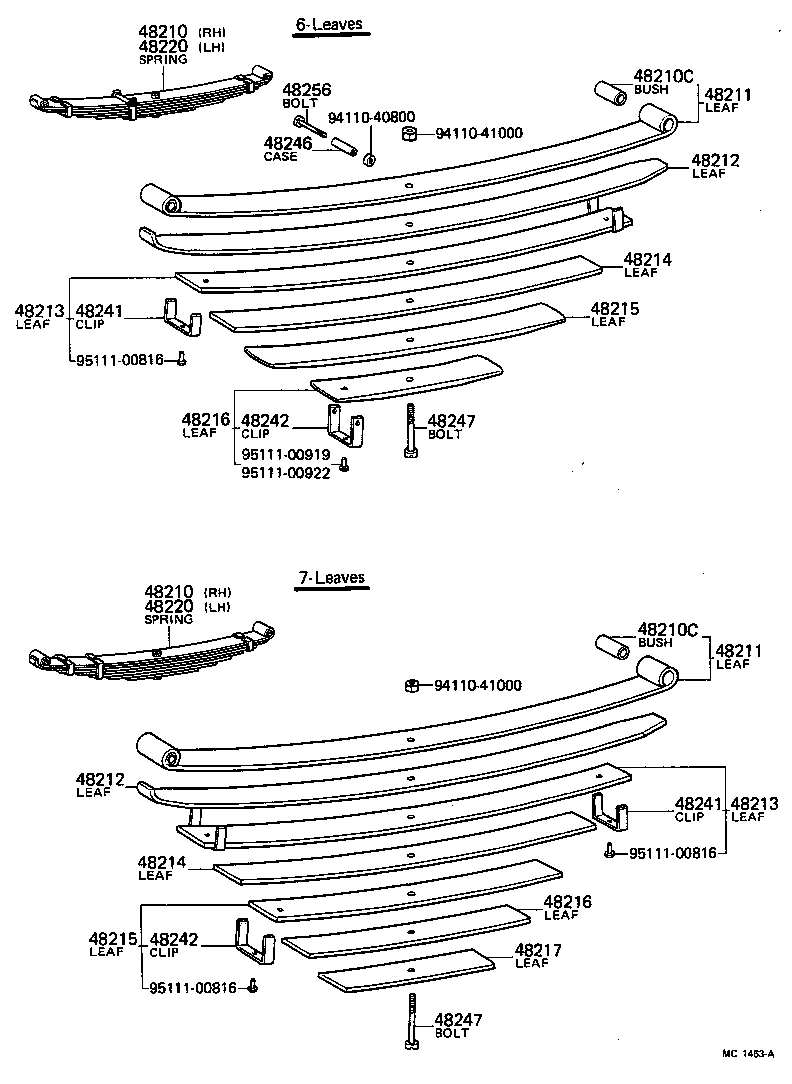

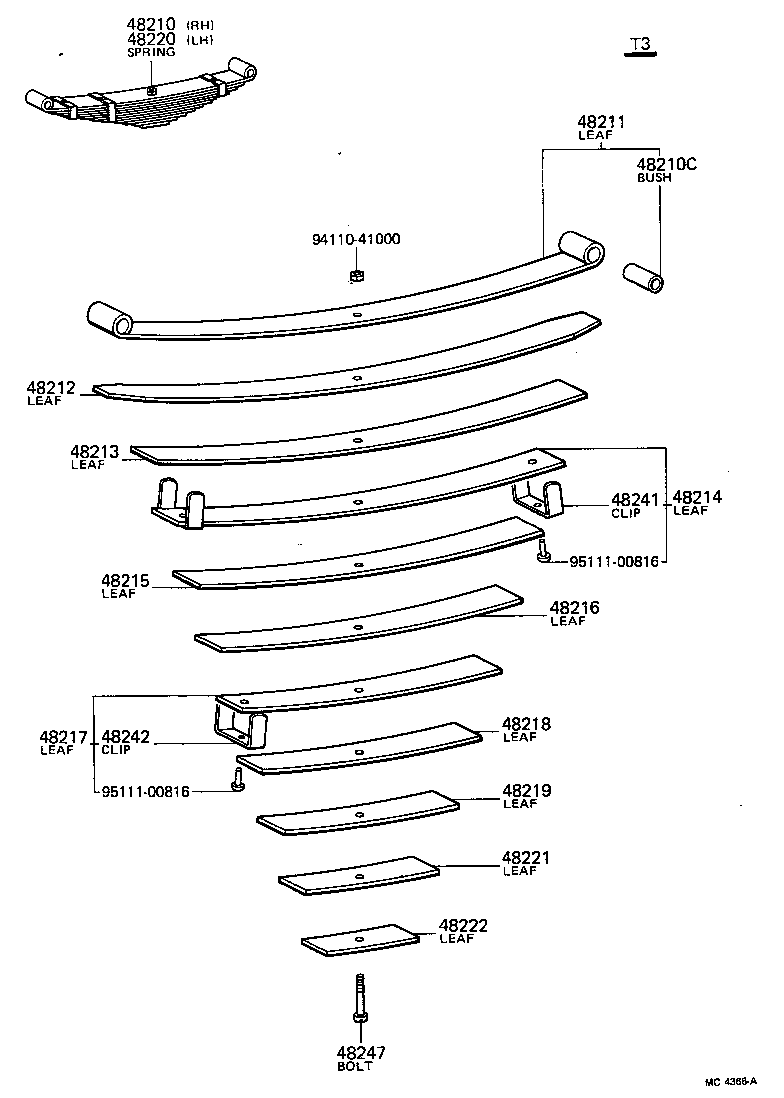

Figure MC1462H MC1462H 1971-09 → 1979-02 Figure MC1911G MC1911G 1972-07 → 1979-02 Figure MC1463A MC1463A 1971-09 → 1979-02 Figure MC3571A MC3571A 1975-12 → 1979-02 Figure MC4367 MC4367 1972-07 → 1979-02 Figure MC4366A MC4366A 1972-07 → 1979-02

Part groups

PNCDescription
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210A Bush(FOR REAR SPRING SHACKLE UPPER)
48210B Bush(FOR REAR SPRING PIN)
48210C Bush(FOR REAR SPRING LEAF)
48210G Bush(FOR REAR SPRING SHACKLE LOWER)
48210K Shackle Kit, Rear Spring
48210L Pin Kit, Rear Spring
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48216 Leaf, Rear Spring, NO.6
48217 Leaf, Rear Spring, NO.7
48218 Leaf, Rear Spring, NO.8
48219 Leaf, Rear Spring, NO.9
48220 Spring Assy, Rear LH
48221 Leaf, Rear Spring, NO.10
48222 Leaf, Rear Spring, NO.11
48241 Clip, Rear Spring, NO.1
48242 Clip, Rear Spring, NO.2
48246 Case, Rear Spring Clip Bolt
48247 Bolt, Rear Spring, Center
48256 Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48302 Spring Sub-assy, Hollow
48303 Seat Sub-assy, Hollow Spring
48306 Bumper Sub-assy, Rear Spring
48314 Bolt, Hollow Spring Set
48314A Nut, Hexagon(FOR HOLLOW SPRING SET)
48315 Plate, Hollow Spring Set
48344 Stopper, Bumper, Rear
48401 Bracket Sub-assy, Rear Spring, Front RH
48402 Bracket Sub-assy, Rear Spring, Front LH
48404 Bracket Sub-assy, Rear Spring, Rear RH
48405 Bracket Sub-assy, Rear Spring, Rear LH
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530B Washer, Rear Shock Absorber Cushion, NO.1
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530D Washer, Rear Shock Absorber Cushion, NO.3
48530E Washer, Rear Shock Absorber Cushion, NO.4
48540 Absorber Assy, Shock, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
