Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

17 part groups · 3 illustrations

Illustrations

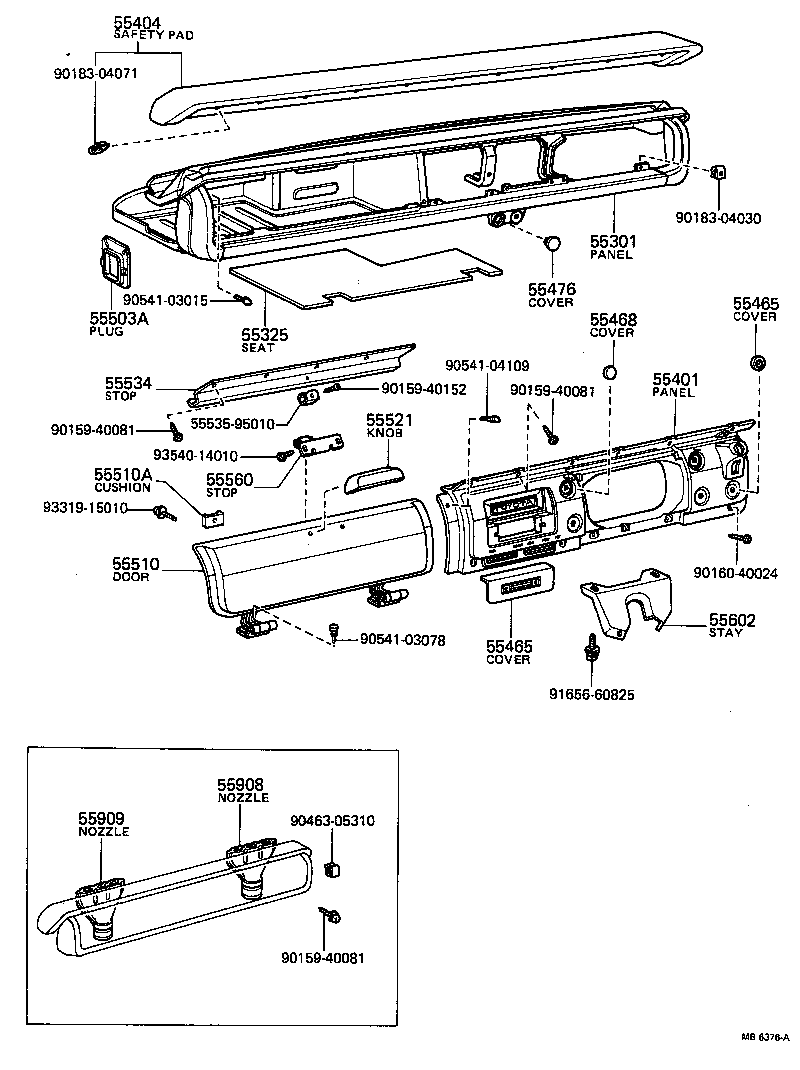

Figure MB2058E MB2058E 1971-09 → 1976-11 Figure MB2058E MB2058E 1971-09 → 1979-02 Figure MB6376A MB6376A 1976-11 → 1979-02

Part groups

PNCDescription
55301 Panel Sub-assy, Instrument
55325 Sheet, Glove Compartment
55326 Protector, Glove Compartment
55401 Panel Sub-assy, Instrument Cluster Finish
55404 Safety Pad Sub-assy, Instrument Panel, Upper
55465 Cover, Instrument Hole
55468 Cover, Heater Switch Hole
55476 Cover, Cigarette Lighter Hole
55503A Plug(FOR GLOVE COMPARTMENT)
55510 Door Assy, Glove Compartment
55510A Cushion(FOR GLOVE COMPARTMENT DOOR)
55521 Knob, Glove Compartment Door
55534 Stop, Glove Compartment Door
55560 Stop Sub-assy, Glove Compartment Door
55602 Stay Sub-assy, Steering Column, Upper
55908 Nozzle Sub-assy, Defroster, RH
55909 Nozzle Sub-assy, Defroster, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
