Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

16 part groups · 3 illustrations

Illustrations

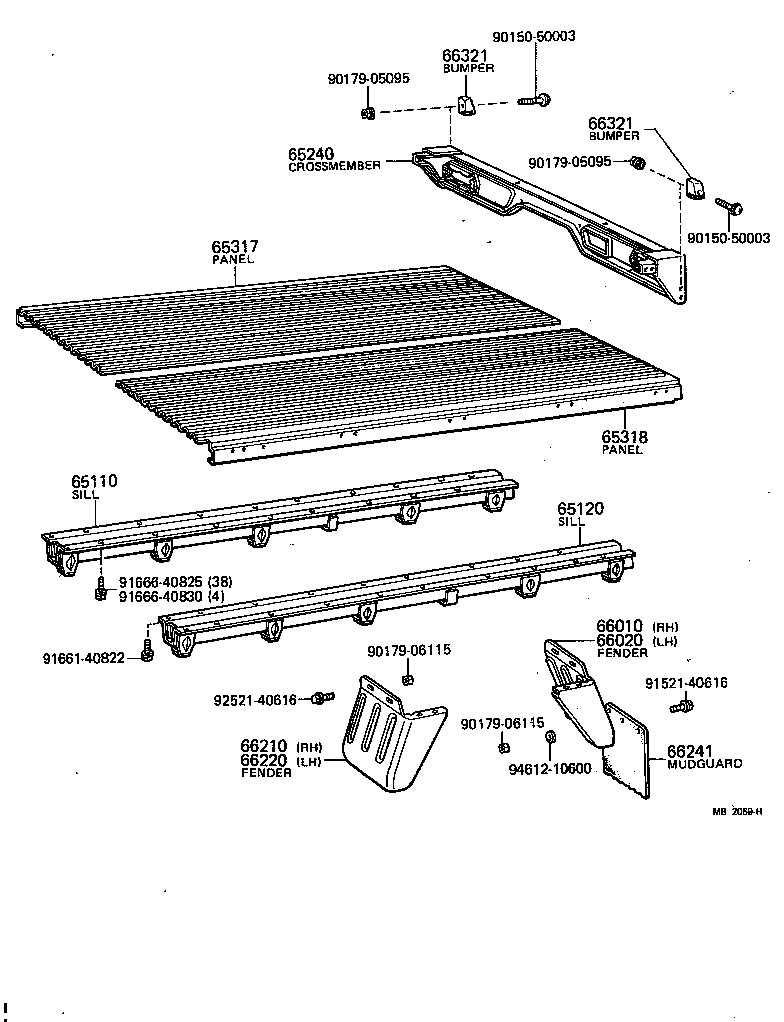

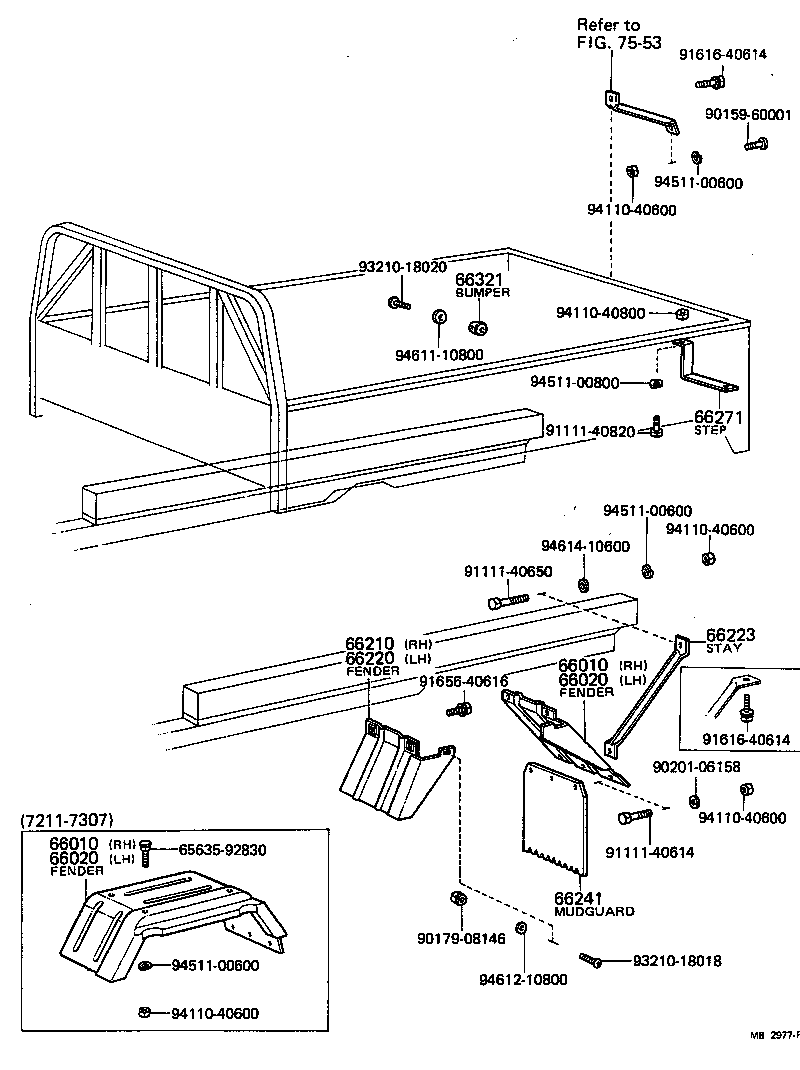

Figure MB5666B MB5666B 1971-09 → 1979-02 Figure MB2069H MB2069H 1971-09 → 1979-02 Figure MB2977F MB2977F 1975-12 → 1979-02

Part groups

PNCDescription
65110 Sill Assy, Main, RH
65120 Sill Assy, Main, LH
65240 Crossmember, Rear Body Floor, Tail
65311 Panel, Floor, Center
65317 Panel, Floor Side, RH
65318 Panel, Floor Side, LH
66010 Fender Assy, Rear Body, Rear RH
66020 Fender Assy, Rear Body, Rear LH
66210 Fender Assy, Rear Body, Front RH
66220 Fender Assy, Rear Body, Front LH
66223 Stay, Rear Fender Rear Plate
66225 Support, Rear Mudguard, RH
66226 Support, Rear Mudguard, LH
66241 Mudguard, Rear
66271 Step, Rear Body
66321 Bumper, Gate Rubber
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
