Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Guard Frame & Tail Gate

21 part groups · 3 illustrations

Illustrations

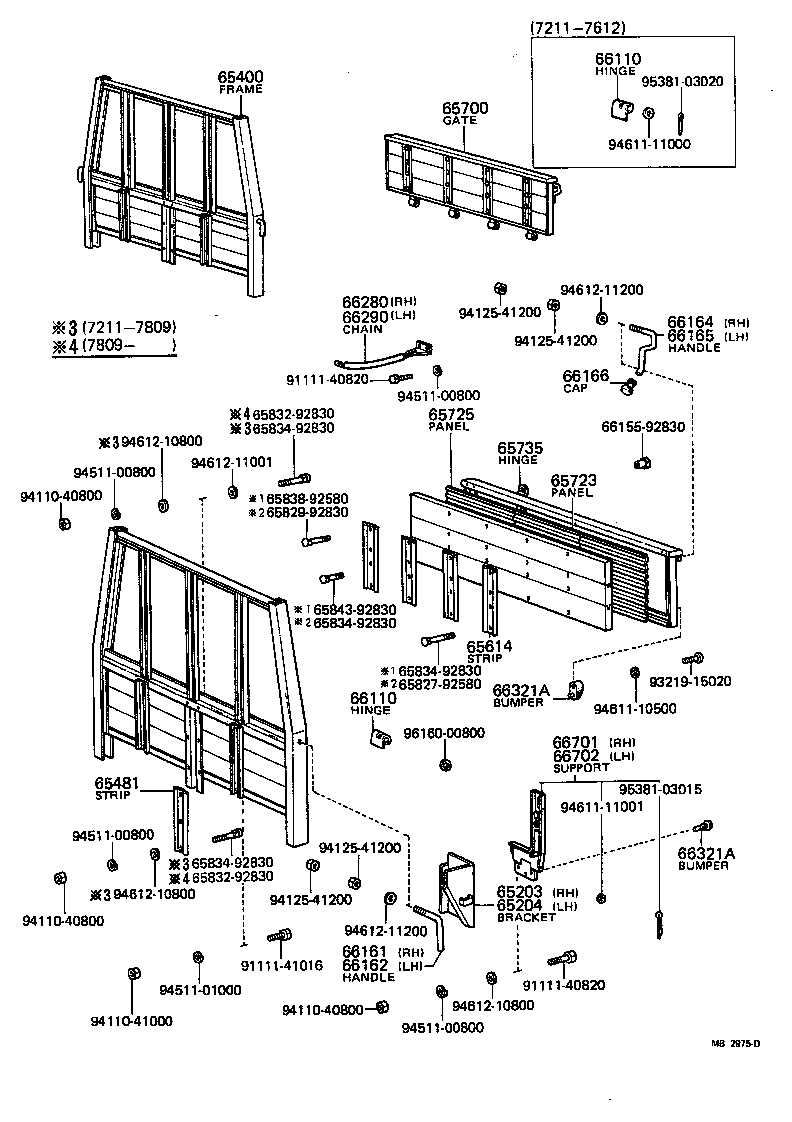

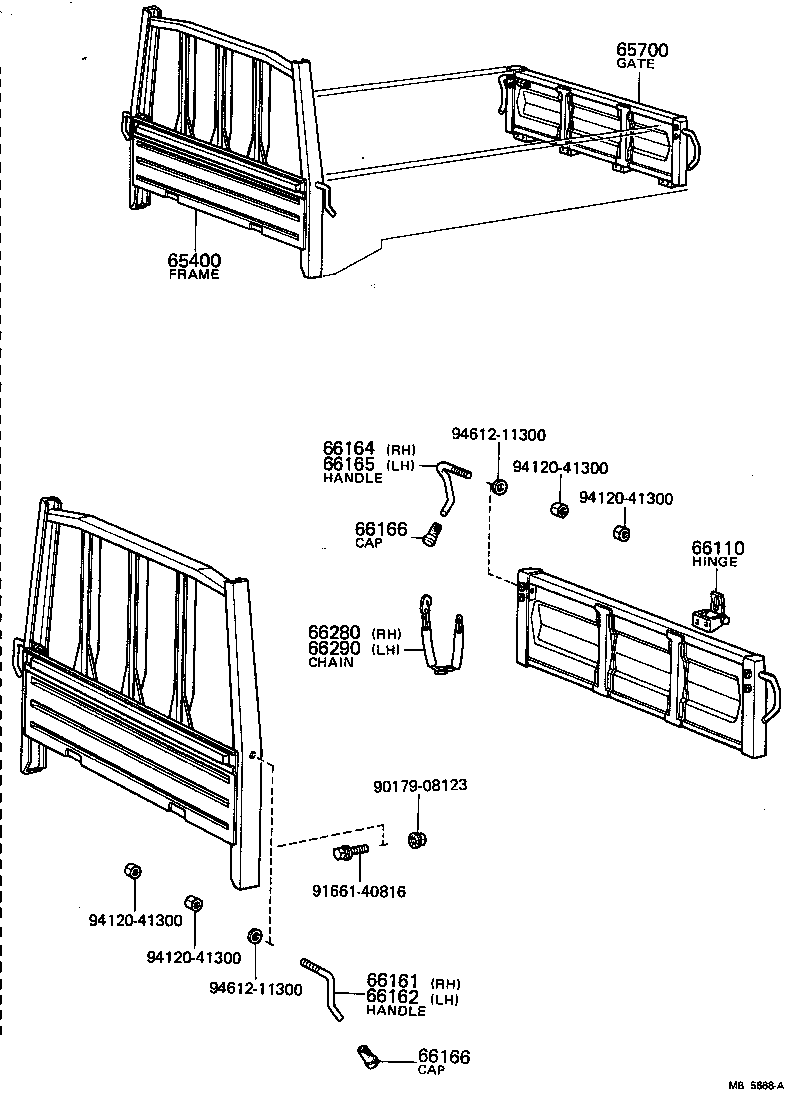

Figure MB5667 MB5667 1971-09 → 1979-02 Figure MB5668A MB5668A 1971-09 → 1979-02 Figure MB2975D MB2975D 1975-12 → 1979-02

Part groups

PNCDescription
65203 Bracket Sub-assy, Gate Bumper, RH
65204 Bracket Sub-assy, Gate Bumper, LH
65400 Frame Assy, Rear Body Guard
65481 Strip, Header Board, Inside
65614 Strip, Tail Gate Hinge, Inside
65700 Gate Assy, Rear Body Tail
65723 Panel, Tail Gate
65725 Panel, Tail Gate Side
65735 Hinge, Tail Gate Male
66110 Hinge Assy, Tail Gate
66161 Handle, Side Gate Latch, RH
66162 Handle, Side Gate Latch, LH
66164 Handle, Tail Gate Latch, RH
66165 Handle, Tail Gate Latch, LH
66166 Cap, Gate Latch Handle
66170 Latch Assy, Rear Body Tail Gate
66280 Chain Assy, Tail Gate, RH
66290 Chain Assy, Tail Gate, LH
66321A Bumper, Gate Rubber
66701 Support Sub-assy, Side Gate, RH
66702 Support Sub-assy, Side Gate, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
