Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

29 part groups · 4 illustrations

Illustrations

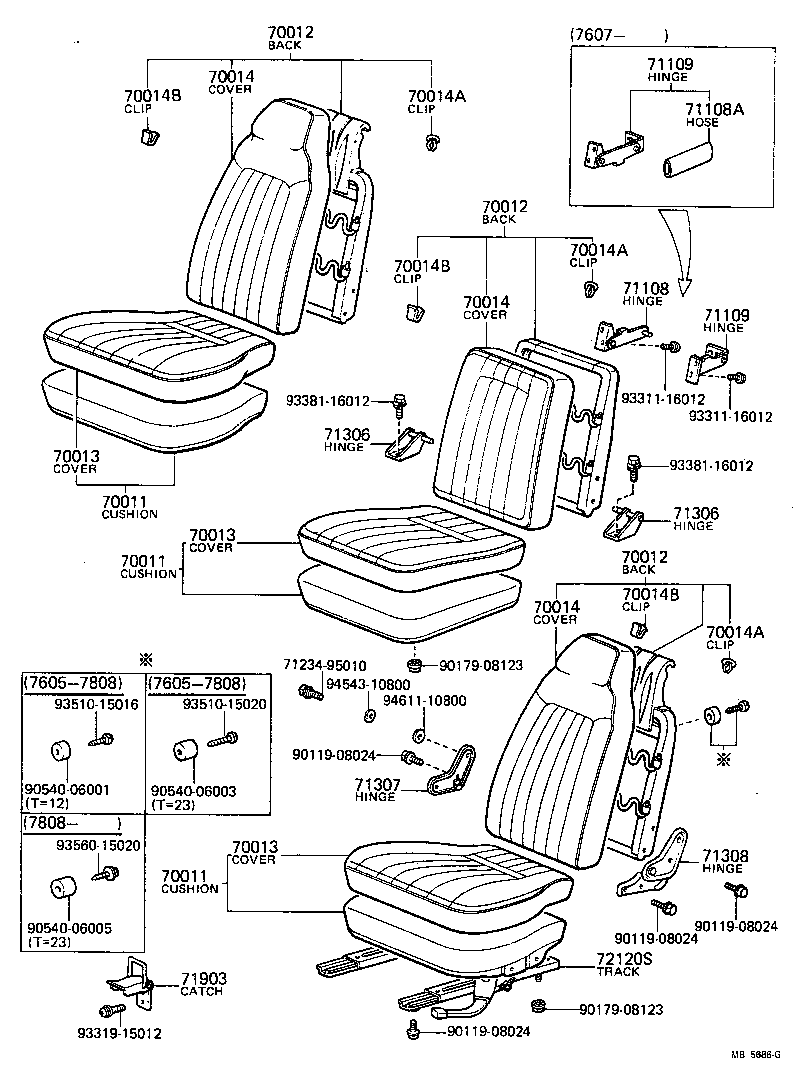

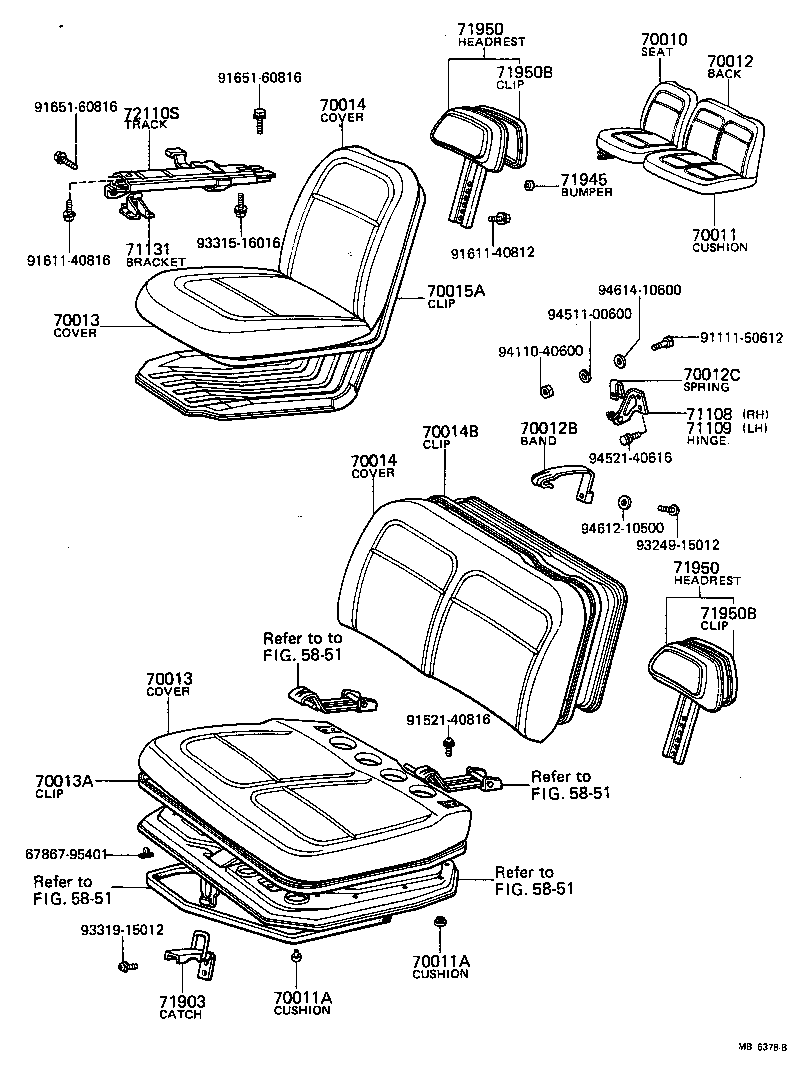

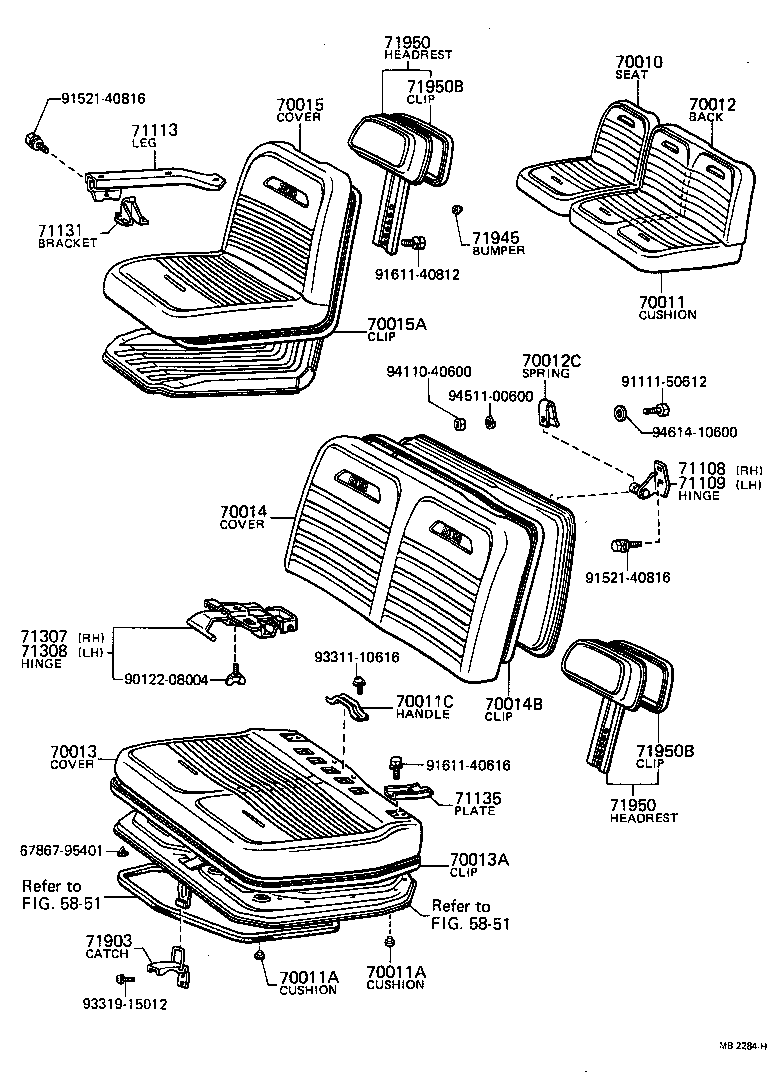

Figure MB2082I MB2082I 1971-09 → 1976-11 Figure MB6378B MB6378B 1976-11 → 1979-02 Figure MB2284H MB2284H 1971-09 → 1976-05 Figure MB5686G MB5686G 1976-05 → 1979-02

Part groups

PNCDescription
70010 Seat Assy, NO.1
70011 Cushion Assy, NO.1 Seat
70011A Cushion, Rubber (FOR SEAT CUSHION ASSY)
70011C Handle, Seat Cushion
70012 Back Assy, NO.1 Seat
70012B Band, Engine Service Hole Cover Support
70012C Spring(FOR SEATBACK)
70013 Cover Assy, NO.1 Seat Cushion
70013A Clip, Leather (FOR SEAT CUSHION COVER)
70014 Cover Assy, NO.1 Seatback
70014A Clip, Spring, NO.1
70014B Clip, Leather(FOR SEATBACK COVER)
70015 Cover Assy, NO.1 Seat
70015A Clip, Leather (FOR SEAT COVER)
71108 Hinge Sub-assy, Front Seatback, Upper RH
71108A Hose, Center Seatback Upper Hinge
71109 Hinge Sub-assy, Front Seatback, Upper LH
71113 Leg, Front Seat Cushion, RH
71131 Bracket, Front Seat Set, Outer RH
71135 Plate, Seat Cushion Set
71306 Hinge Sub-assy, Center Seatback Lower
71307 Hinge Sub-assy, Driver Seat, RH
71308 Hinge Sub-assy, Driver Seat, LH
71903 Catch Sub-assy, Seat Cushion, Front
71945 Bumper, Seatback
71950 Headrest Assy, Front Seat
71950B Clip (FOR HEADREST)
72110S Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72120S Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
