Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

11 part groups · 2 illustrations

Illustrations

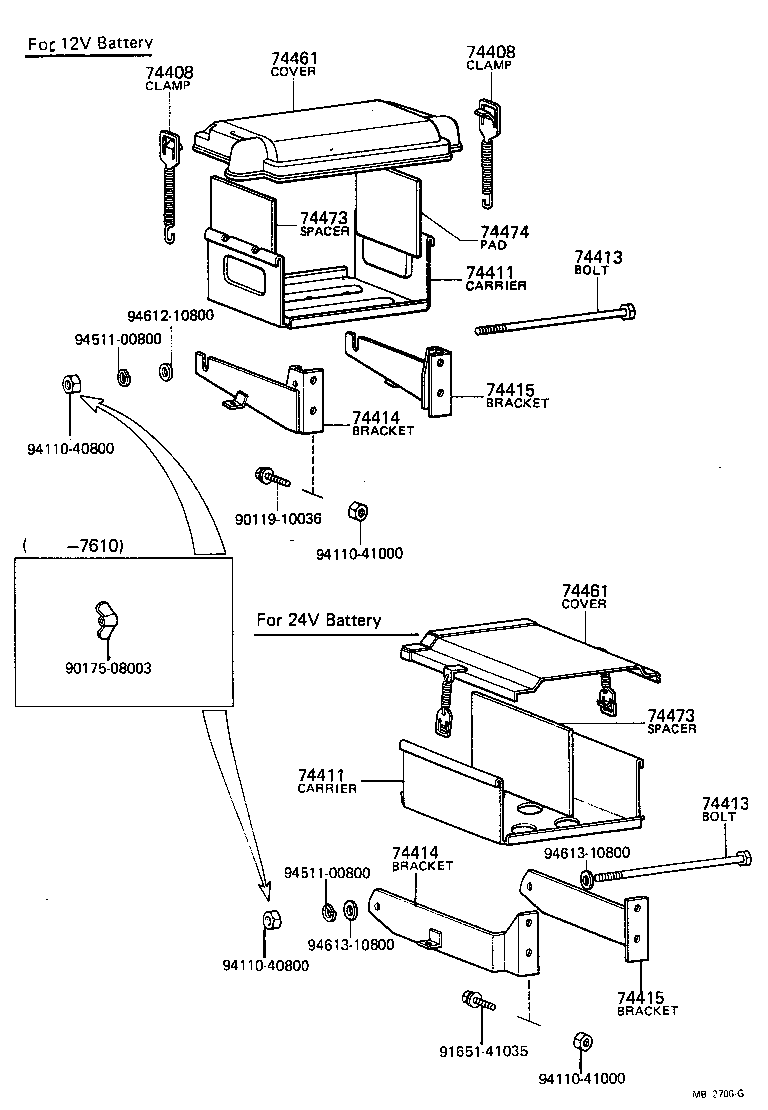

Figure MB8524 MB8524 1971-09 → 1979-02 Figure MB2706G MB2706G 1972-07 → 1979-02

Part groups

PNCDescription
74408 Clamp Sub-assy, Battery Cover
74411 Carrier, Battery
74413 Bolt, Battery Clamp
74414 Bracket, Battery, FR
74415 Bracket, Battery, Rear
74461 Cover, Battery
74471 Shim, Battery Set Angle
74472 Pad, Battery Side
74473 Spacer, Battery
74474 Pad, Battery
74481 Clamp, Battery Hold Down
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
