Toyota Toyoace
1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe
Discontinued model
Data version 1979-02

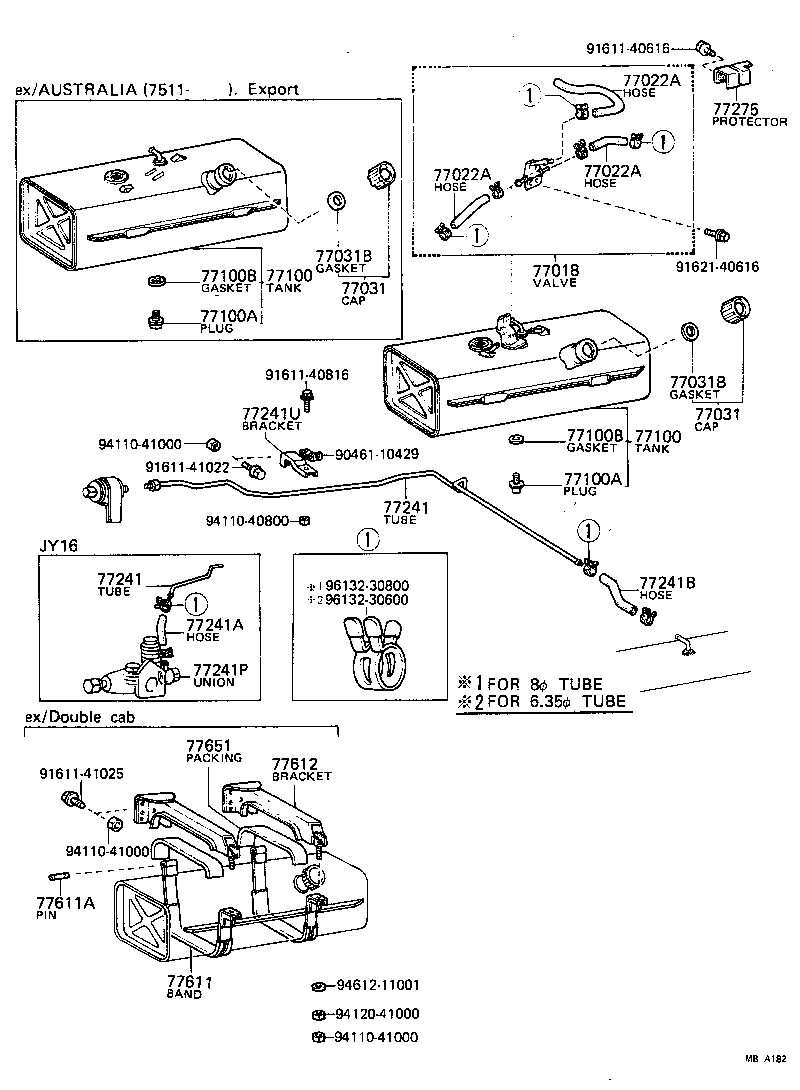

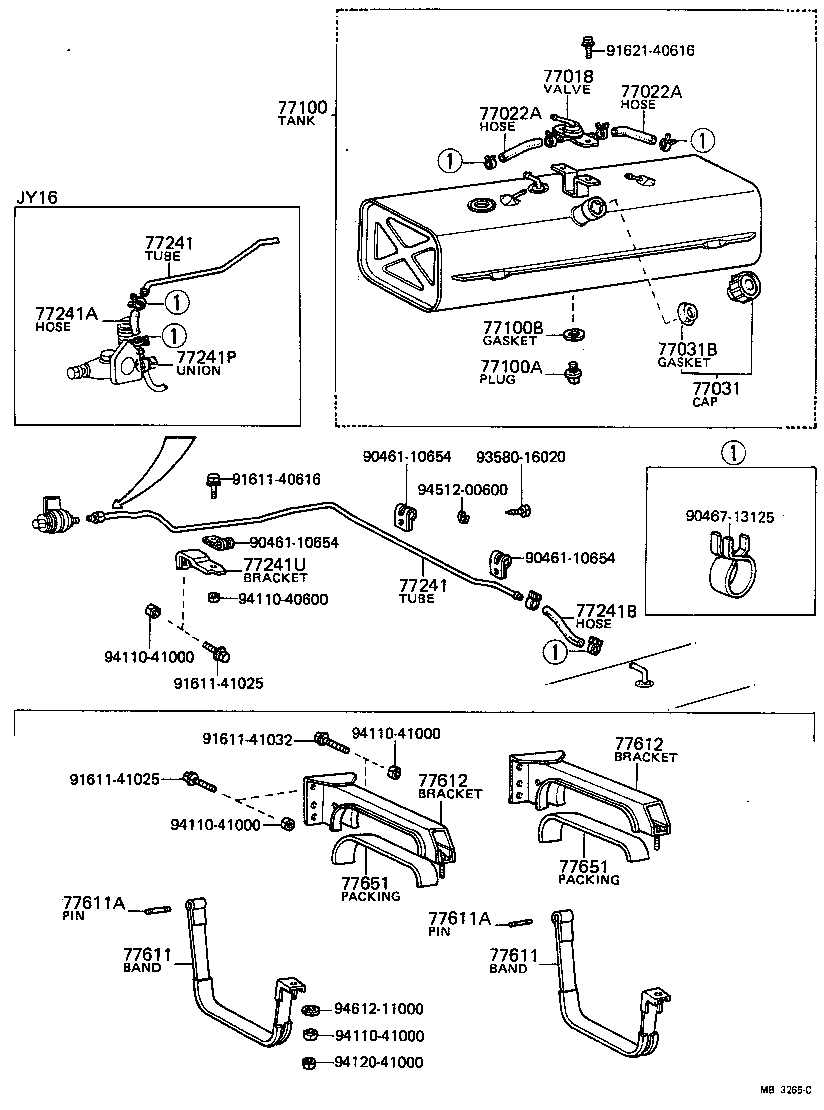

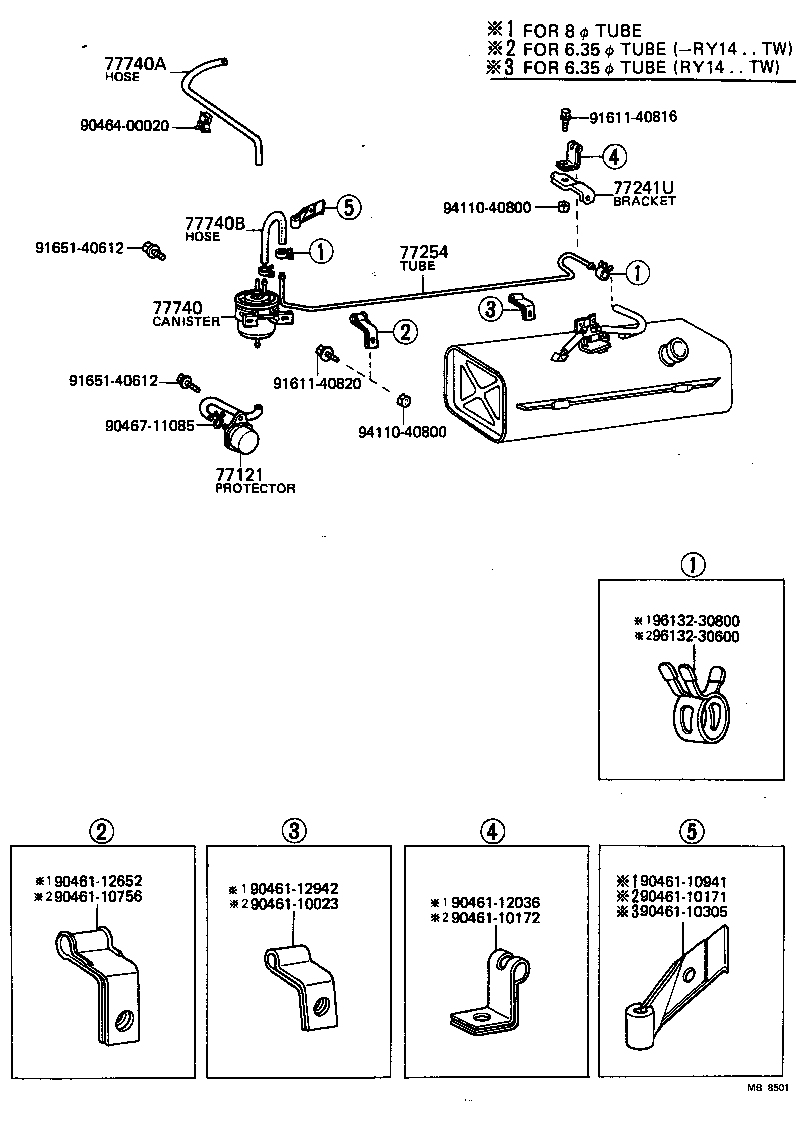

Fuel Tank & Tube
23 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 77018 | Valve Sub-assy, Fuel Vapour Separate |
| 77022A | Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77031 | Cap Assy, Fuel Tank |
| 77031B | Gasket (FOR FUEL TANK CAP) |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77121 | Protector, Fuel Tube |
| 77241 | Tube, Fuel Main, NO.1 |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77241B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1) |
| 77241P | Union, Fuel Front Tube Hose |
| 77241U | Bracket, Fuel Clamp |
| 77254 | Tube, Fuel Emission, NO.1 |
| 77275 | Protector, Fuel Evaporative Separator |
| 77611 | Band, Fuel Tank |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77612 | Bracket Sub-assy, Fuel Tank |
| 77614 | Seat, Fuel Tank Band |
| 77651 | Packing, Fuel Tank Bracket |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77740B | Hose, Fuel, NO.2(FOR CHARCOAL CANISTER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
