Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Turn Signal Lamp & Outer Mirror Lamp

11 part groups · 2 illustrations

Illustrations

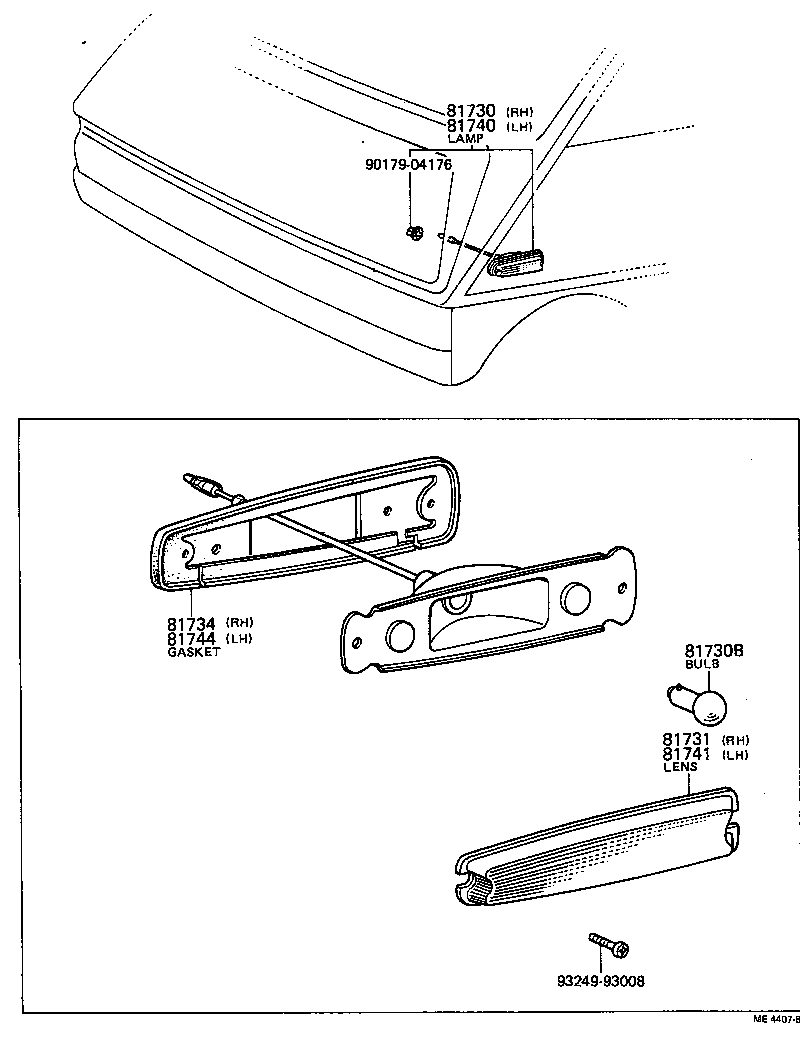

Figure ME1139B ME1139B 1971-09 → 1975-03 Figure ME4407B ME4407B 1975-03 → 1979-02

Part groups

PNCDescription
81730 Lamp Assy, Side Turn Signal, RH
81730B Bulb (FOR SIDE TURN SIGNAL LAMP)
81731 Lens, Side Turn Signal Lamp, RH
81732 Gasket, Side Turn Signal Lamp Lens, RH
81734 Gasket, Side Turn Signal Lamp Body, RH
81736 Rim, Side Turn Signal Lamp, RH
81740 Lamp Assy, Side Turn Signal, LH
81741 Lens, Side Turn Signal Lamp, LH
81742 Gasket, Side Turn Signal Lamp Lens, LH
81744 Gasket, Side Turn Signal Lamp Body, LH
81746 Rim, Side Turn Signal Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
