Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

9 part groups · 3 illustrations

Illustrations

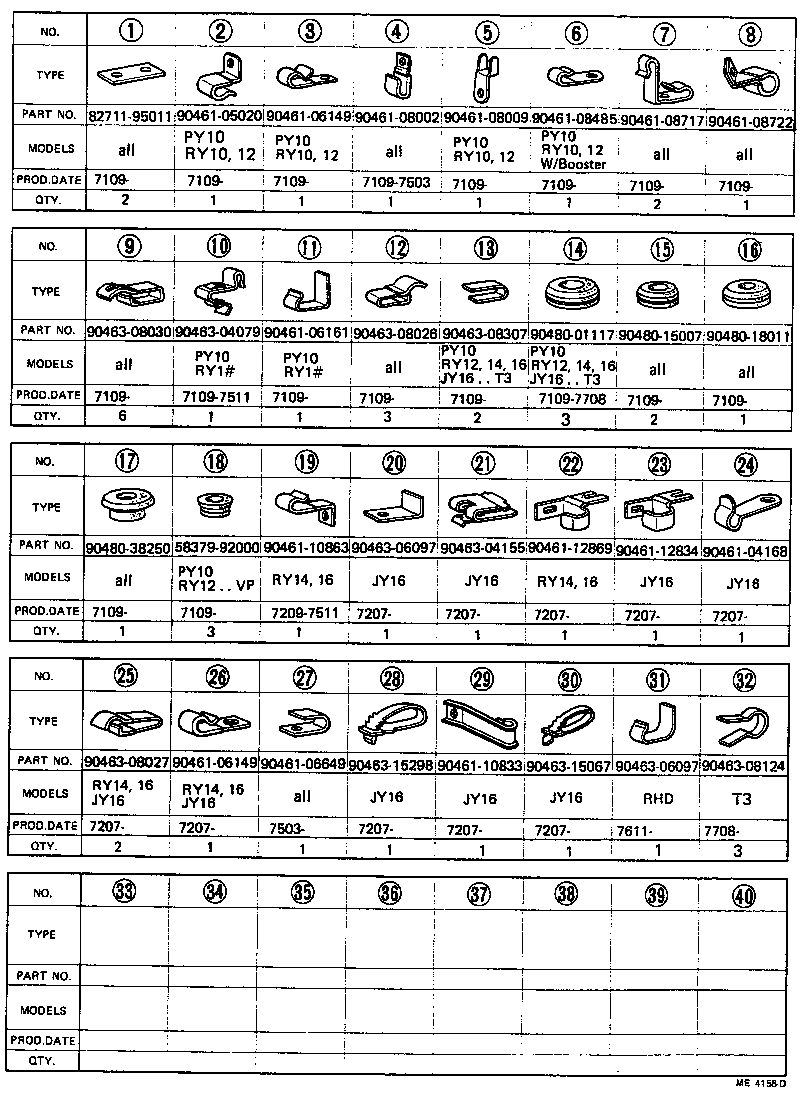

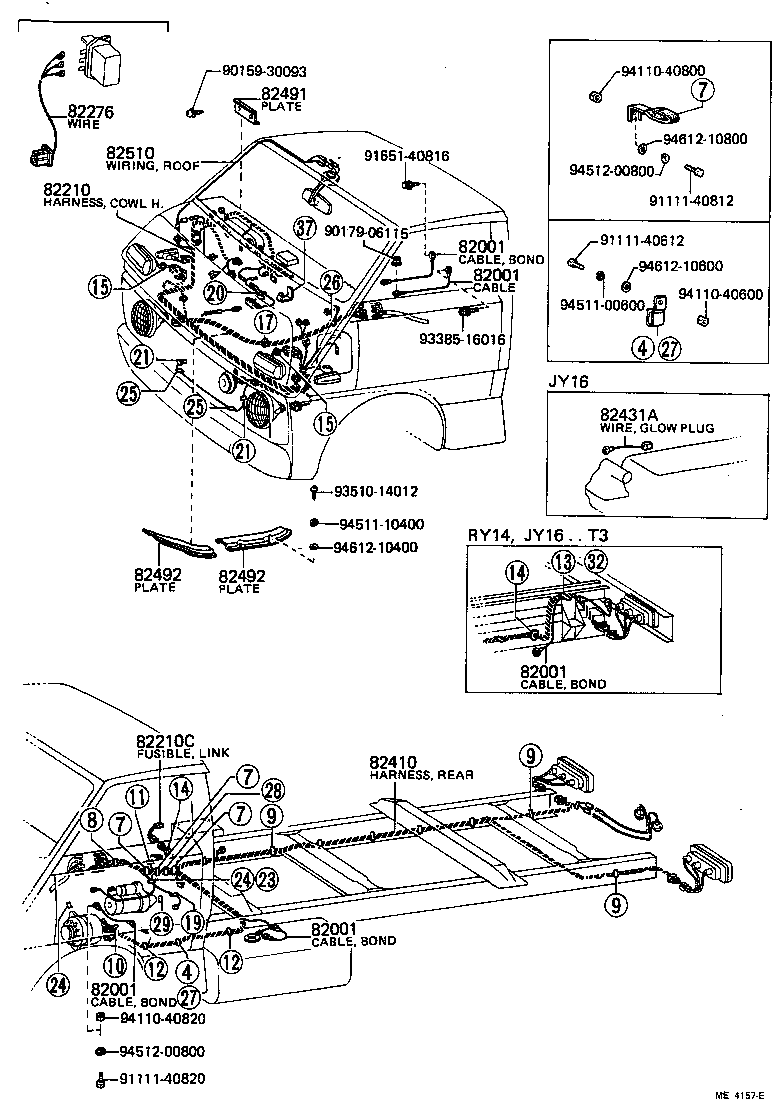

Figure ME4156F ME4156F 1971-09 → 1979-02 Figure ME4157E ME4157E 1971-09 → 1979-02 Figure ME4158D ME4158D 1971-09 → 1979-02

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82210 Harness Assy, Wiring Cowl TO Headlamp, NO.1
82210C Fusible Link
82276 Wire, Starter Relay
82410 Harness Assy, Wiring TO Rear Lamp
82431A Wire, Glow Plug
82491 Plate, Wiring Harness Protector, NO.1
82492 Plate, Wiring Harness Protector, NO.2
82510 Wiring Assy, Roof
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
