Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

6 part groups · 2 illustrations

Illustrations

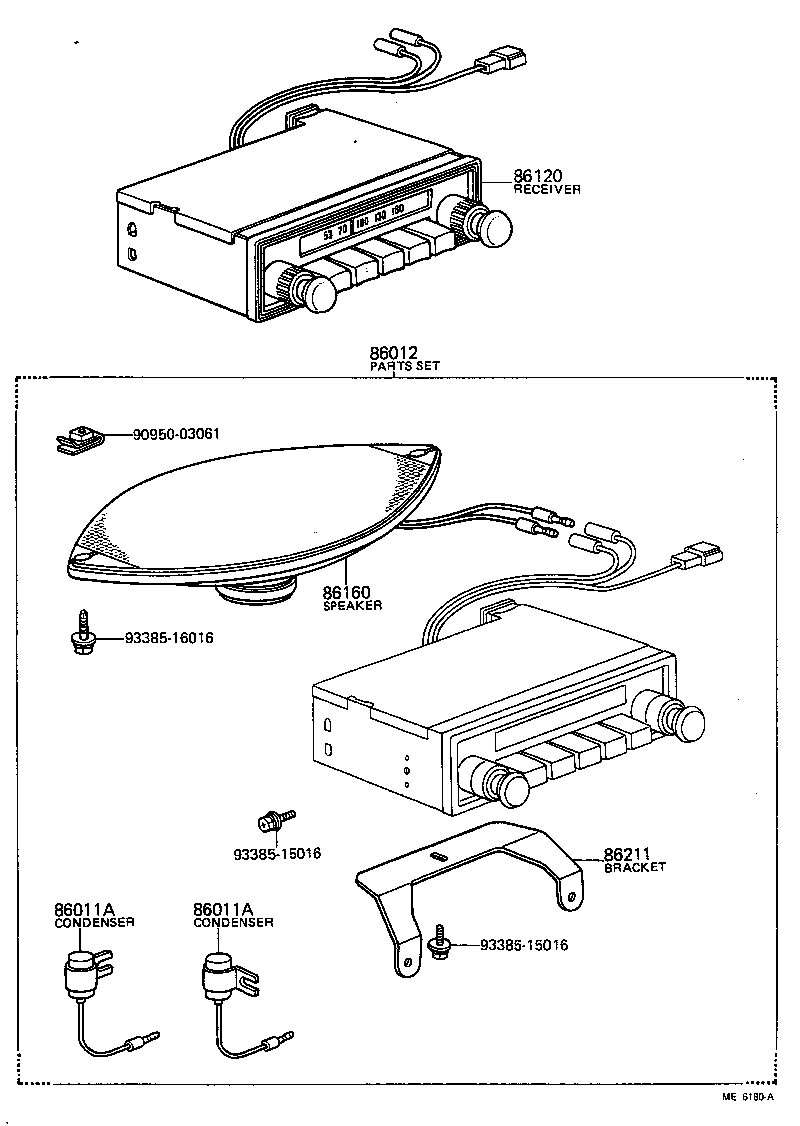

Figure ME6179A ME6179A 1971-09 → 1979-02 Figure ME6180A ME6180A 1975-03 → 1979-02

Part groups

PNCDescription
86011 Radio & Setting Parts Set
86011A Condenser, Radio Setting
86012 Parts Set, Radio Setting
86120 Receiver Assy, Radio
86160 Speaker Assy, Front NO.1
86211 Bracket, Radio, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
