Toyota Toyoace

1971-09 → 1979-02 · chassis RY1#,JY16 · catalogue 731220 · Europe

Discontinued model Data version 1979-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

14 part groups · 3 illustrations

Illustrations

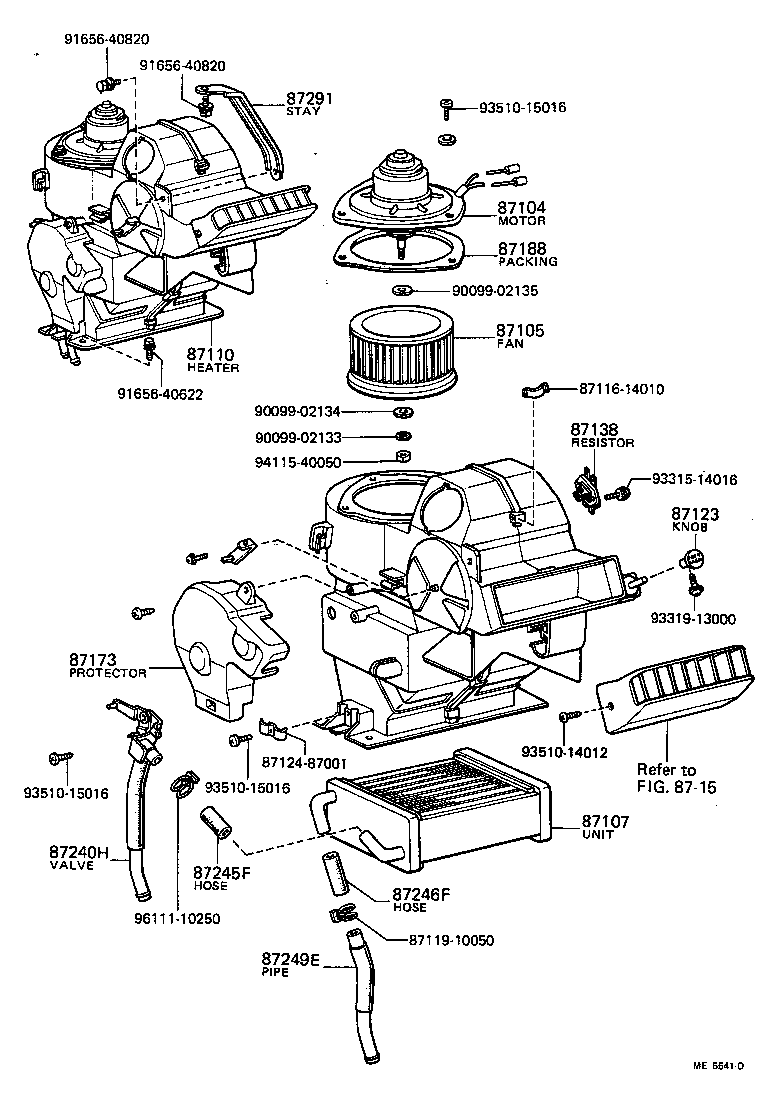

Figure ME1945D ME1945D 1971-09 → 1976-11 Figure ME1945D ME1945D 1976-11 → 1979-02 Figure ME5541D ME5541D 1976-11 → 1979-02

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87110 Heater Assy
87123 Knob, Heater
87138 Resistor, Heater Blower
87173 Protector, Water Valve, Heater
87188 Packing, Heater Blower Motor
87240H Valve Assy, Water Unit
87245F Hose, Heater Water, Inlet F
87246F Hose, Heater Water, Outlet F
87249E Pipe, Heater Water Outlet, E (FOR HEATER UNIT)
87291 Stay, Heater
87337 Adapter, Heater Blower Motor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
