Toyota Toyoace
1979-03 → 1985-07 · chassis RY20,3#,LY20,3#,JY30 · catalogue 731230 · Europe
Discontinued model
Data version 1986-05

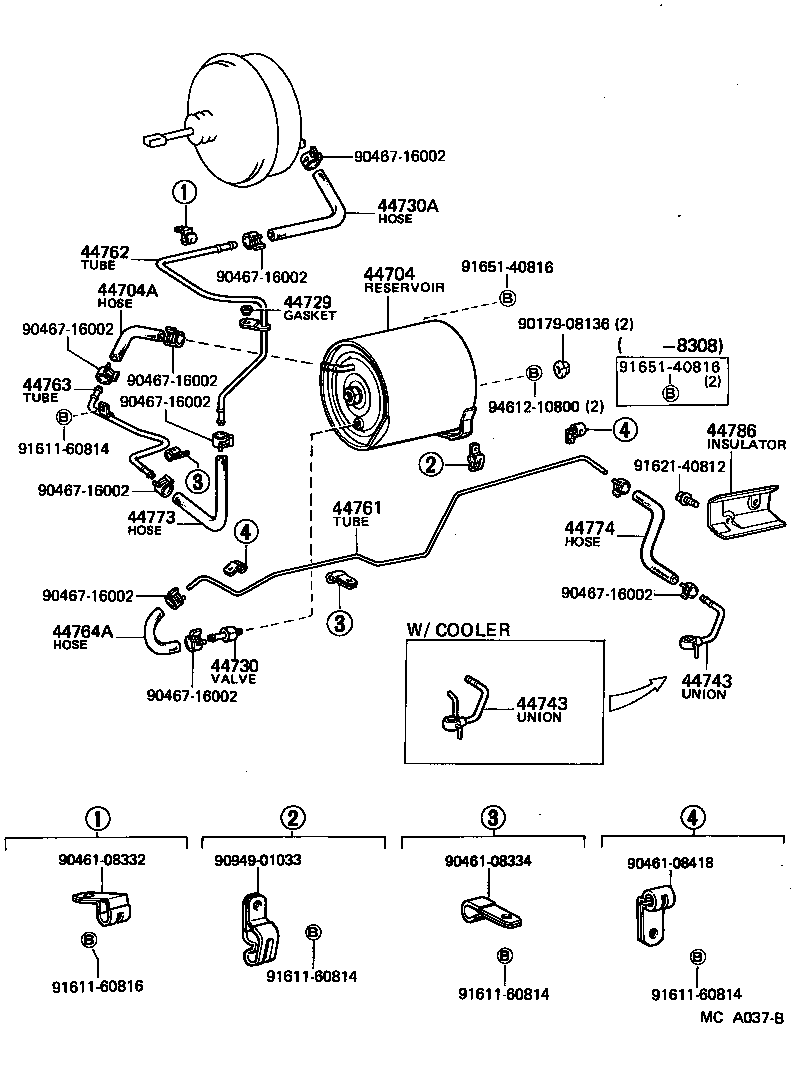

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44704 — Reservoir Sub-assy, Vacuum | ||||
| 44704-25020 |
Reservoir Sub-assy, Vacuum
1979-03 → 1980-04
ended
|
JY30,LY20,30 | — | |
| 44704-25021 |
Reservoir Sub-assy, Vacuum
1980-04 → 1983-08
ended
|
LY20,30 | — | |
| 44704-25030 |
Reservoir Sub-assy, Vacuum
1980-04 → 1983-08
ended
|
JY30 | — | |
| 44704-25041 |
Reservoir Sub-assy, Vacuum
1983-08 → 1985-07
ended
|
LY31 | — | |
| 44704A — Hose(FOR VACUUM RESERVOIR) | ||||
| 44774-26030 |
Hose(FOR VACUUM RESERVOIR)
1983-08 → 1985-07
ended
|
LY31 | — | |
| 44729 — Gasket, Vacuum Tube | ||||
| 44729-25010 |
Gasket, Vacuum Tube
1979-03 → 1985-07
ended
|
JY30,LY20,3#,RY20,3# | — | |
| 44730 — Valve Assy, Vacuum Check(FOR BRAKE) | ||||
| 44730-20060 |
Valve Assy, Vacuum Check(FOR BRAKE)
1979-03 → 1985-07
ended
|
RY20,3# 125,15T | — | |
| 44730-22090 |
Valve Assy, Vacuum Check(FOR BRAKE)
1979-03 → 1985-07
ended
|
RY31 20T | — | |
| 44730-60040 |
Valve Assy, Vacuum Check(FOR BRAKE)
1979-03 → 1985-07
ended
|
JY30,LY20,3# | — | |
| 44730A — Hose, Vacuum, NO.1 | ||||
| 44776-25010 |
Hose, Vacuum, NO.1
1979-03 → 1985-07
ended
|
JY30,LY20,3#,RY20,3# | — | |
| 44743 — Union(FOR VACUUM PUMP) | ||||
| 90405-09007 |
Union(FOR VACUUM PUMP)
1979-03 → 1983-08
ended
|
JY30 | — | |
| 90405-09013 |
Union(FOR VACUUM PUMP)
1979-03 → 1982-01
ended
|
LY20,30 | — | |
| 90405-09060 |
Union(FOR VACUUM PUMP)
1982-01 → 1983-08
ended
|
LY30 | — | |
| 90405-09077 |
Union(FOR VACUUM PUMP)
1983-08 → 1985-07
ended
|
LY31 | — | |
| 44761 — Tube, Intake Manifold OR Vacuum Pump TO Connector | ||||
| 44761-25050 |
Tube, Intake Manifold OR Vacuum Pump TO Connector
1979-03 → 1983-08
ended
|
JY30 | — | |
| 44764-25030 |
Tube, Intake Manifold OR Vacuum Pump TO Connector
1979-03 → 1983-08
ended
|
LY20,30 | — | |
| 44764-25040 |
Tube, Intake Manifold OR Vacuum Pump TO Connector
1979-03 → 1985-07
ended
|
RY20,3# | — | |
| 44764-25080 |
Tube, Intake Manifold OR Vacuum Pump TO Connector
1983-08 → 1985-07
ended
|
LY31 | — | |
| 44762 — Tube, Booster Vacuum | ||||
| 44762-25030 |
Tube, Booster Vacuum
1979-03 → 1985-07
ended
|
JY30,LY20,3#,RY20,3# RHD | — | |
| 44762-25040 |
Tube, Booster Vacuum
1979-03 → 1985-07
ended
|
JY30,RY20,3# LHD | — | |
| 44763 — Tube, Booster Vacuum | ||||
| 44673-25020 |
Tube, Booster Vacuum
1983-08 → 1985-07
ended
|
LY31 | — | |
| 44764A — Hose, Booster Vacuum | ||||
| 44772-25010 |
Hose, Booster Vacuum
1979-03 → 1983-08
ended
|
JY30 | — | |
| 44772-25020 |
Hose, Booster Vacuum
1979-03 → 1983-08
ended
|
LY20,30 | — | |
| 44774-26030 |
Hose, Booster Vacuum
1983-08 → 1985-07
ended
|
LY31 | — | |
| 90445-17927 |
Hose, Booster Vacuum
1979-03 → 1985-07
ended
|
RY20,3# | — | |
| 44773 — Hose, Vacuum, NO.2 | ||||
| 44771-25010 |
Hose, Vacuum, NO.2
1979-03 → 1983-08
ended
|
JY30,LY20,30 | — | |
| 90445-17927 |
Hose, Vacuum, NO.2
1983-08 → 1985-07
ended
|
LY31 | — | |
| 44774 — Hose, Union TO Connector Tube | ||||
| 44774-25010 |
Hose, Union TO Connector Tube
1979-03 → 1985-07
ended
|
RY20,30 | — | |
| 44774-25021 |
Hose, Union TO Connector Tube
1979-03 → 1985-07
ended
|
LY20,3# | — | |
| 44774-25030 |
Hose, Union TO Connector Tube
1979-03 → 1985-07
ended
|
RY31 | — | |
| 90445-17033 |
Hose, Union TO Connector Tube
1979-03 → 1982-11
ended
|
JY30 | — | |
| 95441-09220 |
Hose, Union TO Connector Tube
1982-11 → 1983-08
ended
|
JY30 | — | |
| 44786 — Insulator, Hose Heat | ||||
| 44786-26010 |
Insulator, Hose Heat
1979-09 → 1985-07
ended
|
LY20,3# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
