Toyota Toyoace
1979-03 → 1985-07 · chassis RY20,3#,LY20,3#,JY30 · catalogue 731230 · Europe
Discontinued model
Data version 1986-05

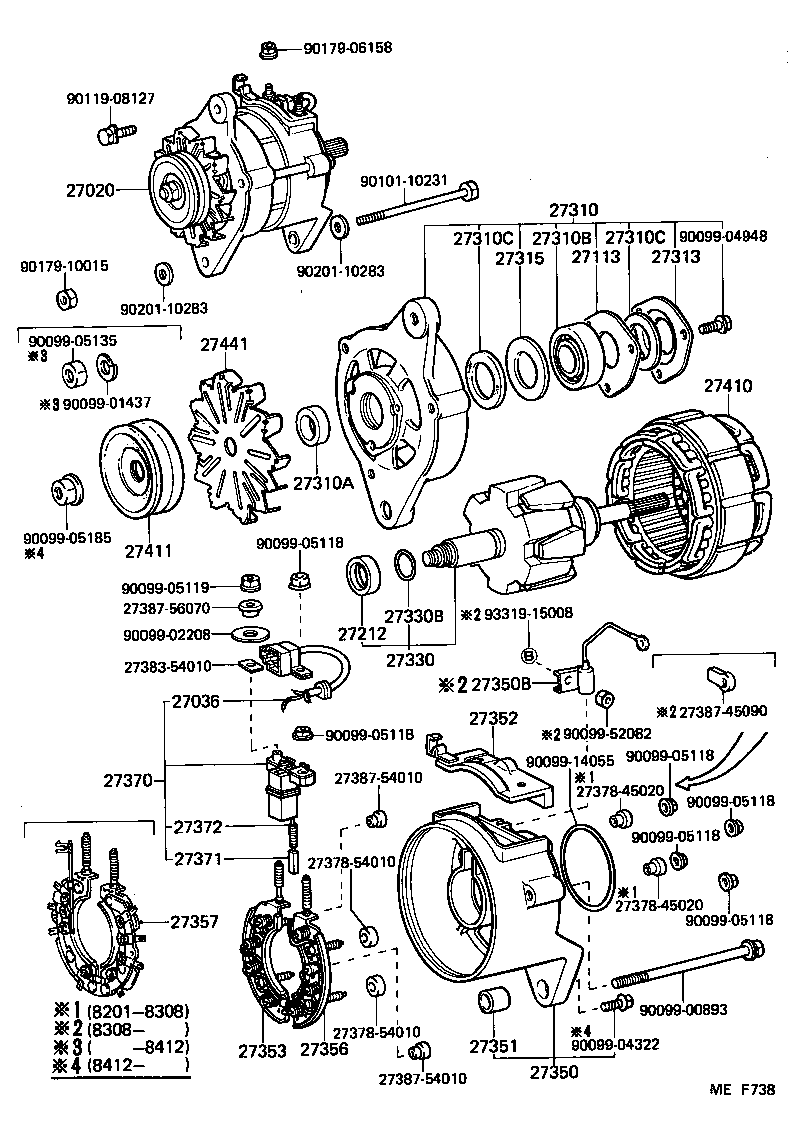

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 27020 — Alternator Assy | ||||
| 27020-31090 note |
Alternator Assy
1979-03 → 1985-07
ended
|
12R RY20,30 | — | |
| 27020-40065 note |
Alternator Assy
1979-03 → 1980-02
ended
|
5R RY31 | — | |
| 27020-44100 note |
Alternator Assy
1980-02 → 1985-07
ended
|
5R RY31 | — | |
| 27020-46033 note |
Alternator Assy
1979-03 → 1983-08
ended
|
2J JY30 | — | |
| 27020-54020 note |
Alternator Assy
1979-03 → 1979-06
ended
|
L LY20,30 | — | |
| 27020-54021 note |
Alternator Assy
1979-06 → 1982-01
ended
|
L LY20,30 | — | |
| 27020-54110 note |
Alternator Assy
1982-01 → 1983-08
ended
|
L LY30 | — | |
| 27020-54190 note |
Alternator Assy
1983-08 → 1985-07
ended
|
2L LY31 | — | |
| 27036 — Terminal Sub-assy, Lead Wire, Alternator | ||||
| 27036-54010 note |
Terminal Sub-assy, Lead Wire, Alternator
1979-03 → 1985-07
ended
|
L LY20,30 | — | |
| 27036-56011 note |
Terminal Sub-assy, Lead Wire, Alternator
1979-03 → 1983-08
ended
|
2J JY30 | — | |
| 27113 — Plate, Bearing Retainer, Alternator | ||||
| 27113-10012 note |
Plate, Bearing Retainer, Alternator
1979-03 → 1985-07
ended
|
12R RY20,30 | — | |
| 27312-31011 note |
Plate, Bearing Retainer, Alternator
1979-03 → 1980-02
ended
|
5R RY31 | — | |
| 27312-56011 note |
Plate, Bearing Retainer, Alternator
1979-03 → 1983-08
ended
|
2J JY30 | — | |
| 27312-56070 note |
Plate, Bearing Retainer, Alternator
1979-03 → 1982-01
ended
|
L LY20,30 | — | |
| 27312-57060 note |
Plate, Bearing Retainer, Alternator
1982-01 → 1985-07
ended
|
L,2L LY3# | — | |
| 27212 — Ring, Space(FOR ALTERNATOR ROTOR) | ||||
| 27212-39050 note |
Ring, Space(FOR ALTERNATOR ROTOR)
1979-03 → 1985-07
ended
|
5R RY31 | — | |
| 27212-56010 note |
Ring, Space(FOR ALTERNATOR ROTOR)
1979-03 → 1983-08
ended
|
2J JY30 | — | |
| 27333-57060 note |
Ring, Space(FOR ALTERNATOR ROTOR)
1982-01 → 1985-07
ended
|
L,2L LY3# | — | |
| 27412-54040 note |
Ring, Space(FOR ALTERNATOR ROTOR)
1979-06 → 1982-01
ended
|
L LY20,30 | — | |
| 90099-19068 note |
Ring, Space(FOR ALTERNATOR ROTOR)
1979-03 → 1985-07
ended
|
12R RY20,30 | — | |
| 27310 — Frame Assy, Drive End, Alternator | ||||
| 27310-18010 note |
Frame Assy, Drive End, Alternator
1980-02 → 1985-07
ended
|
5R RY31 | — | |
| 27310-22012 note |
Frame Assy, Drive End, Alternator
1979-03 → 1985-07
ended
|
12R RY20,30 | — | |
| 27310-34030 note |
Frame Assy, Drive End, Alternator
1979-03 → 1980-02
ended
|
5R RY31 | — | |
| 27310-46032 note |
Frame Assy, Drive End, Alternator
1979-03 → 1983-08
ended
|
2J JY30 | — | |
| 27310-54011 note |
Frame Assy, Drive End, Alternator
1979-03 → 1980-11
ended
|
L LY20,30 | — | |
| 27310-54012 note |
Frame Assy, Drive End, Alternator
1980-11 → 1982-01
ended
|
L LY20,30 | — | |
| 27310-54110 note |
Frame Assy, Drive End, Alternator
1982-01 → 1985-07
ended
|
L,2L LY3# | — | |
| 27310A — Collar OR Nut(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 27314-56010 note |
Collar OR Nut(FOR ALTERNATOR DRIVE END FRAME)
1979-03 → 1983-08
ended
|
2J JY30 | — | |
| 27412-31040 note |
Collar OR Nut(FOR ALTERNATOR DRIVE END FRAME)
1980-02 → 1985-07
ended
|
5R RY31 | — | |
| 27412-54010 note |
Collar OR Nut(FOR ALTERNATOR DRIVE END FRAME)
1979-03 → 1979-06
ended
|
L LY20,30 | — | |
| 27412-56040 note |
Collar OR Nut(FOR ALTERNATOR DRIVE END FRAME)
1979-03 → 1985-07
ended
|
12R RY20,30 | — | |
| 27412-57060 note |
Collar OR Nut(FOR ALTERNATOR DRIVE END FRAME)
1982-01 → 1983-08
ended
|
L LY30 | — | |
| 27412-57060 note |
Collar OR Nut(FOR ALTERNATOR DRIVE END FRAME)
1983-08 → 1985-07
ended
|
2L LY31 | — | |
| 90099-19075 note |
Collar OR Nut(FOR ALTERNATOR DRIVE END FRAME)
1979-03 → 1980-02
ended
|
5R RY31 | — | |
| 90099-19251 note |
Collar OR Nut(FOR ALTERNATOR DRIVE END FRAME)
1979-06 → 1982-01
ended
|
L LY20,30 | — | |
| 27310B — Bearing(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10012 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1979-03 → 1985-07
ended
|
12R RY20,30 | — | |
| 90099-10082 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1979-03 → 1983-08
ended
|
2J JY30 | — | |
| 90099-10114 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1979-03 → 1980-02
ended
|
5R RY31 | — | |
| 90099-10120 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1979-03 → 1982-01
ended
|
L LY20,30 | — | |
| 90099-10126 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1980-02 → 1985-07
ended
|
5R RY31 | — | |
| 90099-10137 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
1982-01 → 1985-07
ended
|
L,2L LY3# | — | |
| 27310C — Felt(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02004 note |
Felt(FOR ALTERNATOR DRIVE END FRAME)
1979-03 → 1980-02
ended
|
5R RY31 | — | |
| 90099-02009 note |
Felt(FOR ALTERNATOR DRIVE END FRAME)
1979-03 → 1985-07
ended
|
12R RY20,30 | — | |
| 90099-02207 note |
Felt(FOR ALTERNATOR DRIVE END FRAME)
1979-03 → 1982-01
ended
|
L LY20,30 | — | |
| 90099-02209 note |
Felt(FOR ALTERNATOR DRIVE END FRAME)
1982-01 → 1985-07
ended
|
L,2L LY3# | — | |
| 27313 — Cover, Alternator Felt, Inner NO.2 | ||||
| 27313-57060 note |
Cover, Alternator Felt, Inner NO.2
1982-01 → 1985-07
ended
|
L,2L LY3# | — | |
| 27315 — Cover, Alternator Felt, Inner NO.1 | ||||
| 27313-31011 note |
Cover, Alternator Felt, Inner NO.1
1979-03 → 1980-02
ended
|
5R RY31 | — | |
| 27313-39010 note |
Cover, Alternator Felt, Inner NO.1
1979-03 → 1985-07
ended
|
12R RY20,30 | — | |
| 27315-56070 note |
Cover, Alternator Felt, Inner NO.1
1979-03 → 1982-01
ended
|
L LY20,30 | — | |
| 27315-57060 note |
Cover, Alternator Felt, Inner NO.1
1982-01 → 1985-07
ended
|
L,2L LY3# | — | |
| 27330 — Rotor Assy, Alternator | ||||
| 27330-22012 note |
Rotor Assy, Alternator
1979-03 → 1985-07
ended
|
12R RY20,30 | — | |
| 27330-26050 note |
Rotor Assy, Alternator
1980-02 → 1985-07
ended
|
5R RY31 | — | |
| 27330-33010 note |
Rotor Assy, Alternator
1979-03 → 1980-02
ended
|
5R RY31 | — | |
| 27330-46031 note |
Rotor Assy, Alternator
1979-03 → 1983-08
ended
|
2J JY30 | — | |
| 27330-54020 note |
Rotor Assy, Alternator
1979-03 → 1982-01
ended
|
L LY20,30 | — | |
| 27330-56140 note |
Rotor Assy, Alternator
1982-01 → 1985-07
ended
|
L,2L LY3# | — | |
| 27330B — Ring, Snap(FOR ALTERNATOR ROTOR) | ||||
| 90099-07048 note |
Ring, Snap(FOR ALTERNATOR ROTOR)
1979-03 → 1985-07
ended
|
5R RY31 | — | |
| 90099-07103 note |
Ring, Snap(FOR ALTERNATOR ROTOR)
1979-03 → 1983-08
ended
|
2J JY30 | — | |
| 90099-07103 note |
Ring, Snap(FOR ALTERNATOR ROTOR)
1982-01 → 1985-07
ended
|
L,2L LY3# | — | |
| 90099-07108 note |
Ring, Snap(FOR ALTERNATOR ROTOR)
1979-06 → 1982-01
ended
|
L LY20,30 | — | |
| 27350 — Frame Assy, Rectifier End | ||||
| 27350-31090 note |
Frame Assy, Rectifier End
1979-03 → 1985-07
ended
|
12R RY20,30 | — | |
| 27350-31101 note |
Frame Assy, Rectifier End
1979-03 → 1980-02
ended
|
5R RY31 | — | |
| 27350-46033 note |
Frame Assy, Rectifier End
1979-03 → 1983-08
ended
|
2J JY30 | — | |
| 27350-54010 note |
Frame Assy, Rectifier End
1979-03 → 1982-01
ended
|
L LY20,30 | — | |
| 27350-54190 note |
Frame Assy, Rectifier End
1983-08 → 1985-07
ended
|
2L LY31 | — | |
| 27350-56140 note |
Frame Assy, Rectifier End
1982-01 → 1983-08
ended
|
L LY30 | — | |
| 27350B — Condenser, Alternator | ||||
| 90099-52082 |
Condenser, Alternator
1983-08 → 1985-07
ended
|
2L LY31 | — | |
| 27351 — Bush(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-24020 note |
Bush(FOR ALTERNATOR RECTIFIER END FRAME)
1979-03 → 1985-07
ended
|
12R RY20,30 | — | |
| 27351-38051 note |
Bush(FOR ALTERNATOR RECTIFIER END FRAME)
1980-02 → 1985-07
ended
|
5R RY31 | — | |
| 27351-56013 note |
Bush(FOR ALTERNATOR RECTIFIER END FRAME)
1979-03 → 1985-07
ended
|
L,2J,2L JY30,LY20,3# | — | |
| 27352 — Cover, Frame Brush | ||||
| 27388-54010 note |
Cover, Frame Brush
1979-03 → 1979-06
ended
|
L LY20,30 | — | |
| 27388-56090 note |
Cover, Frame Brush
1979-06 → 1982-01
ended
|
L LY20,30 | — | |
| 27388-64010 note |
Cover, Frame Brush
1982-01 → 1983-01
ended
|
L LY30 | — | |
| 27388-68040 note |
Cover, Frame Brush
1983-01 → 1985-07
ended
|
L LY30 | — | |
| 27353 — Holder, W/Rectifier Positive, Alternator | ||||
| 27353-26030 note |
Holder, W/Rectifier Positive, Alternator
1979-03 → 1980-02
ended
|
5R RY31 | — | |
| 27353-54020 note |
Holder, W/Rectifier Positive, Alternator
1979-03 → 1984-08
ended
|
L,2L LY20,3# | — | |
| 27353-56011 note |
Holder, W/Rectifier Positive, Alternator
1979-03 → 1983-08
ended
|
2J JY30 | — | |
| 27356 — Holder, W/Rectifier Negative, Alternator | ||||
| 27356-26030 note |
Holder, W/Rectifier Negative, Alternator
1979-03 → 1980-02
ended
|
5R RY31 | — | |
| 27356-54020 note |
Holder, W/Rectifier Negative, Alternator
1979-03 → 1984-08
ended
|
L,2L LY20,3# | — | |
| 27356-56010 note |
Holder, W/Rectifier Negative, Alternator
1979-03 → 1983-08
ended
|
2J JY30 | — | |
| 27357 — Holder, Alternator, W/Rectifier | ||||
| 27357-11014 note |
Holder, Alternator, W/Rectifier
1979-03 → 1985-07
ended
|
12R RY20,30 | — | |
| 27357-54190 note |
Holder, Alternator, W/Rectifier
1984-08 → 1985-07
ended
|
2L LY31 | — | |
| 27357-56011 note |
Holder, Alternator, W/Rectifier
1979-03 → 1983-08
ended
|
2J JY30 | — | |
| 27370 — Holder Assy, Alternator Brush | ||||
| 27370-31090 note |
Holder Assy, Alternator Brush
1979-03 → 1985-07
ended
|
12R RY20,30 | — | |
| 27370-54010 note |
Holder Assy, Alternator Brush
1979-03 → 1985-07
ended
|
L,2L LY20,3# | — | |
| 27370-60080 note |
Holder Assy, Alternator Brush
1979-03 → 1983-08
ended
|
2J JY30 | — | |
| 27371 — Brush, Alternator | ||||
| 27371-31011 note |
Brush, Alternator
1979-03 → 1985-07
ended
|
12R,2J,5R JY30,RY20,3# | — | |
| 27371-56070 note |
Brush, Alternator
1979-03 → 1985-07
ended
|
L,2L LY20,3# | — | |
| 27372 — Spring, Alternator Brush | ||||
| 27372-31011 note |
Spring, Alternator Brush
1979-03 → 1985-07
ended
|
12R,2J,5R JY30,RY20,3# | — | |
| 27372-56070 note |
Spring, Alternator Brush
1979-03 → 1985-07
ended
|
L,2L LY20,3# | — | |
| 27410 — Stator Assy, Alternator | ||||
| 27410-11014 note |
Stator Assy, Alternator
1979-03 → 1985-07
ended
|
12R RY20,30 | — | |
| 27410-15030 note |
Stator Assy, Alternator
1980-02 → 1985-07
ended
|
5R RY31 | — | |
| 27410-26020 note |
Stator Assy, Alternator
1979-03 → 1980-02
ended
|
5R RY31 | — | |
| 27410-46031 note |
Stator Assy, Alternator
1979-03 → 1983-08
ended
|
2J JY30 | — | |
| 27410-54020 note |
Stator Assy, Alternator
1979-03 → 1982-01
ended
|
L LY20,30 | — | |
| 27410-54190 note |
Stator Assy, Alternator
1984-08 → 1985-07
ended
|
2L LY31 | — | |
| 27410-57060 note |
Stator Assy, Alternator
1982-01 → 1984-08
ended
|
L,2L LY3# | — | |
| 27411 — Pulley, Alternator | ||||
| 27411-31090 note |
Pulley, Alternator
1979-03 → 1985-07
ended
|
12R RY20,30 | — | |
| 27411-45010 note |
Pulley, Alternator
1979-03 → 1985-07
ended
|
5R RY31 | — | |
| 27411-54010 note |
Pulley, Alternator
1979-03 → 1979-06
ended
|
L LY20,30 | — | |
| 27411-54020 note |
Pulley, Alternator
1979-06 → 1982-01
ended
|
L LY20,30 | — | |
| 27411-54110 note |
Pulley, Alternator
1982-01 → 1983-08
ended
|
L LY30 | — | |
| 27411-54170 note |
Pulley, Alternator
1983-08 → 1985-07
ended
|
2L LY31 | — | |
| 27411-56010 note |
Pulley, Alternator
1979-03 → 1983-08
ended
|
2J JY30 | — | |
| 27441 — Fan, Alternator | ||||
| 27441-31090 note |
Fan, Alternator
1979-03 → 1985-07
ended
|
12R RY20,30 | — | |
| 27441-34030 note |
Fan, Alternator
1979-03 → 1985-07
ended
|
5R RY31 | — | |
| 27441-46031 note |
Fan, Alternator
1979-03 → 1983-08
ended
|
2J JY30 | — | |
| 27441-54010 note |
Fan, Alternator
1979-03 → 1979-06
ended
|
L LY20,30 | — | |
| 27441-54040 note |
Fan, Alternator
1979-06 → 1982-01
ended
|
L LY20,30 | — | |
| 27441-56090 note |
Fan, Alternator
1982-01 → 1985-07
ended
|
L,2L LY3# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
