Toyota Toyoace

1979-03 → 1985-07 · chassis RY20,3#,LY20,3#,JY30 · catalogue 731230 · Europe

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

9 part groups · 4 illustrations

Illustrations

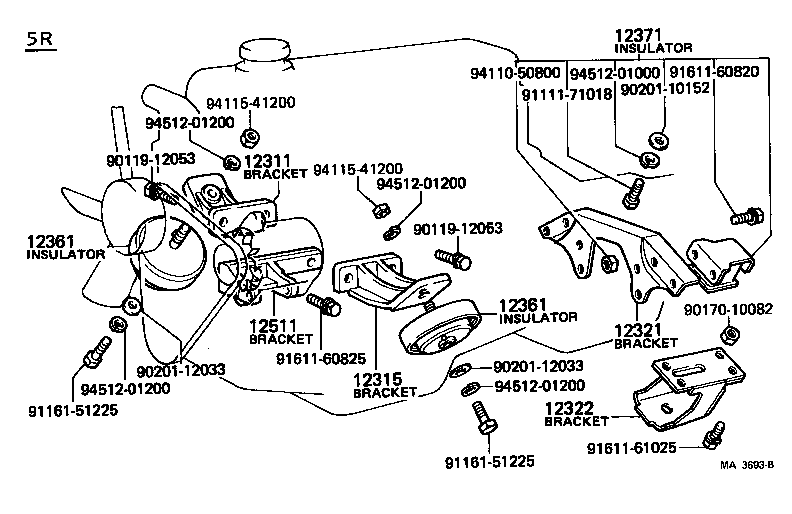

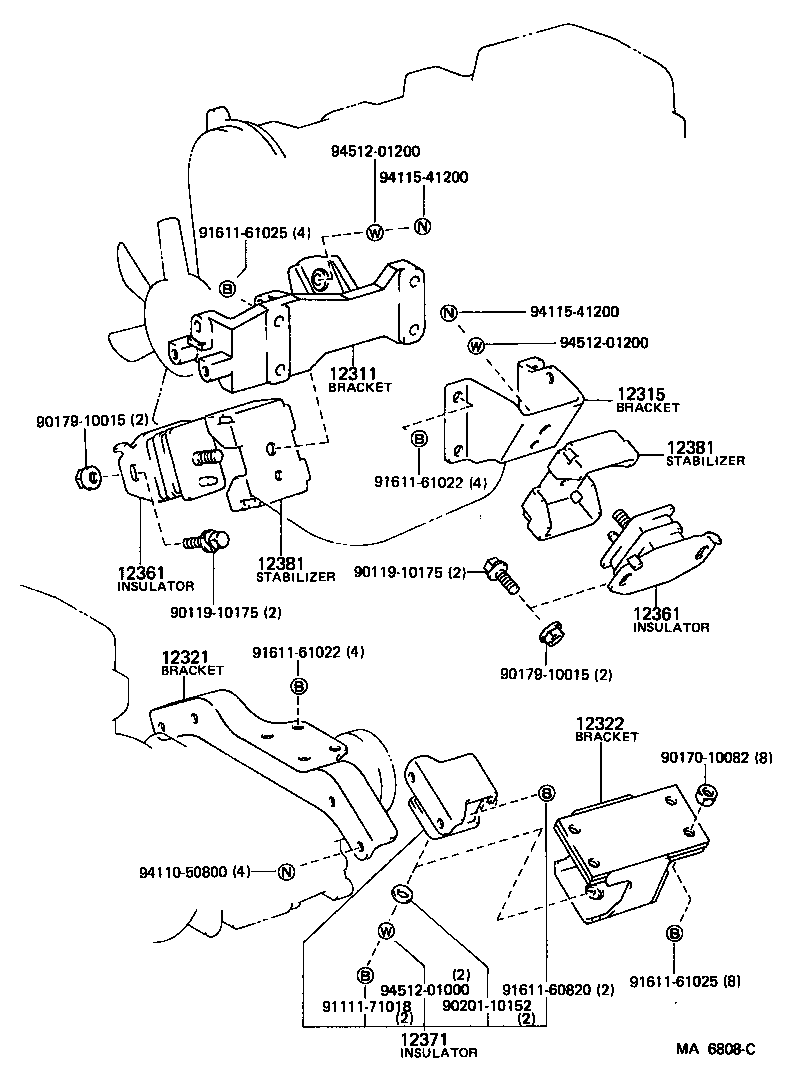

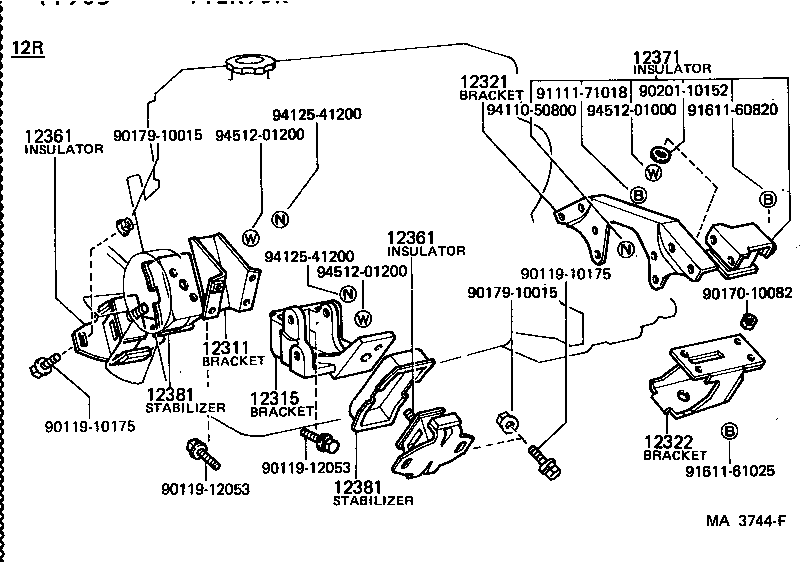

Figure MA3639A MA3639A 1979-03 → 1983-08 Figure MA6808C MA6808C 1979-03 → — Figure MA3744F MA3744F 1979-03 → — Figure MA3693B MA3693B 1979-03 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12322 Bracket, Engine Mounting, Rear NO.2
12325 Bracket, Engine Mounting, NO.3
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
