Toyota Toyoace

1979-03 → 1985-07 · chassis RY20,3#,LY20,3#,JY30 · catalogue 731230 · Europe

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

26 part groups · 13 illustrations

Illustrations

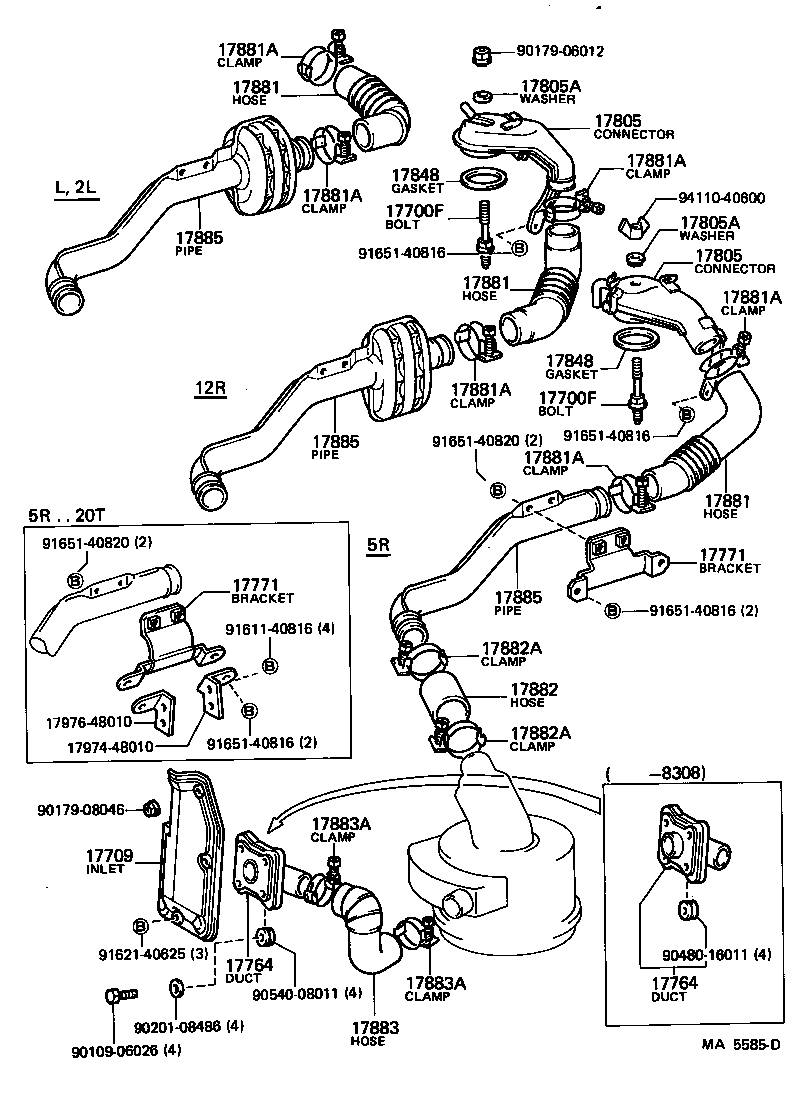

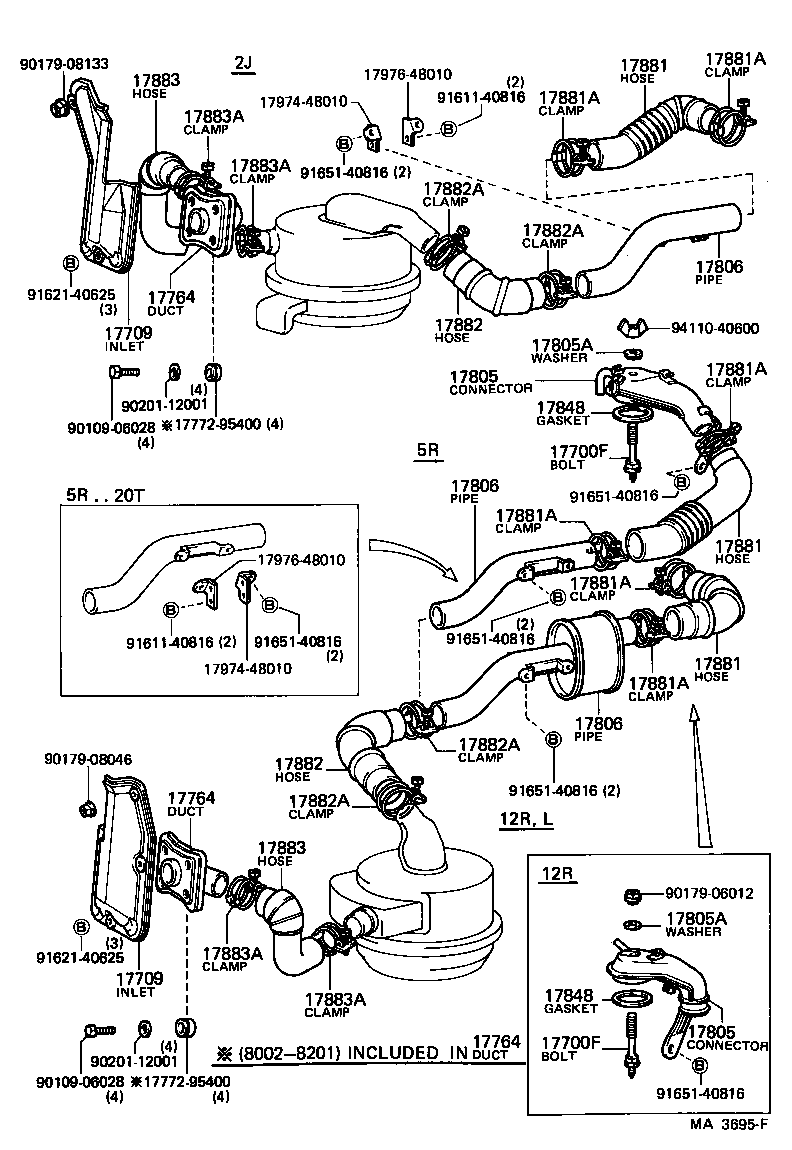

Figure MA3751D MA3751D 1979-03 → — Figure MA3752C MA3752C 1979-03 → — Figure MA3695F MA3695F 1979-03 → 1982-01 Figure MA5593B MA5593B 1982-01 → 1983-08 Figure MA3751D MA3751D 1979-03 → — Figure MA3752C MA3752C 1979-03 → — Figure MA3695F MA3695F 1979-03 → 1982-01 Figure MA5585D MA5585D 1982-01 → — Figure MA3750D MA3750D 1979-03 → — Figure MA3751D MA3751D 1979-03 → — Figure MA3752C MA3752C 1979-03 → — Figure MA3695F MA3695F 1979-03 → 1982-01 Figure MA5585D MA5585D 1982-01 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700E Bolt, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17709 Inlet Sub-assy, Air Cleaner
17764 Duct, Air Cleaner
17769 Support, Air Cleaner
17771 Bracket, Air Cleaner Inlet Duct
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805A Gasket & Washer, Seal
17806 Pipe Sub-assy, Air Cleaner, NO.2
17826 Plate, Filter Element Baffle
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17885 Pipe, Air Cleaner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
