Toyota Toyoace

1979-03 → 1985-07 · chassis RY20,3#,LY20,3#,JY30 · catalogue 731230 · Europe

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

4 part groups · 5 illustrations

Illustrations

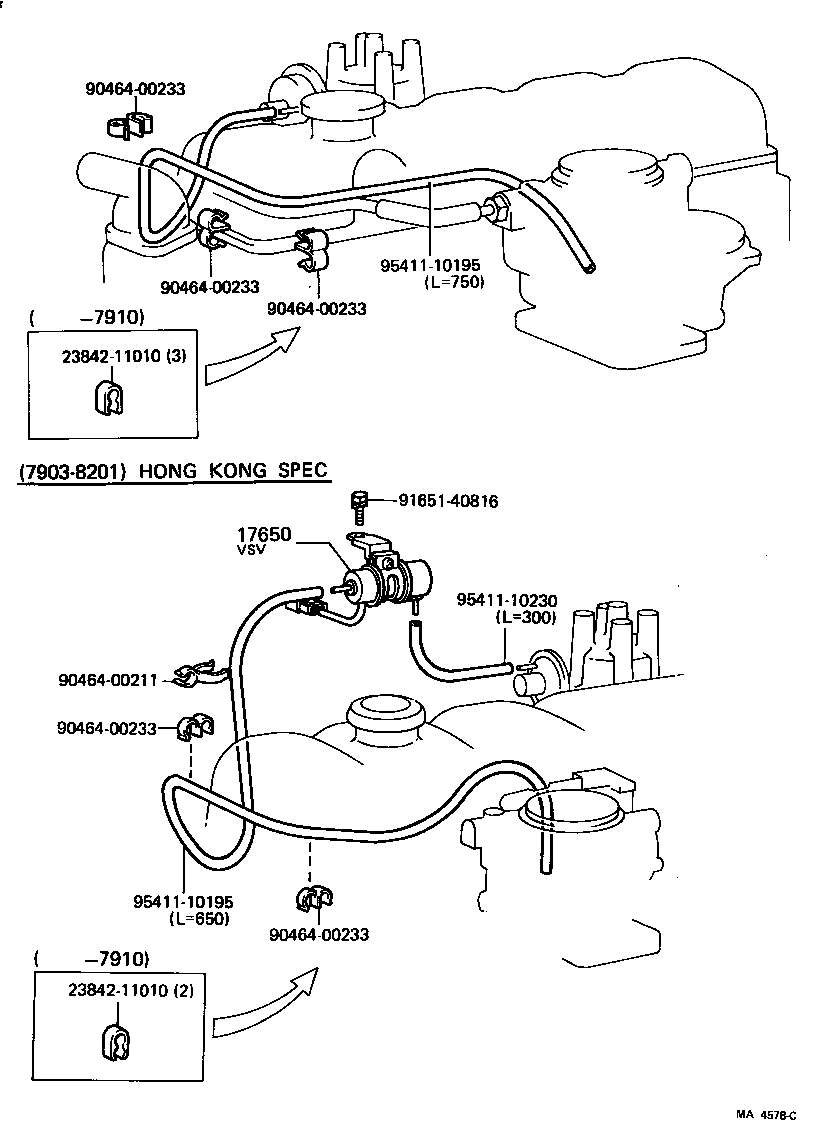

Figure MA9501 MA9501 1979-03 → — Figure MA9501 MA9501 1979-03 → — Figure MA4578C MA4578C 1979-03 → — Figure MA7715 MA7715 1984-08 → — Figure MA3725D MA3725D 1980-05 → —

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
23265 Filter, Gas, NO.1
23282 Valve, Vacuum Transmitting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
