Toyota Toyoace
1979-03 → 1985-07 · chassis RY20,3#,LY20,3#,JY30 · catalogue 731230 · Europe
Discontinued model
Data version 1986-05

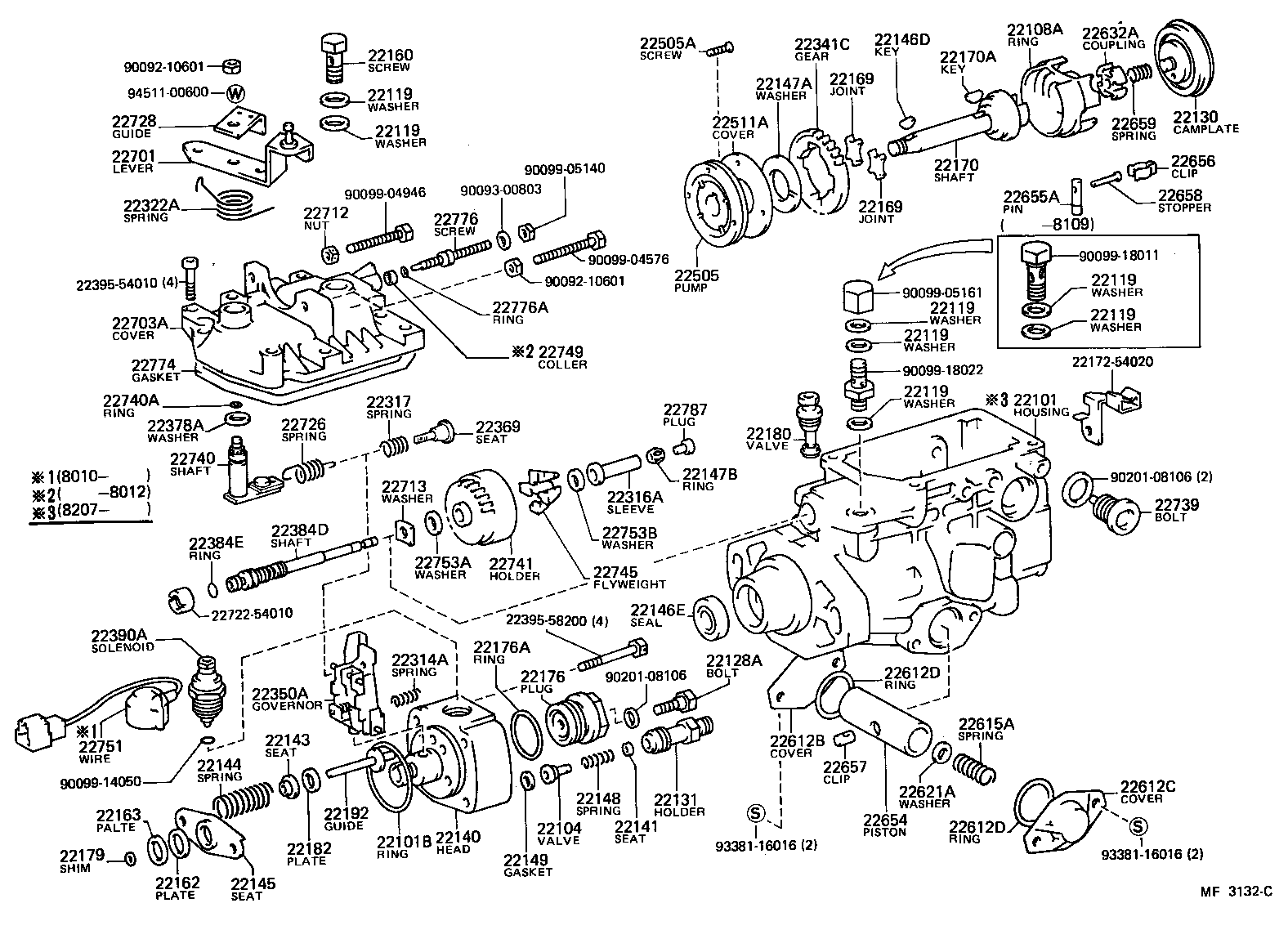

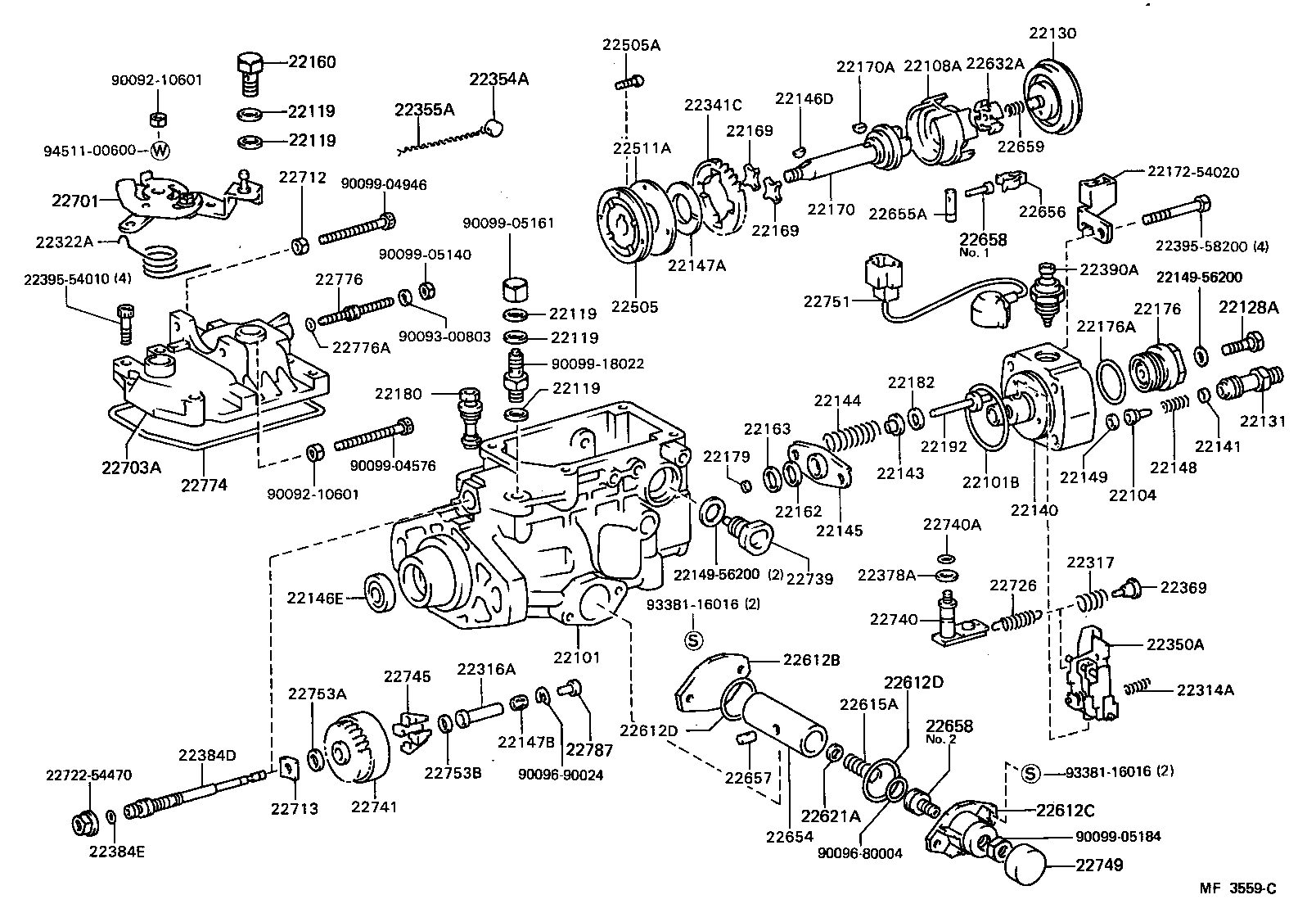

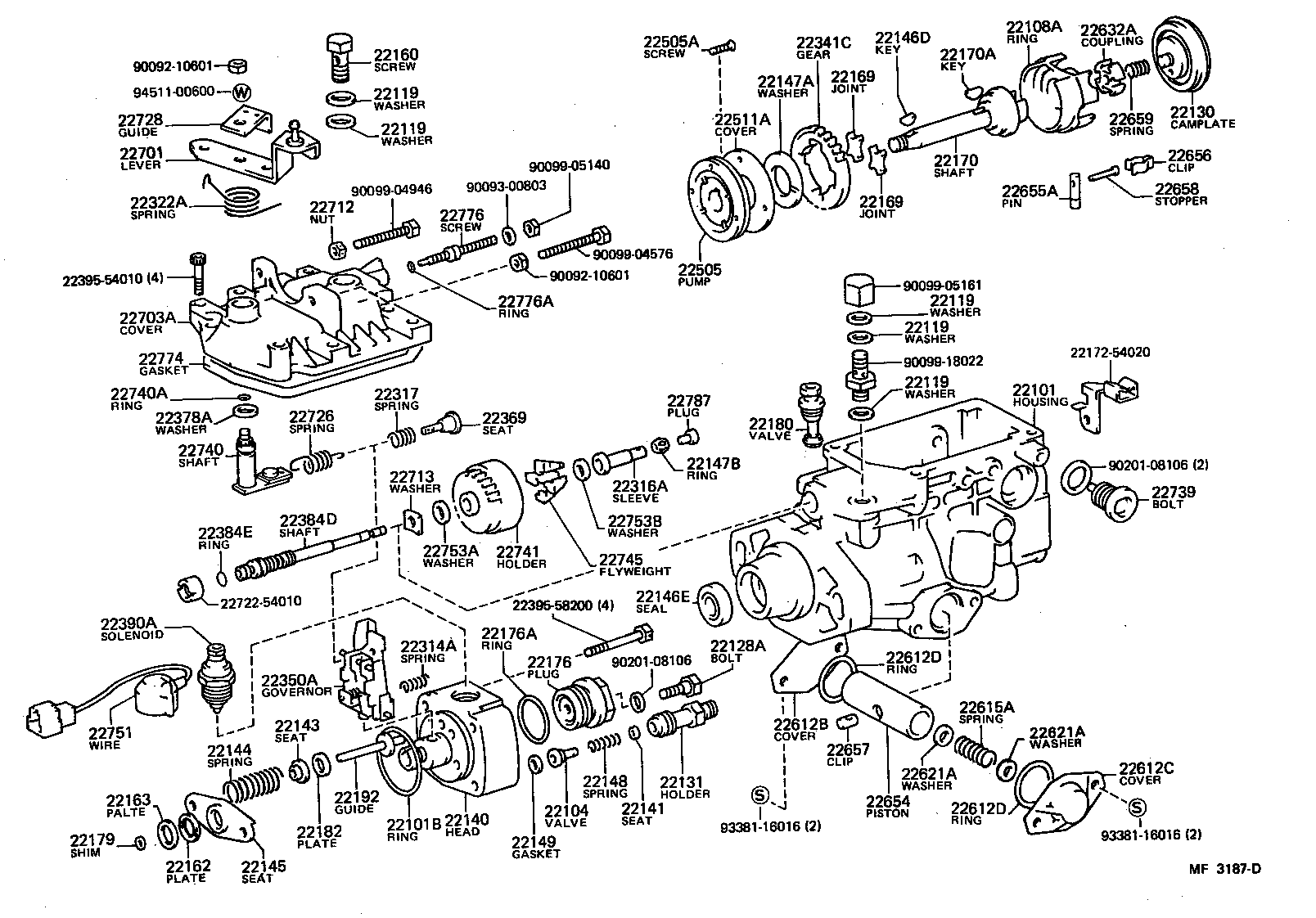

Injection Pump Body
101 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 22101 | Housing Sub-assy, Injection Pump |
| 22101B | Ring, O(FOR INJECTION PUMP HOUSING) |
| 22102 | Plate Set, Valve Holder Lock |
| 22103 | Cover Sub-assy, Injection Pump |
| 22104 | Valve Sub-assy, Injection Pump Delivery |
| 22105 | Element Sub-assy, Injection Pump |
| 22106 | Tappet Sub-assy, Injection Pump |
| 22107 | Bleeder Sub-assy, Air |
| 22108A | Ring Sub-assy, Roller |
| 22114 | Rack, Control |
| 22115 | Screw, Rack Guide |
| 22116 | Cover, Control Rack |
| 22119 | Washer, Air Bleeder Nipple |
| 22128A | Bolt, Distributive Head |
| 22130 | Camplate Sub-assy, Face |
| 22131 | Holder, Delivery Valve |
| 22140 | Head Sub-assy, Distributive Pump |
| 22141 | Seat, Delivery Valve Spring |
| 22142 | Sleeve, Plunger Control |
| 22143 | Seat, Spring Upper |
| 22144 | Spring, Pump Plunger |
| 22145 | Seat, Spring, Lower |
| 22146 | Camshaft, Injection Pump |
| 22146A | Bearing(FOR INJECTION CAMSHAFT) |
| 22146D | Key(FOR DRIVE GEAR) |
| 22146E | Seal(FOR DRIVE SHAFT) |
| 22147 | Ring, Camshaft Adjust |
| 22147A | Washer, Drive Shaft |
| 22147B | Ring, Governor Sleeve |
| 22148 | Spring, Delivery Valve |
| 22149 | Gasket, Delivery Valve |
| 22155 | Pinion, Plunger Control |
| 22156 | Screw, Plunger Control Pinion Clamp |
| 22157 | Plug, Injection Pump Felt Plate |
| 22160 | Screw Sub-assy, Overflow |
| 22161 | Plate, Camshaft Shim |
| 22162 | Plate, Plunger Upper |
| 22163 | Plate, Plunger Lower |
| 22169 | Joint, Rubber |
| 22170 | Shaft Sub-assy, Drive |
| 22170A | Key(FOR DRIVE SHAFT) |
| 22173 | Washer, Spring |
| 22174 | Shaft, Spline |
| 22174A | Key(FOR SPLINE SHAFT) |
| 22176 | Plug, Distributive Head |
| 22176A | Ring, O(FOR DISTRIBUTIVE HEAD PLUG) |
| 22177 | Stay, Injection Pump Body |
| 22179 | Shim, Plunger Adjusting |
| 22180 | Valve Sub-assy, Regulator |
| 22181 | Flange, Injection Pump |
| 22182 | Plate, Tappet Adjusting Shim |
| 22192 | Guide Sub-assy, Plunger Spring |
| 22195 | Gasket, Bearing Cover |
| 22314A | Spring, Lever Support |
| 22316A | Sleeve, Governor |
| 22317 | Spring, Governor Domper |
| 22322A | Spring, Return |
| 22341C | Gear, Governor Drive |
| 22350A | Governor Assy, Torque Control |
| 22354A | Seal, Rod |
| 22355A | Wire, Governor Housing Seal |
| 22369 | Seat, Governor Spring |
| 22378A | Washer, Governor Thrust |
| 22384D | Shaft, Governor |
| 22384E | Ring, O(FOR GOVERNOR MAIN SHAFT) |
| 22390A | Solenoid Assy, Fuel Cut |
| 22505 | Pump Sub-assy, Fuel Feed |
| 22505A | Screw(FOR FUEL FEED PUMP) |
| 22511A | Cover, Feed Pump |
| 22611 | Nut, Timer Round |
| 22612B | Cover, Timer |
| 22612C | Cover, Timer |
| 22612D | Ring, O(FOR TIMER COVER) |
| 22615A | Spring, Timer Outer |
| 22621A | Washer, Timer Adjusting |
| 22632A | Coupling, Injection Pump |
| 22654 | Piston, Timer |
| 22655A | Pin, Timer Slide |
| 22656 | Clip, Timer |
| 22657 | Clip, Timer |
| 22658 | Stopper, Timer |
| 22659 | Spring, Coupling |
| 22701 | Lever Sub-assy, Adjusting |
| 22703A | Cover Sub-assy, Governor |
| 22712 | Nut, Rock |
| 22713 | Washer, Governor Gear Adjusting |
| 22726 | Spring, Speed Control |
| 22728 | Guide, Return Spring |
| 22739 | Bolt, Governor Link Support |
| 22740 | Shaft Sub-assy, Governor Adjusting |
| 22740A | Ring, O(FOR GOVERNOR ADJUSTING SHAFT) |
| 22741 | Holder Sub-assy, Flyweight |
| 22745 | Flyweight, Distributive Pump |
| 22749 | Collar, Smoke Set Adjusting |
| 22751 | Wire Sub-assy, Fuel Cut Solenoid |
| 22753A | Washer, Flyweight, NO.1 |
| 22753B | Washer, Flyweight, NO.2 |
| 22774 | Gasket, Governor Cover |
| 22776 | Screw, Smoke Set Adjusting |
| 22776A | Ring, O(FOR SMOKE SET SCREW) |
| 22787 | Plug, Governor Sleeve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
