Toyota Toyoace
1979-03 → 1985-07 · chassis RY20,3#,LY20,3#,JY30 · catalogue 731230 · Europe
Discontinued model
Data version 1986-05

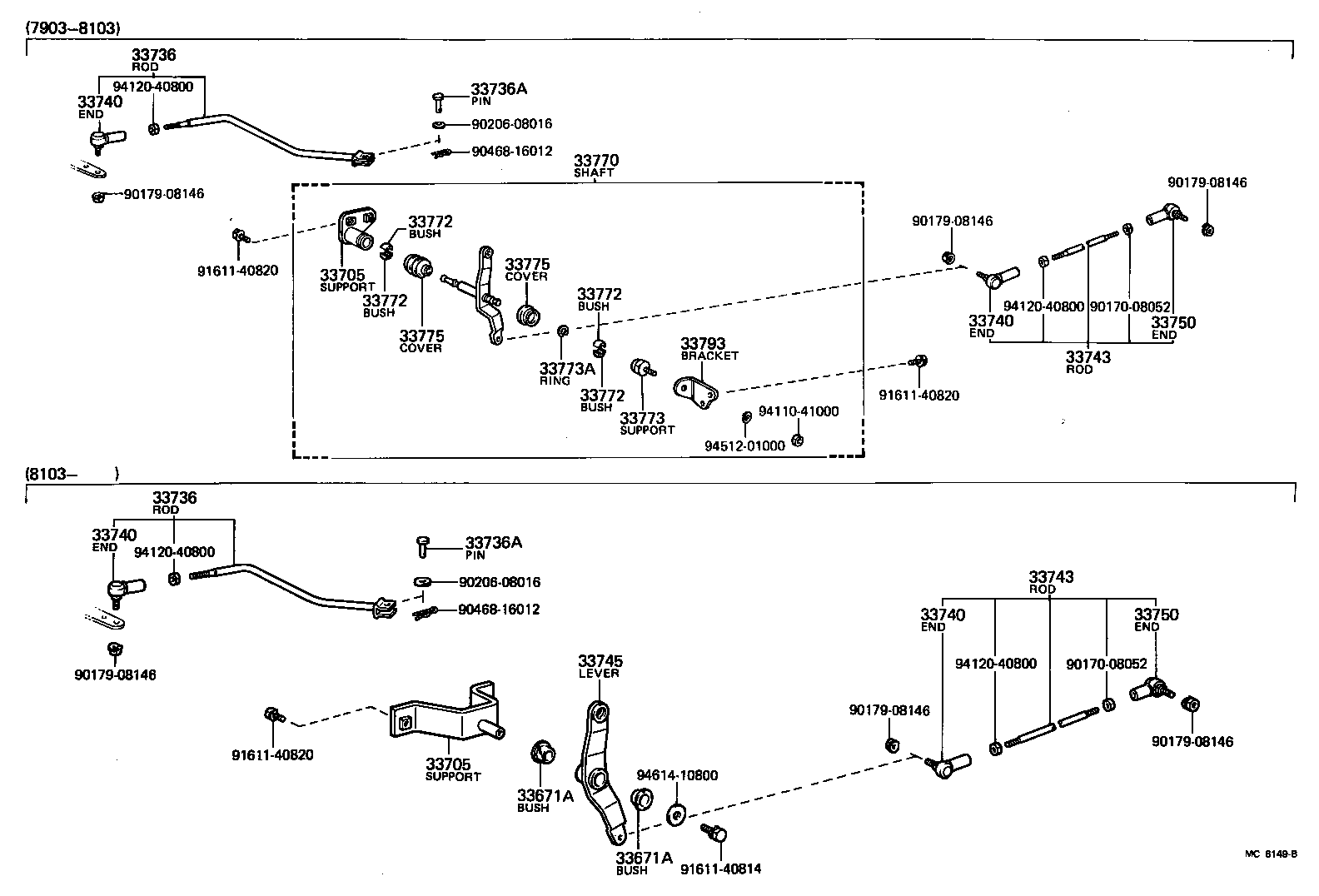

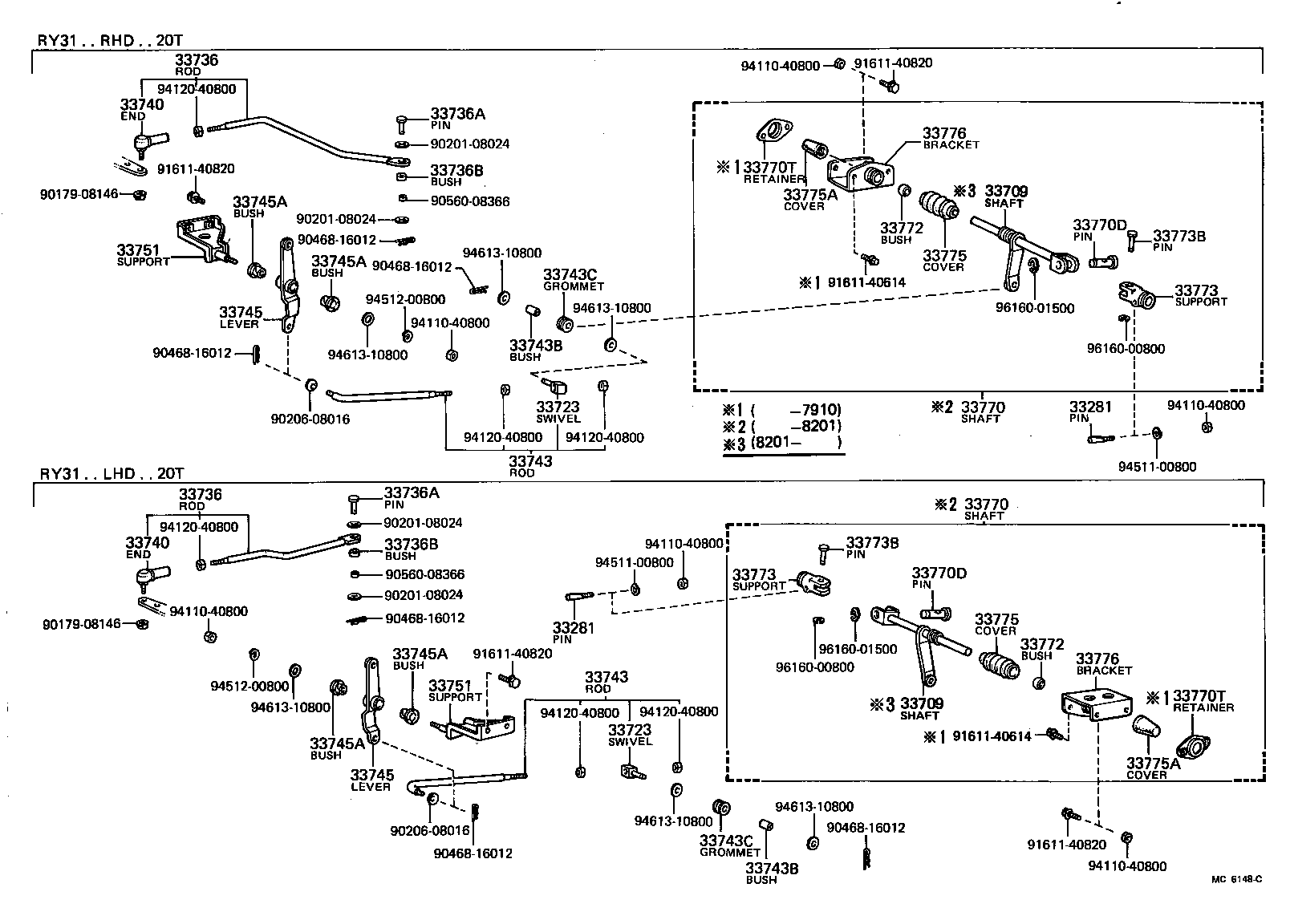

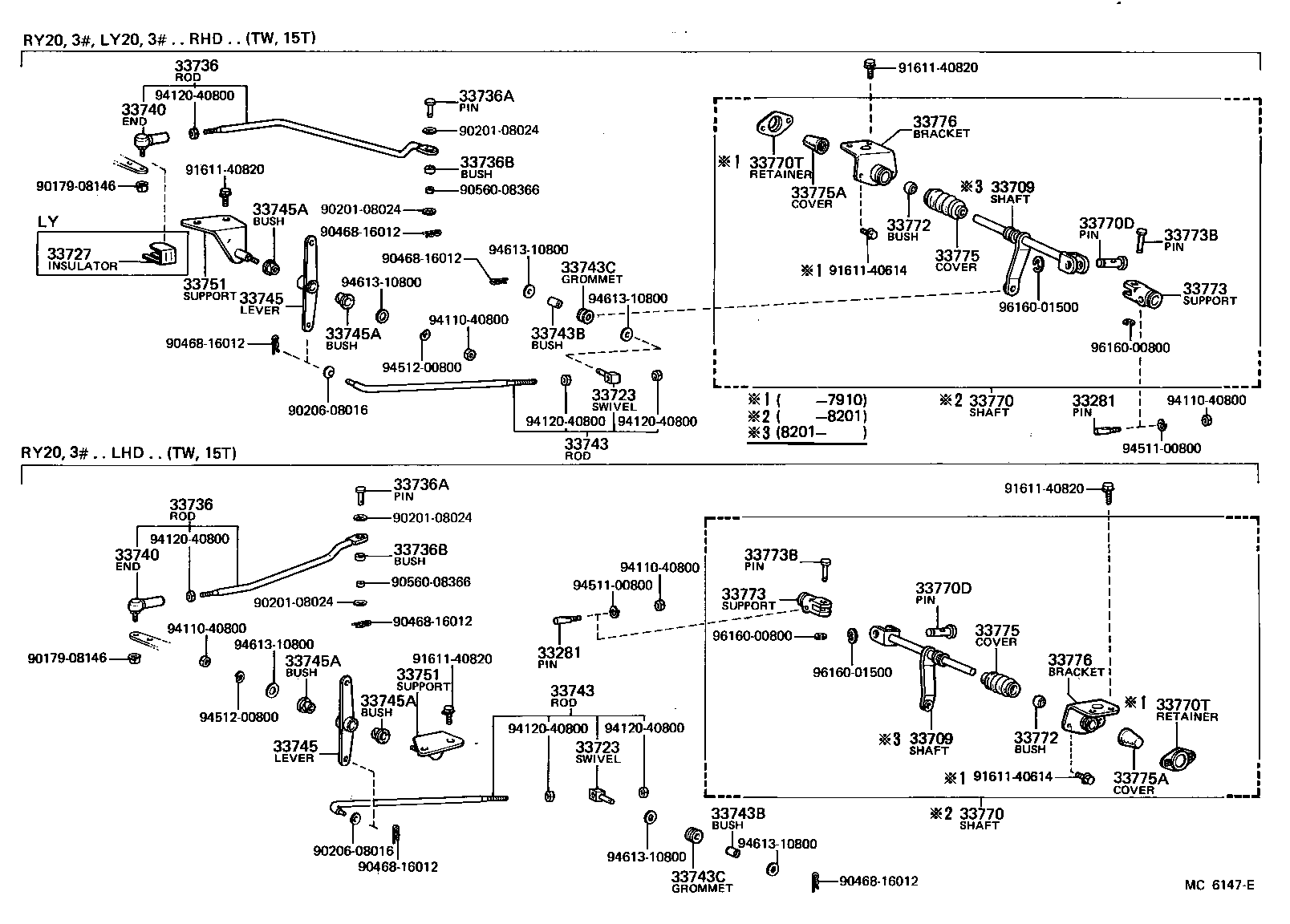

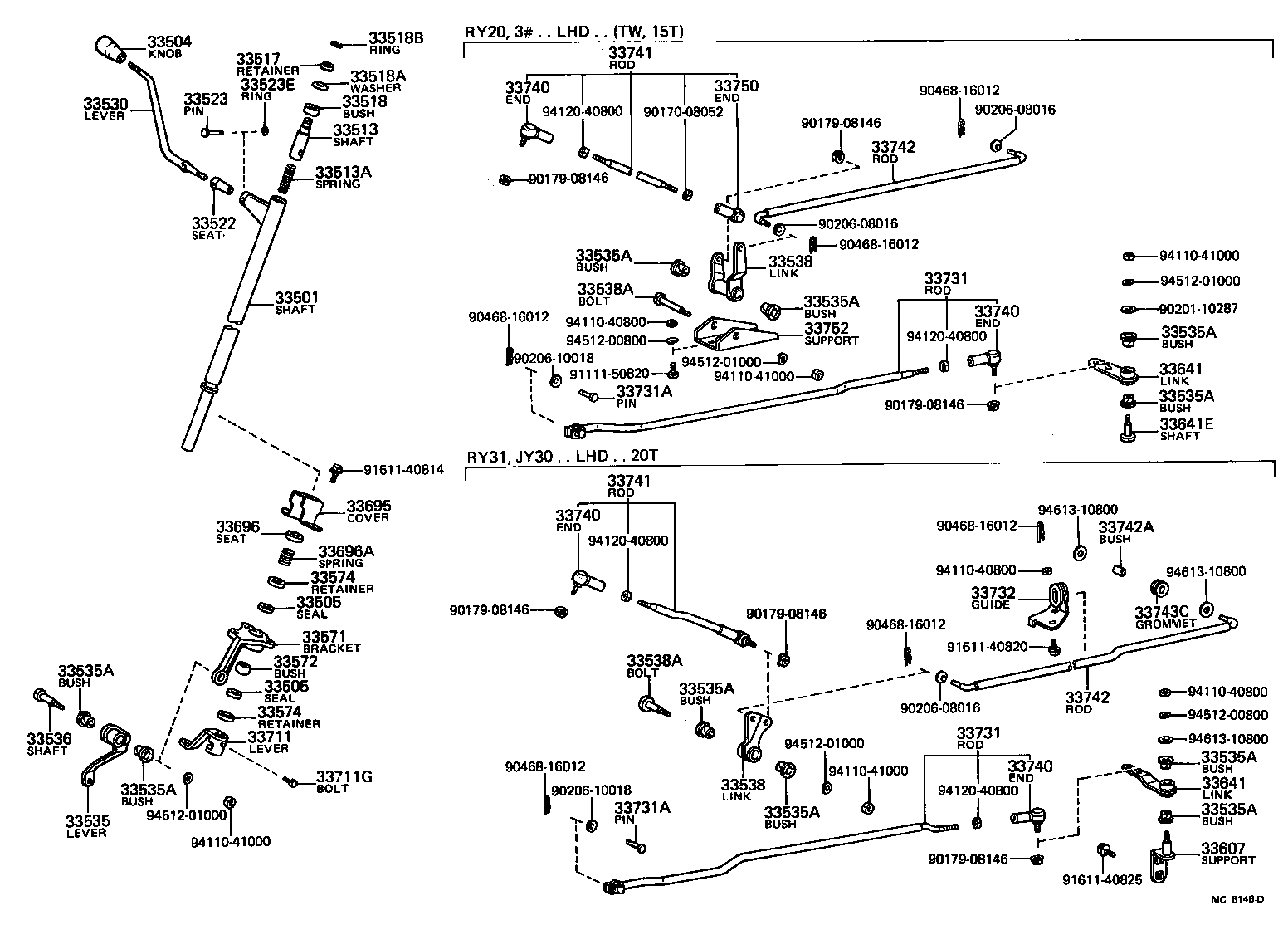

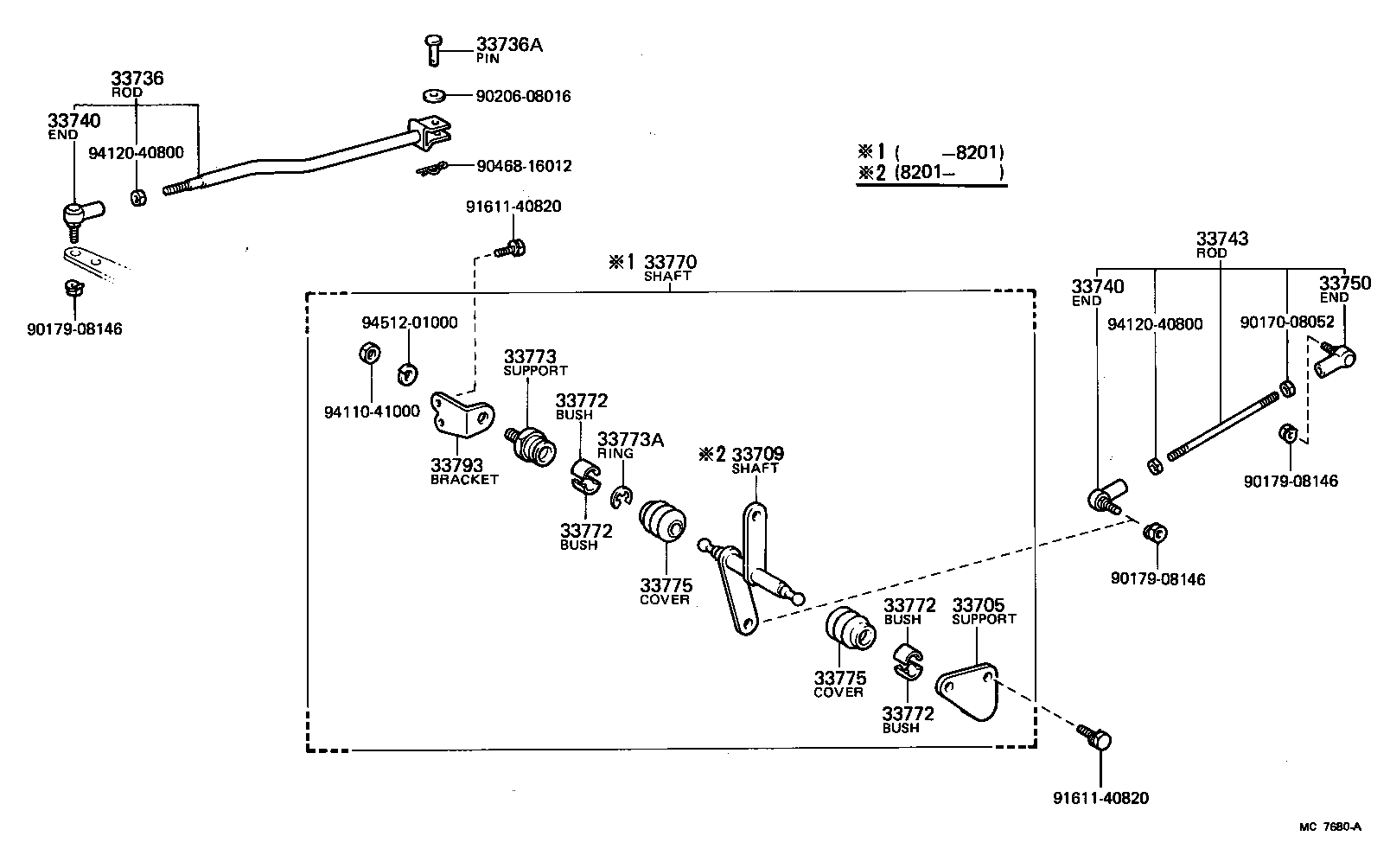

Control Shaft & Crossshaft
64 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 33281 | Pin, Lever Lock (FOR COLUMN SHIFT) |
| 33501 | Shaft Sub-assy, Control (FOR COLUMN SHIFT) |
| 33504 | Knob Sub-assy, Shift Lever (FOR COLUMN SHIFT) |
| 33505 | Seal Sub-assy, Control Shaft Dust (FOR COLUMN SHIFT) |
| 33513 | Shaft, Control Shaft Bracket, Upper |
| 33513A | Spring, Compression (FOR BRACKET UPPER SHAFT) |
| 33517 | Retainer, Control Shaft Upper Spring |
| 33518 | Bush, Upper Control Shaft Piece |
| 33518A | Washer, Plate (FOR UPPER CONTROL SHAFT PIECE BUSH) |
| 33518B | Ring, E (FOR UPPER CONTROL SHAFT PIECE BUSH) |
| 33522 | Seat, Shift Lever Plate (FOR COLUMN SHIFT) |
| 33523 | Pin, Shift Lever (FOR COLUMN SHIFT) |
| 33523E | Ring, E (FOR SHIFT LEVER PIN) |
| 33530 | Lever Assy, Shift (FOR COLUMN SHIFT) |
| 33535 | Lever, Control Select (FOR COLUMN SHIFT) |
| 33535A | Bush (FOR CONTROL SELECT LEVER) |
| 33536 | Shaft, Control Select Lever (FOR COLUMN SHIFT) |
| 33538 | Link, Shifting Lever |
| 33538A | Bolt (FOR SHIFTING LEVER LINK SETTING) |
| 33571 | Bracket, Control Shaft, Lower (FOR COLUMN SHIFT) |
| 33572 | Bush, Control Shaft Lower (FOR COLUMN SHIFT) |
| 33574 | Retainer, Dust Seal (FOR COLUMN SHIFT CONTROL SHAFT) |
| 33607 | Support Sub-assy, Control Rod (FOR COLUMN SHIFT) |
| 33641 | Link, Selecting (FOR COLUMN SHIFT) |
| 33641E | Shaft, Selecting Link |
| 33671A | Bush (FOR CONTROL ROD, NO.1 SUPPORT) |
| 33695 | Cover, Selecting Spring (FOR COLUMN SHIFT) |
| 33696 | Seat, Select Spring |
| 33696A | Spring, Compression |
| 33705 | Support Sub-assy, Cross Shaft (FOR BODY SIDE) |
| 33709 | Shaft Sub-assy, Cross, NO.1 (FOR COLUMN SHIFT) |
| 33711 | Lever, Control Shaft (FOR COLUMN SHIFT) |
| 33711G | Bolt, Control Shaft Lever Lock |
| 33723 | Swivel, Connecting Rod (FOR COLUMN SHIFT) |
| 33727 | Insulator, Connecting Rod Bush Heat |
| 33731 | Rod, Gear Selecting, NO.1 (FOR COLUMN SHIFT) |
| 33731A | Pin, W/Hole (FOR COLUMN SHIFT GEAR SELECTING ROD) |
| 33732 | Guide, Selecting Rod |
| 33736 | Rod, Gear Selecting, NO.2(FOR COLUMN SHIFT) |
| 33736A | Pin, W/Hole |
| 33736B | Bush(FOR GEAR SELECTING ROD, NO.2) |
| 33740 | End Assy, Connecting Rod, NO.1(FOR COLUMN SHIFT) |
| 33741 | Rod, Gear Shifting, NO.1 (FOR COLUMN SHIFT) |
| 33742 | Rod, Gear Shifting, NO.2(FOR COLUMN SHIFT) |
| 33742A | Bush(FOR SHIFTING ROD NO.2) |
| 33743 | Rod, Gear Shifting, NO.3 (FOR COLUMN SHIFT) |
| 33743B | Bush, NO.1 |
| 33743C | Grommet |
| 33745 | Lever, Gear Shifting, NO.2 (FOR COLUMN SHIFT) |
| 33745A | Bush (FOR SHIFTING, NO.2 LEVER) |
| 33750 | End, Connecting Rod, NO.2 (FOR COLUMN SHIFT) |
| 33751 | Support, Gear Shift Link Lever (FOR COLUMN SHIFT) |
| 33752 | Support, Control Link |
| 33770 | Shaft Assy, Cross (FOR COLUMN SHIFT) |
| 33770D | Pin (FOR CROSS SHAFT) |
| 33770T | Retainer, Dust Seal (FOR CROSS SHAFT) |
| 33772 | Bush, NO.1, Cross Shaft Support (FOR COLUMN SHIFT) |
| 33773 | Support, Cross Shaft, NO.1 (FOR COLUM SHIFT) |
| 33773A | Ring, Hole Snap (FOR CROSS SHAFT SUPPORT SNAP) |
| 33773B | Pin (FOR CROSS SHAFT SUPPORT) |
| 33775 | Cover, Cross Shaft Dust (FOR COLUMN SHIFT) |
| 33775A | Cover, Cross Shaft Dust |
| 33776 | Bracket, Cross Shaft, NO.1 (FOR COLUMN SHIFT) |
| 33793 | Bracket, Cross Shaft, NO.2(FOR COLUMN SHIFT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
