Toyota Toyoace
1979-03 → 1985-07 · chassis RY20,3#,LY20,3#,JY30 · catalogue 731230 · Europe
Discontinued model
Data version 1986-05

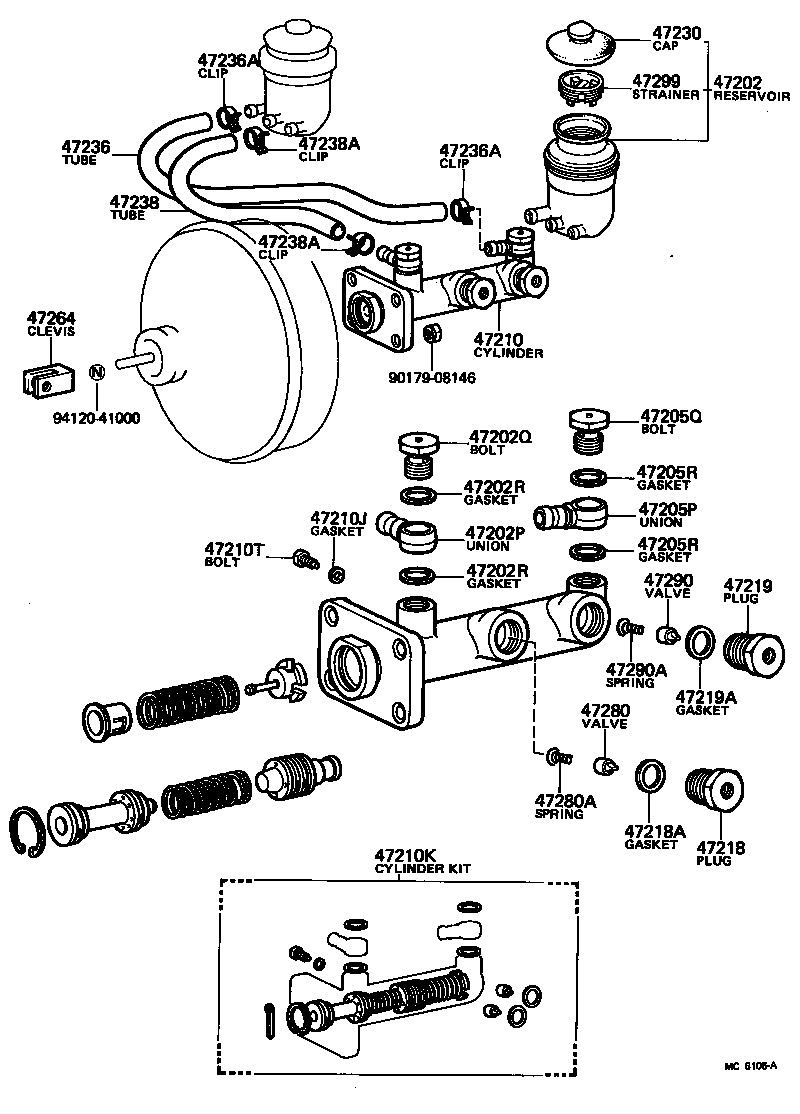

Brake Master Cylinder
26 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 47202 | Reservoir Sub-assy, Brake Master Cylinder |
| 47202P | Union, Reservoir(FOR BRAKE MASTER CYLINDER SIDE) |
| 47202Q | Bolt, Reservoir Union(FOR BRAKE MASTER CYLINDER SIDE) |
| 47202R | Gasket, Reservoir Union(FOR BRAKE MASTER CYLINDER SIDE) |
| 47205P | Union, Reservoir(FOR BRAKE MASTER CYLINDER REAR SIDE) |
| 47205Q | Bolt, Rsvr Union, NO.2(FOR BRAKE MASTER CYLINDER RR SIDE) |
| 47205R | Gasket, Reservoir Union(FOR BRAKE MASTER CYLINDER REAR SIDE) |
| 47210 | Cylinder Assy, Master, W/O Booster |
| 47210J | Gasket(FOR MASTER CYLINDER) |
| 47210K | Cylinder Kit, Brake Master |
| 47210T | Bolt(FOR BRAKE MASTER CYLINDER) |
| 47218 | Plug, Master Cylinder Fluid Outlet |
| 47218A | Gasket(FOR FLUID OUTLET PLUG) |
| 47219 | Plug, Master Cylinder Fluid Outlet(FOR REAR SIDE) |
| 47219A | Gasket(FOR FLUID OUTLET PLUG REAR SIDE) |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47236 | Tube, Reservoir Brake |
| 47236A | Clip(FOR RESERVOIR TUBE) |
| 47238 | Hose, Master Cylinder Bridge |
| 47238A | Clamp, Hose(FOR MASTER CYLINDER BRIDGE HOSE) |
| 47264 | Clevis, Master Cylinder Push Rod |
| 47280 | Valve Assy, Brake Master Cylinder Outlet Check |
| 47280A | Spring, Compression |
| 47290 | Valve Assy, Master Cylinder Outlet(FOR REAR SIDE) |
| 47290A | Spring, Compression(FOR FLUID OUTLET REAR SIDE) |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
