Toyota Toyoace

1979-03 → 1985-07 · chassis RY20,3#,LY20,3#,JY30 · catalogue 731230 · Europe

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

28 part groups · 2 illustrations

Illustrations

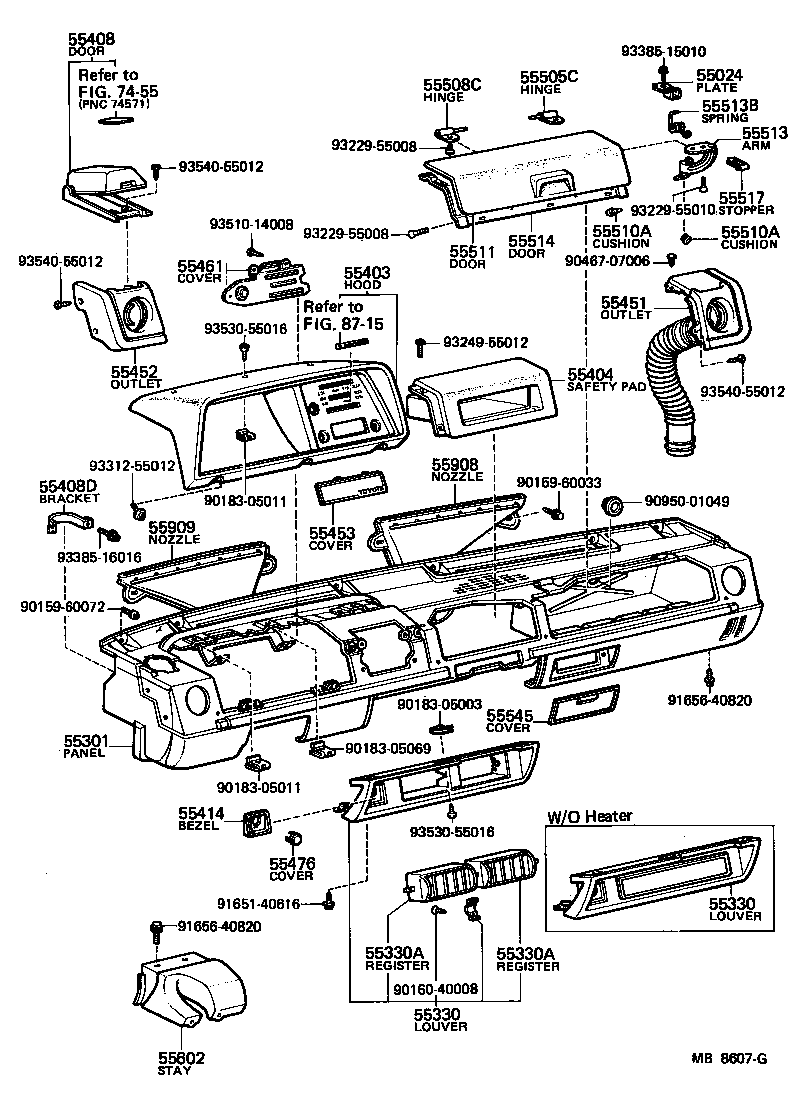

Figure MB8606G MB8606G 1979-03 → — Figure MB8607G MB8607G 1979-03 → —

Part groups

PNCDescription
55024 Plate Sub-assy, Torsion Spring
55301 Panel Sub-assy, Instrument
55308 Tray Sub-assy, Instrument Panel Under
55330 Louver Assy, Center Ventilator
55330A Register, Center Ventilator, Louver
55403 Hood Sub-assy, Meter
55404 Safety Pad Sub-assy, Instrument Panel, Upper
55408 Door Sub-assy, Reservoir Tank Service Hole
55408D Bracket Sub-assy, Reservoir
55414 Bezel, Cigar Lighter Hole
55451 Outlet, Air Outer, RH
55452 Outlet, Air Outer, LH
55453 Cover, Radio Tuner Opening
55461 Cover, Heater Control Hole
55476 Cover, Cigarette Lighter Hole
55476B Bezel, Choke Rod
55505C Hinge Sub-assy, Glove Compartment Door Male, RH
55508C Hinge Sub-assy, Glove Compartment Door Male, LH
55510A Cushion(FOR GLOVE COMPARTMENT DOOR)
55511 Door, Glove Compartment
55513 Arm, Glove Compartment Door Check
55513B Spring, Torsion(FOR GLOVE COMPARTMENT DOOR CHECK ARM)
55514 Door, Glove Compartment, Inner
55517 Stopper, Glove Compartment Door Arm
55545 Cover, Fuse Box Opening
55602 Stay Sub-assy, Steering Column, Upper
55908 Nozzle Sub-assy, Defroster, RH
55909 Nozzle Sub-assy, Defroster, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
