Toyota Toyoace
1979-03 → 1985-07 · chassis RY20,3#,LY20,3#,JY30 · catalogue 731230 · Europe
Discontinued model
Data version 1986-05

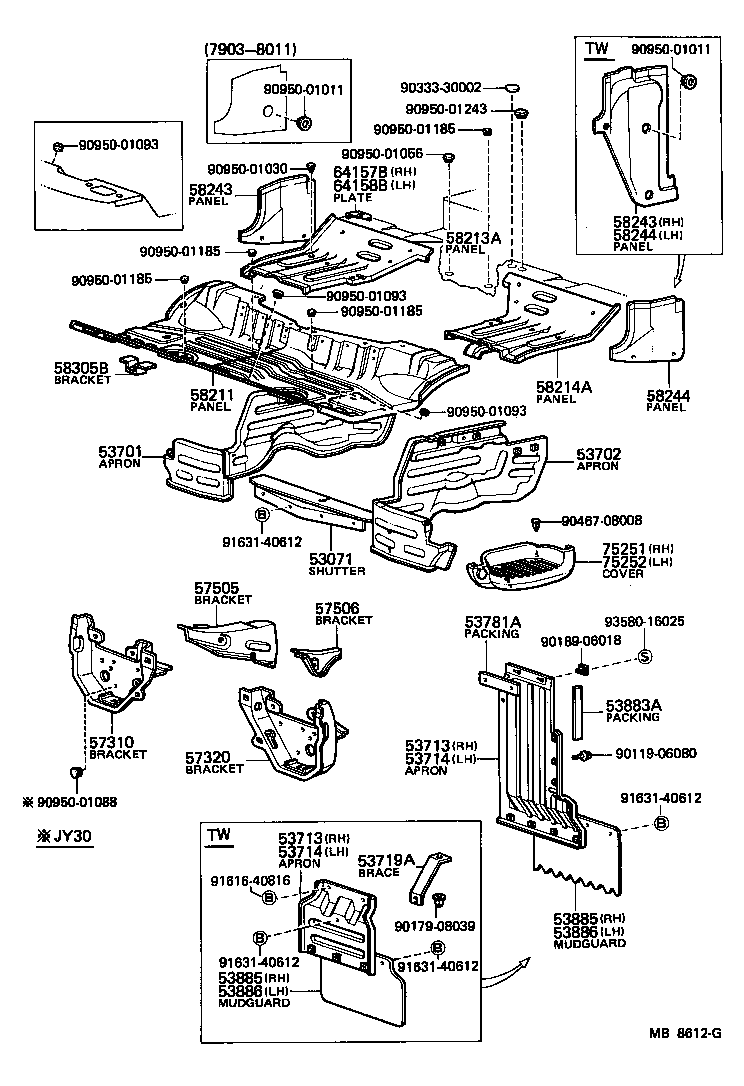

Front Floor Panel & Front Floor Member
45 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53071 | Shutter Sub-assy, Hot Air, Upper |
| 53713 | Apron, Fender Side, RH |
| 53714 | Apron, Fender Side, LH |
| 53719A | Brace, Fender Apron |
| 53781A | Packing, Frame Back |
| 53883A | Packing, Front Mudguard, Upper |
| 53885 | Mudguard, Front RH |
| 53886 | Mudguard, Front LH |
| 57310 | Bracket Assy, Front Mounting, RH |
| 57320 | Bracket Assy, Front Mounting, LH |
| 57505 | Bracket Sub-assy, Parking Brake, NO.1 |
| 57506 | Bracket Sub-assy, Parking Brake, NO.2 |
| 58211 | Panel, Front Floor |
| 58211B | Pad, Front Floor Panel |
| 58213A | Panel, Seat Floor, RH |
| 58214A | Panel, Seat Floor, LH |
| 58215A | Panel, Seat Floor Side |
| 58243 | Panel, Rear Floor Side, RH |
| 58244 | Panel, Rear Floor Side, LH |
| 58246B | Packing, Engine Cover Hinge |
| 58277 | Cover, Transmission Inspection Hole |
| 58278 | Packing, Transmission Inspection Hole Cover |
| 58278A | Silencer, Transmission Inspection Hole Cover |
| 58297B | Bracket, Seat Floor Side Balance Spring |
| 58305B | Bracket Assy, Heater Hose |
| 58410 | Cover, Engine Service Hole |
| 58410D | Cushion, NO.1 |
| 58410E | Cushion, NO.3 |
| 58423 | Packing, Engine Service Hole Cover, NO.2 |
| 58424 | Packing, Engine Service Hole Cover, NO.1 |
| 58424A | Packing, Engine Service Hole Cover Sub, NO.1 |
| 58430 | Cover Assy, Sub-floor Service Hole |
| 58437A | Packing, Engine Service Hole Cover Sub, NO.1 |
| 58437B | Packing, Engine Service Hole Cover Sub, NO.2 |
| 58466B | Spring, Engine Cover Balance |
| 58467D | Support, Engine Cover Spring |
| 58468A | Cover, Engine Cover Spring |
| 58731 | Cover, Fuel Tank Inspection Hole |
| 58731A | Packing, Inspection Hole Cover |
| 58805 | Catch Sub-assy, Engine Service Hole Cover |
| 58805A | Spacer, Engine Cover Catch |
| 64157B | Plate, Back Frame, Rear Side, RH |
| 64158B | Plate, Back Frame, Rear Side, LH |
| 75251 | Cover, Step Plate Front, RH |
| 75252 | Cover, Step Plate Front, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
