Toyota Toyoace
1979-03 → 1985-07 · chassis RY20,3#,LY20,3#,JY30 · catalogue 731230 · Europe
Discontinued model
Data version 1986-05
Switch & Relay & Computer

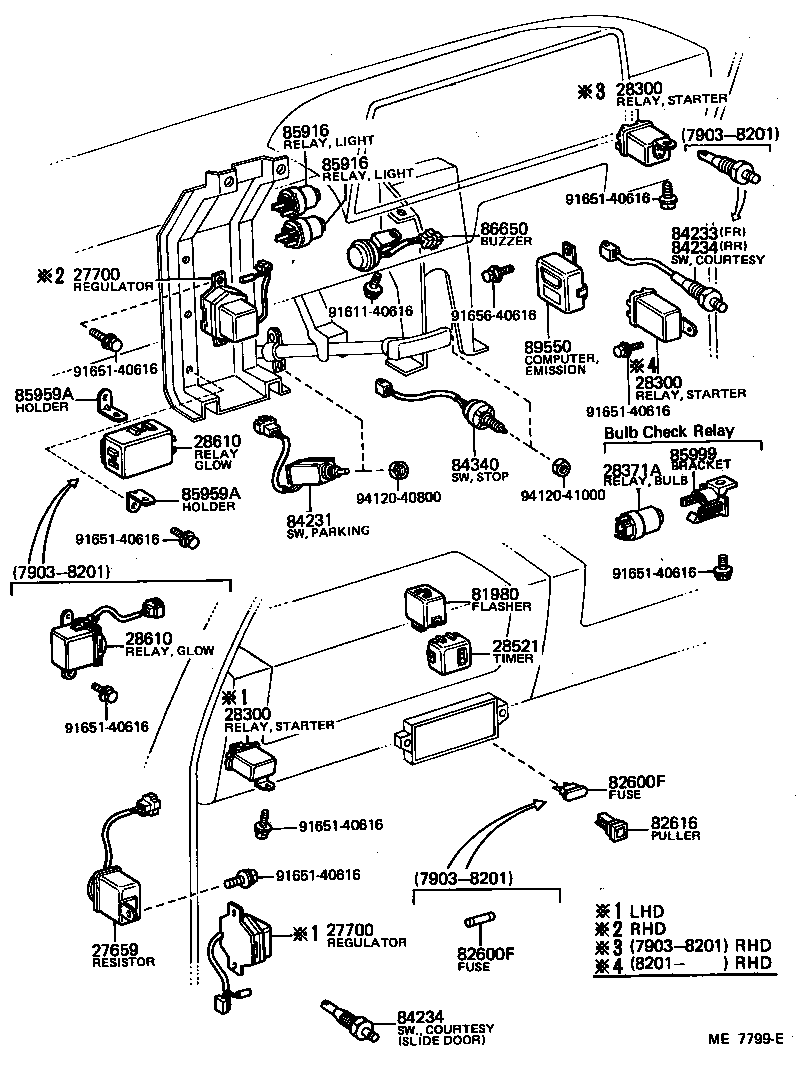

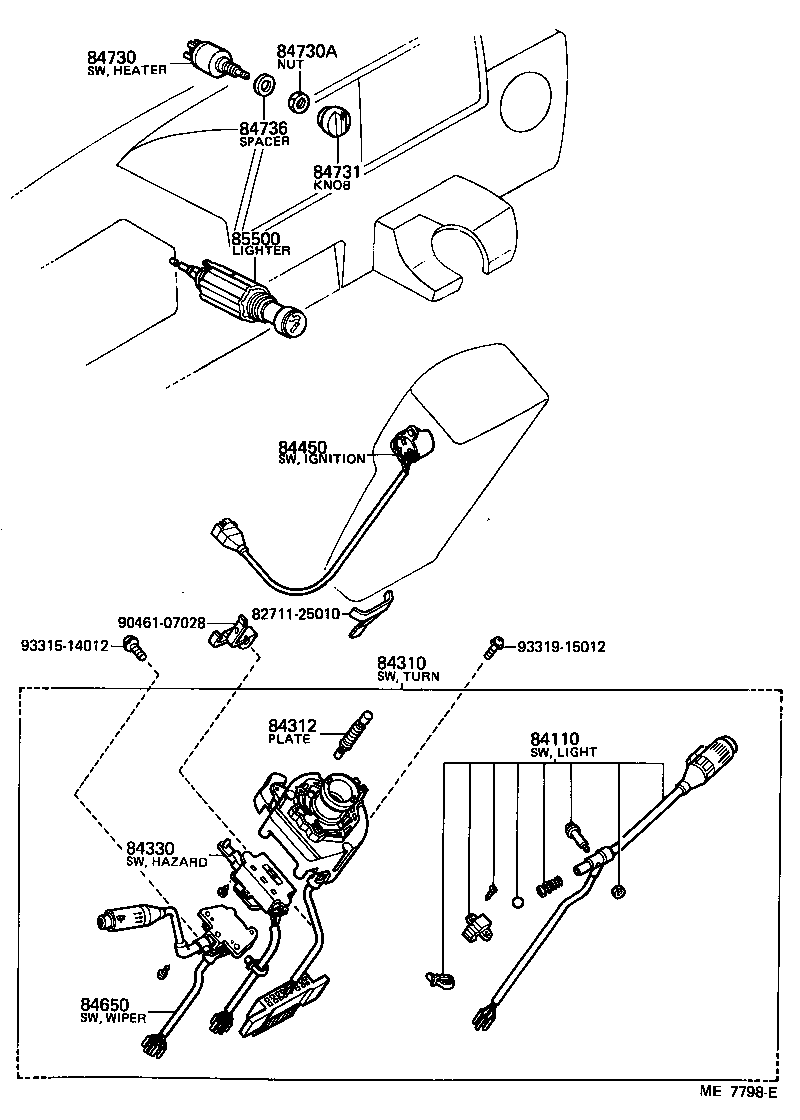

38 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 27659 | Resistor, Solenoid |
| 27700 | Regulator Assy, Generator |
| 28300 | Relay Assy, Starter |
| 28371A | Relay, Bulb Check |
| 28521 | Timer, Preheating |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 83320 | Gage Assy, Fuel Sender |
| 83361 | Gasket, Fuel Sender Gage |
| 83390 | Switch Assy, Vacuum Warning |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84110 | Switch Assy, Light Control, NO.1 |
| 84210 | Switch Assy, Back-up Lamp |
| 84210T | Sensor Assy, Shift Point |
| 84231 | Switch Assy, Courtesy Lamp (FOR PARKING BRAKE) |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84310 | Switch Assy, Turn Signal |
| 84312 | Plate, Horn Contact |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84461 | Switch, Level Warning |
| 84650 | Switch Assy, Windshield Wiper |
| 84730 | Switch Assy, Heater Blower |
| 84730A | Nut, Heater Blower Switch |
| 84731 | Knob, Heater Blower Switch |
| 84736 | Spacer, Heater Blower Switch |
| 85500 | Lighter Assy, Cigarette |
| 85916 | Relay, Light Control |
| 85959A | Holder, Relay |
| 85999 | Bracket, Combination Relay |
| 86650 | Buzzer Assy, Vacuum Indicator |
| 89427 | Switch, Temperature Detect |
| 89550 | Computer Assy, Emission Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
