Toyota Toyoace

1979-03 → 1985-07 · chassis RY20,3#,LY20,3#,JY30 · catalogue 731230 · Europe

Discontinued model Data version 1986-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

13 part groups · 2 illustrations

Illustrations

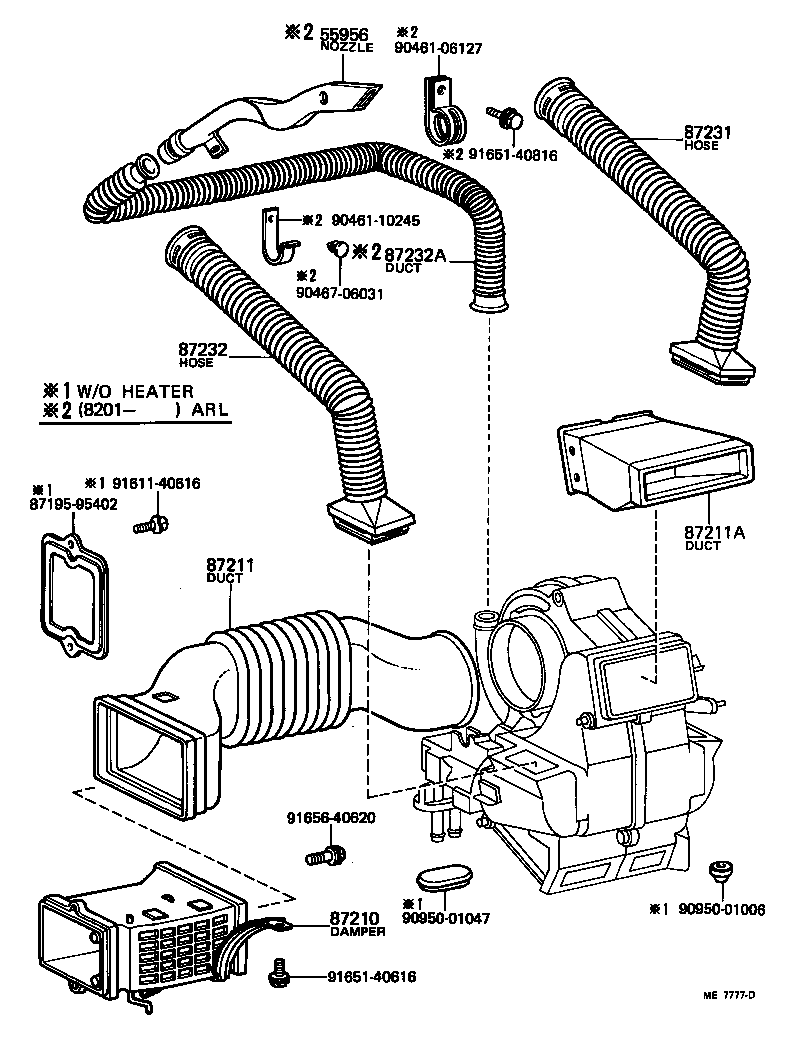

Figure MEB280A MEB280A 1979-03 → — Figure ME7777D ME7777D 1979-03 → —

Part groups

PNCDescription
55905 Cable Sub-assy, Defrost Control
55906 Cable Sub-assy, Heater Control
55907 Cable Sub-assy, Heater Air Inlet Butterfly
55910 Control Assy, Heater OR Boost Ventilator
55913 Cable Sub-assy, Boost Vent Control
55937 Knob, Heater Control Lever
55956 Nozzle, Side Defroster
87210 Damper Assy, Air
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87231 Hose, Heater Defroster, RH
87232 Hose, Heater Defroster, LH
87232A Duct, Heater Defroster, Side NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
