Toyota DYNA150
1985-08 → 1987-08 · chassis YY5#,6#,LY60 · catalogue 731240 · Europe
Discontinued model
Data version 1987-12

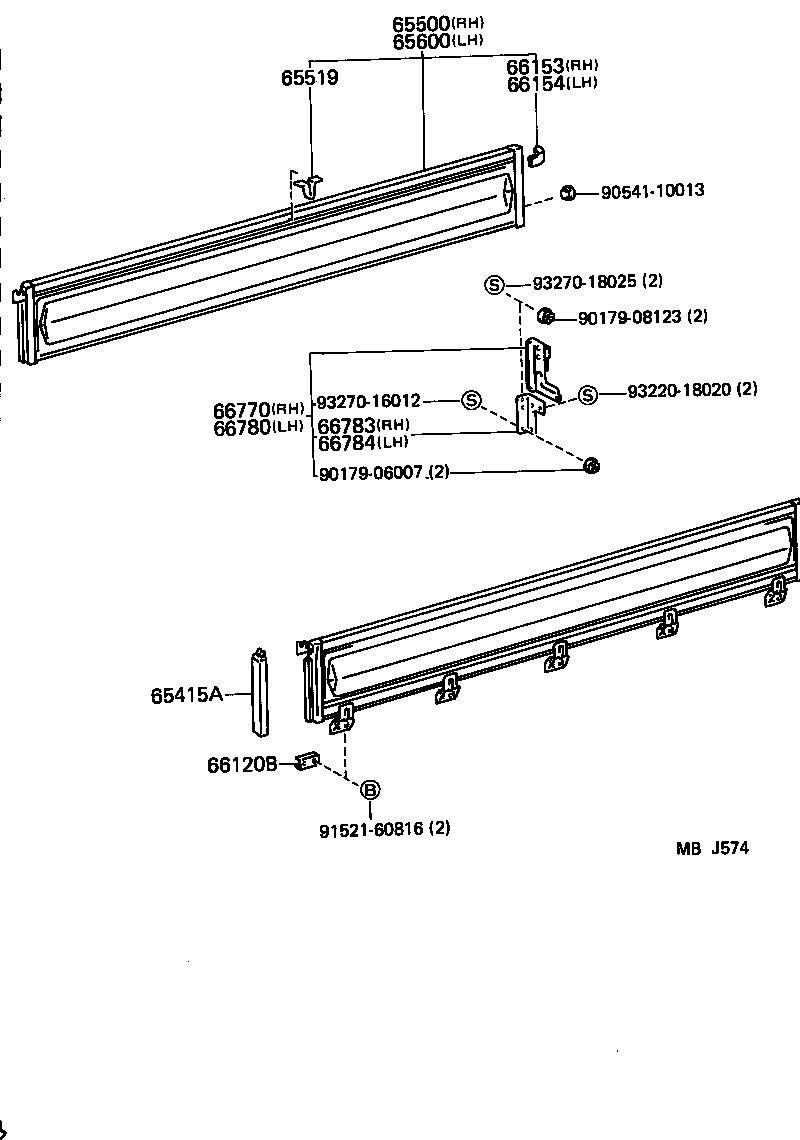

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 65415A — Protector, Guard Flame | ||||
| 65415-95012 |
Protector, Guard Flame
1985-08 → 1987-08
ended
|
LY60,YY6# (T2,T3) GEN | — | |
| 65500 — Panel Assy, Rear Body Side, RH | ||||
| 65500-95067 |
Panel Assy, Rear Body Side, RH
1985-08 → 1987-08
ended
|
LY60,YY6# TW | — | |
| 65500-95069 |
Panel Assy, Rear Body Side, RH
1985-08 → 1987-08
ended
|
LY60,YY6# (T2,T3) GEN | — | |
| 65500-95411 |
Panel Assy, Rear Body Side, RH
1985-08 → 1987-08
ended
|
LY60,YY61 EUR | — | |
| 65500-95A09 |
Panel Assy, Rear Body Side, RH
1985-08 → 1987-08
ended
|
YY5# | — | |
| 65519 — Bracket, Top Rail | ||||
| 65519-95010 |
Bracket, Top Rail
1985-08 → 1987-08
ended
|
LY60,YY6# (T2,T3) GEN | — | |
| 65600 — Panel Assy, Rear Body Side, LH | ||||
| 65600-95069 |
Panel Assy, Rear Body Side, LH
1985-08 → 1987-08
ended
|
LY60,YY6# TW | — | |
| 65600-95071 |
Panel Assy, Rear Body Side, LH
1985-08 → 1987-08
ended
|
LY60,YY6# (T2,T3) GEN | — | |
| 65600-95409 |
Panel Assy, Rear Body Side, LH
1985-08 → 1987-08
ended
|
LY60,YY61 EUR | — | |
| 65600-95A08 |
Panel Assy, Rear Body Side, LH
1985-08 → 1987-08
ended
|
YY5# | — | |
| 66120B — Retainer, Side Gate Hinge, Lower | ||||
| 66115-95012 note |
Retainer, Side Gate Hinge, Lower
1985-08 → 1987-08
ended
|
LY60,YY61 WT GEN | — | |
| 66115-95012 note |
Retainer, Side Gate Hinge, Lower
1985-08 → 1987-08
ended
|
LY60,YY6# T3 GEN | — | |
| 66115-95012 |
Retainer, Side Gate Hinge, Lower
1985-08 → 1987-08
ended
|
LY60,YY61 EUR | — | |
| 66115-95013 note |
Retainer, Side Gate Hinge, Lower
1985-08 → 1987-08
ended
|
LY60,YY61 WT GEN | — | |
| 66115-95018 note |
Retainer, Side Gate Hinge, Lower
1985-08 → 1987-08
ended
|
LY60,YY61 WT GEN | — | |
| 66115-95018 note |
Retainer, Side Gate Hinge, Lower
1985-08 → 1987-08
ended
|
LY60,YY6# T3 GEN | — | |
| 66153 — Latch, Tail Gate Female, RH | ||||
| 66153-95012 |
Latch, Tail Gate Female, RH
1985-08 → 1987-08
ended
|
LY60,YY5#,6# TW | — | |
| 66153-95111 |
Latch, Tail Gate Female, RH
1985-08 → 1987-08
ended
|
LY60,YY61 EUR | — | |
| 66153-95A00 |
Latch, Tail Gate Female, RH
1985-08 → 1987-07
ended
|
LY60,YY6# (T2,T3) GEN | — | |
| 66153-95A01 |
Latch, Tail Gate Female, RH
1987-07 → 1987-08
ended
|
LY60,YY6# (T2,T3) GEN | — | |
| 66154 — Latch, Tail Gate Female, LH | ||||
| 66153-95012 |
Latch, Tail Gate Female, LH
1985-08 → 1987-08
ended
|
LY60,YY5#,6# TW | — | |
| 66154-95111 |
Latch, Tail Gate Female, LH
1985-08 → 1987-08
ended
|
LY60,YY61 EUR | — | |
| 66154-95A00 |
Latch, Tail Gate Female, LH
1985-08 → 1987-07
ended
|
LY60,YY6# (T2,T3) GEN | — | |
| 66154-95A01 |
Latch, Tail Gate Female, LH
1987-07 → 1987-08
ended
|
LY60,YY6# (T2,T3) GEN | — | |
| 66770 — Support Sub-assy, Side Gate, RH | ||||
| 66770-95013 |
Support Sub-assy, Side Gate, RH
1985-08 → 1987-08
ended
|
LY60,YY6# (T2,T3) GEN | — | |
| 66780 — Support Sub-assy, Side Gate, LH | ||||
| 66780-95013 |
Support Sub-assy, Side Gate, LH
1985-08 → 1987-08
ended
|
LY60,YY6# (T2,T3) GEN | — | |
| 66783 — Bracket, Side Gate Support, RH | ||||
| 66783-95012 |
Bracket, Side Gate Support, RH
1985-08 → 1987-08
ended
|
LY60,YY6# (T2,T3) GEN | — | |
| 66784 — Bracket, Side Gate Support, LH | ||||
| 66784-95012 |
Bracket, Side Gate Support, LH
1985-08 → 1987-08
ended
|
LY60,YY6# (T2,T3) GEN | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
