Toyota DYNA150
1985-08 → 1987-08 · chassis YY5#,6#,LY60 · catalogue 731240 · Europe
Discontinued model
Data version 1987-12

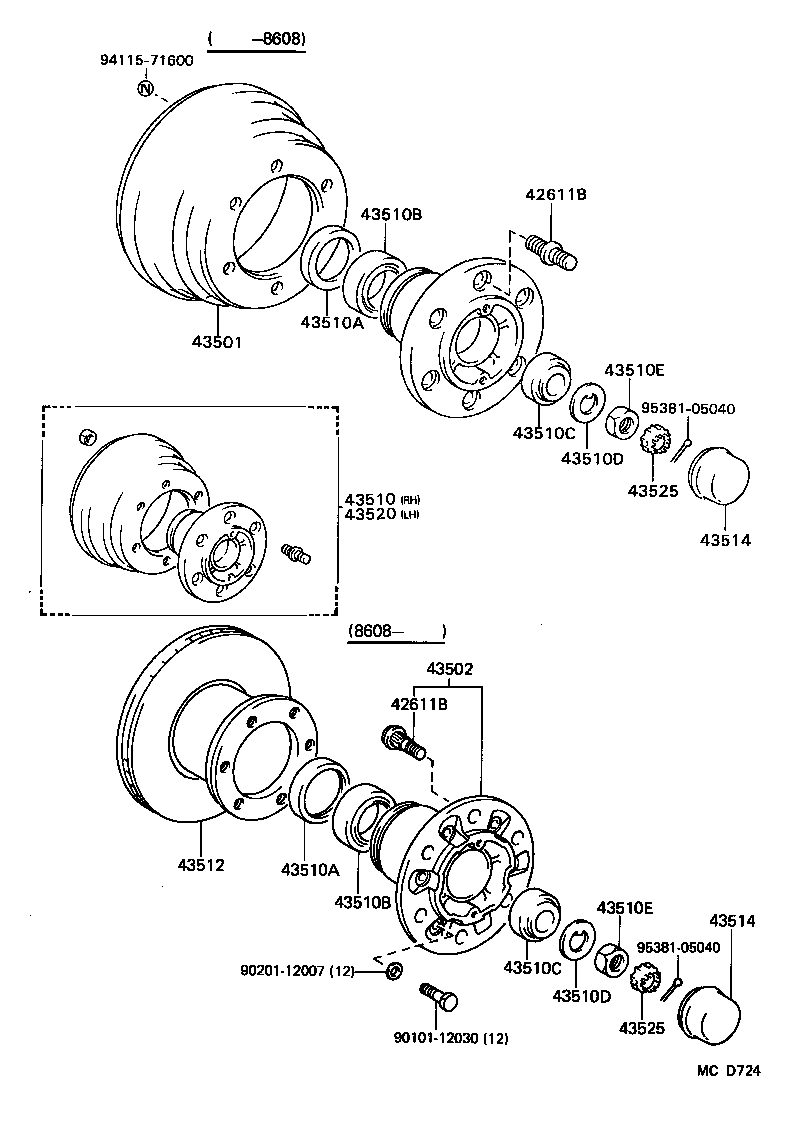

Front Axle Hub
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 42611B | Bolt, Hub (FOR FRONT AXLE) |
| 43501 | Drum Sub-assy, Front Brake |
| 43502 | Hub Sub-assy, Front Axle |
| 43510 | Hub And Brake Drum Assy, Front Axle, RH |
| 43510A | Seal, Oil (FOR FRONT AXLE HUB) |
| 43510B | Bearing, Tapered Roller (FOR FRONT AXLE INNER BEARING) |
| 43510C | Bearing, Tapered Roller (FOR FRONT AXLE OUTER BEARING) |
| 43510D | Washer, Claw (FOR STEERING KNUCKLE WASHER) |
| 43510E | Nut (FOR STEERING KNUCKLE) |
| 43512 | Disc, Front |
| 43514 | Cap, Front Hub Grease |
| 43520 | Hub And Brake Drum Assy, Front Axle, LH |
| 43525 | Cap, Front Wheel Adjusting Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
