Toyota DYNA150

1985-08 → 1987-08 · chassis YY5#,6#,LY60 · catalogue 731240 · Europe

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

22 part groups · 5 illustrations

Illustrations

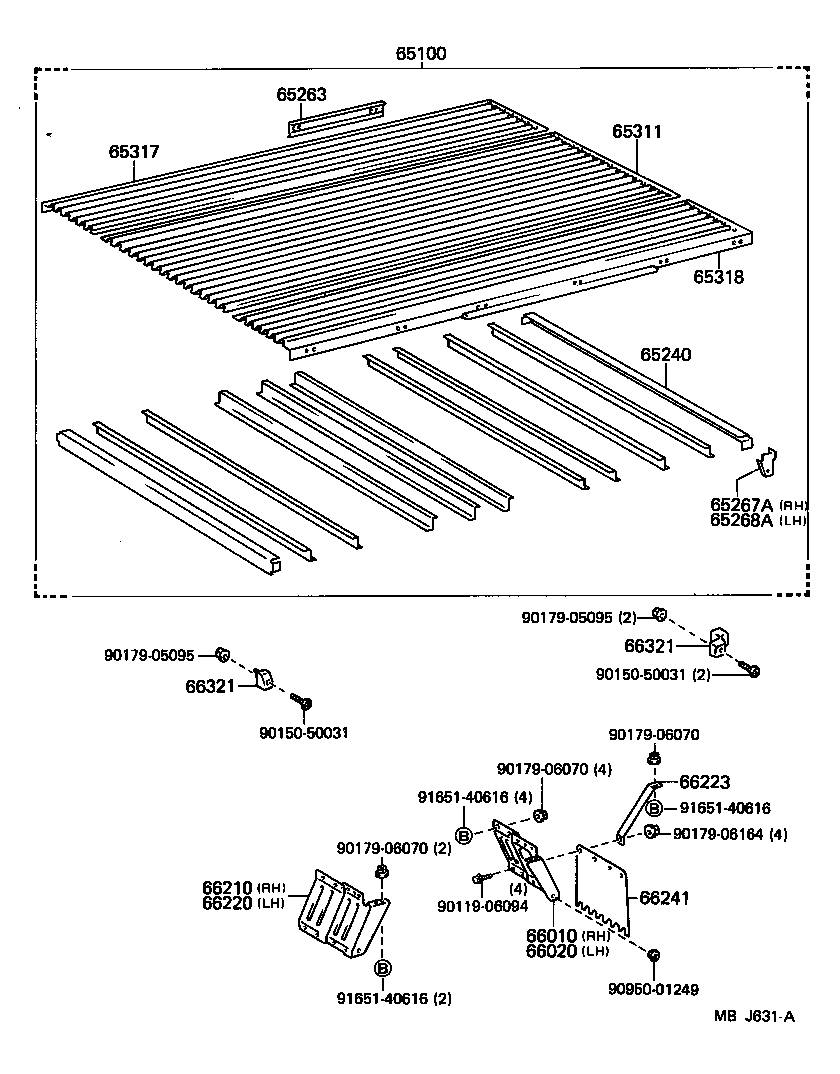

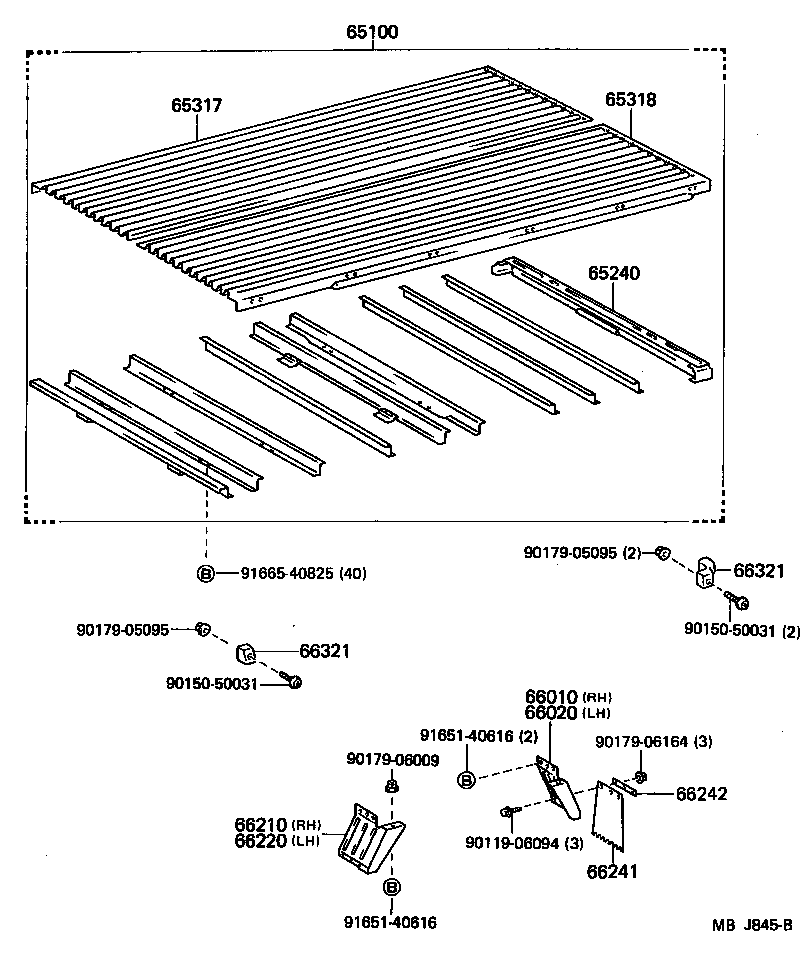

Figure MBJ563B MBJ563B 1985-08 → — Figure MBJ845B MBJ845B 1985-08 → — Figure MBJ631A MBJ631A 1985-08 → — Figure MBJ567B MBJ567B 1985-08 → — Figure MBJ633 MBJ633 1985-08 → —

Part groups

PNCDescription
65023 Bracket Sub-assy, Rear Cross Sill Mounting, RH
65024 Bracket Sub-assy, Rear Cross Sill Mounting, LH
65100 Floor Assy, Rear Body
65240 Crossmember, Rear Body Floor, Tail
65263 Reinforcement, Floor Side Frame
65267A Bracket, Gate Rubber Bumper, RH
65268A Bracket, Gate Rubber Bumper, LH
65311 Panel, Floor, Center
65317 Panel, Floor Side, RH
65318 Panel, Floor Side, LH
65329 Bracket, Rear Fender
66010 Fender Assy, Rear Body, Rear RH
66016 Gusset Sub-assy, Gate Hinge, RH
66017 Gusset Sub-assy, Gate Hinge, LH
66020 Fender Assy, Rear Body, Rear LH
66210 Fender Assy, Rear Body, Front RH
66220 Fender Assy, Rear Body, Front LH
66223 Stay, Rear Fender Rear Plate
66241 Mudguard, Rear
66242 Plate, Rear Mudguard Set Retainer
66311A Hook, Rope, NO.1
66321 Bumper, Gate Rubber
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
