Toyota DYNA150

1985-08 → 1987-08 · chassis YY5#,6#,LY60 · catalogue 731240 · Europe

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Guard Frame & Tail Gate

19 part groups · 3 illustrations

Illustrations

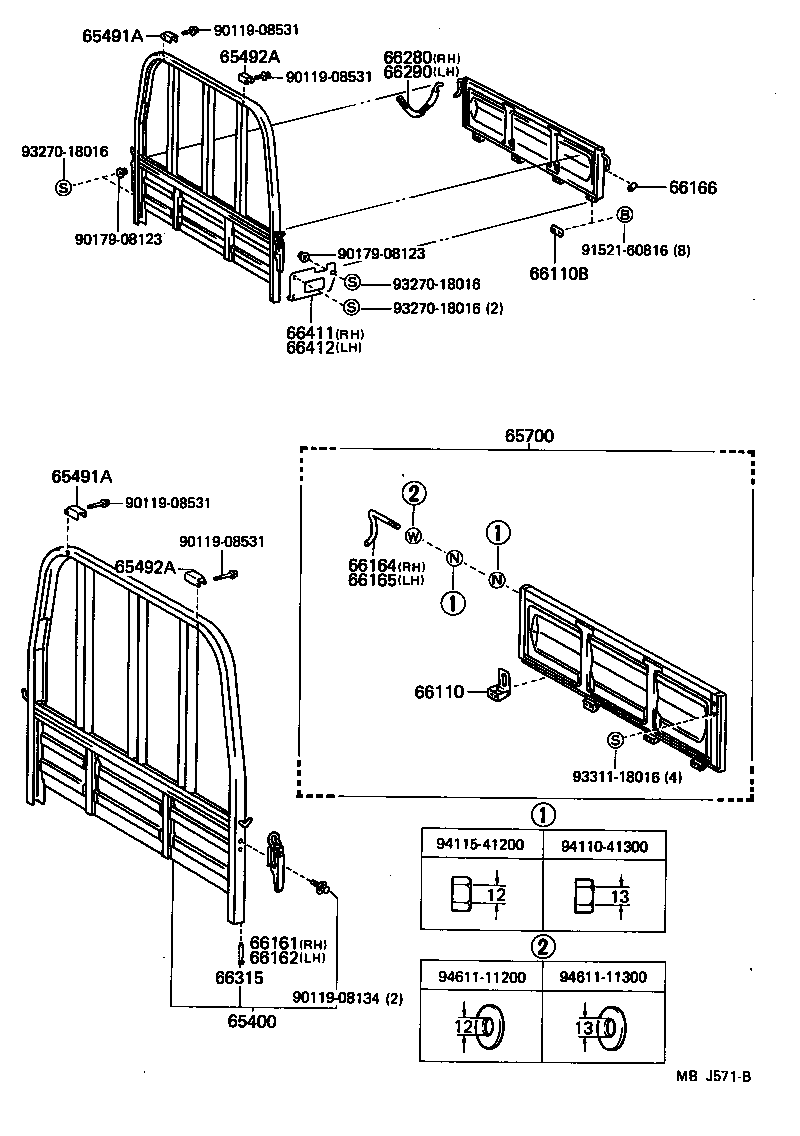

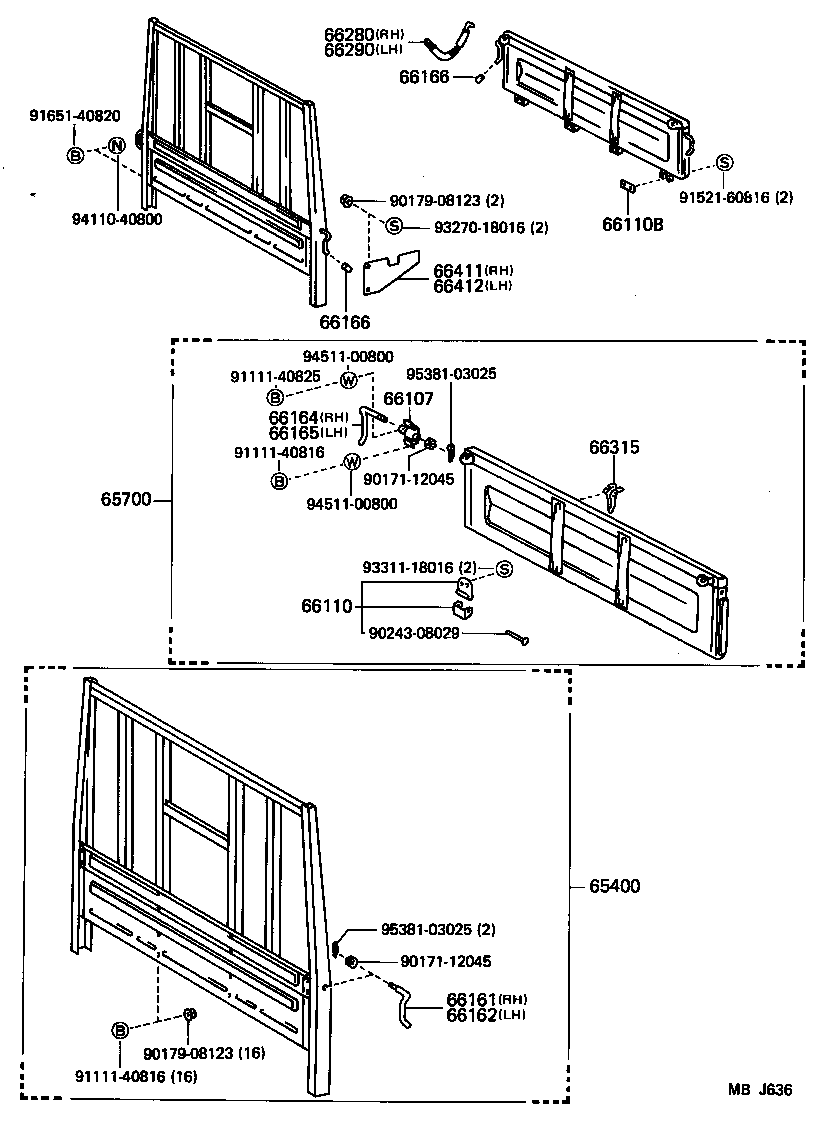

Figure MBJ570A MBJ570A 1985-08 → — Figure MBJ571B MBJ571B 1985-08 → — Figure MBJ636 MBJ636 1985-08 → —

Part groups

PNCDescription
65400 Frame Assy, Rear Body Guard
65491A Stop, Guard Frame Load Slide, RH
65492A Stop, Guard Frame Load Slide, LH
65700 Gate Assy, Rear Body Tail
66107 Bracket Sub-assy, Tail Gate, RH
66110 Hinge Assy, Tail Gate
66110B Retainer, Tail Gate Hinge, Lower
66121A Bolt, Tail Gate Male
66161 Handle, Side Gate Latch, RH
66162 Handle, Side Gate Latch, LH
66164 Handle, Tail Gate Latch, RH
66165 Handle, Tail Gate Latch, LH
66166 Cap, Gate Latch Handle
66170 Latch Assy, Rear Body Tail Gate
66280 Chain Assy, Tail Gate, RH
66290 Chain Assy, Tail Gate, LH
66315 Hook, Rope
66411 Bracket, Guard Frame, RH
66412 Bracket, Guard Frame, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
