Toyota DYNA150

1985-08 → 1987-08 · chassis YY5#,6#,LY60 · catalogue 731240 · Europe

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Mounting

18 part groups · 4 illustrations

Illustrations

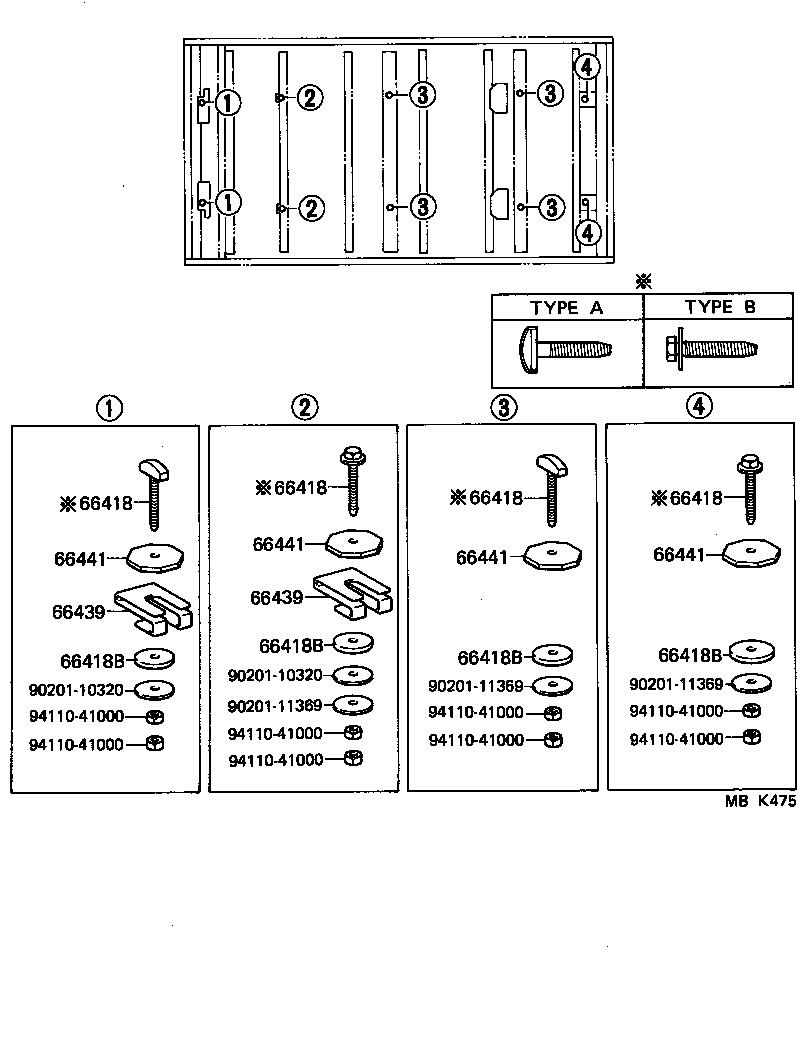

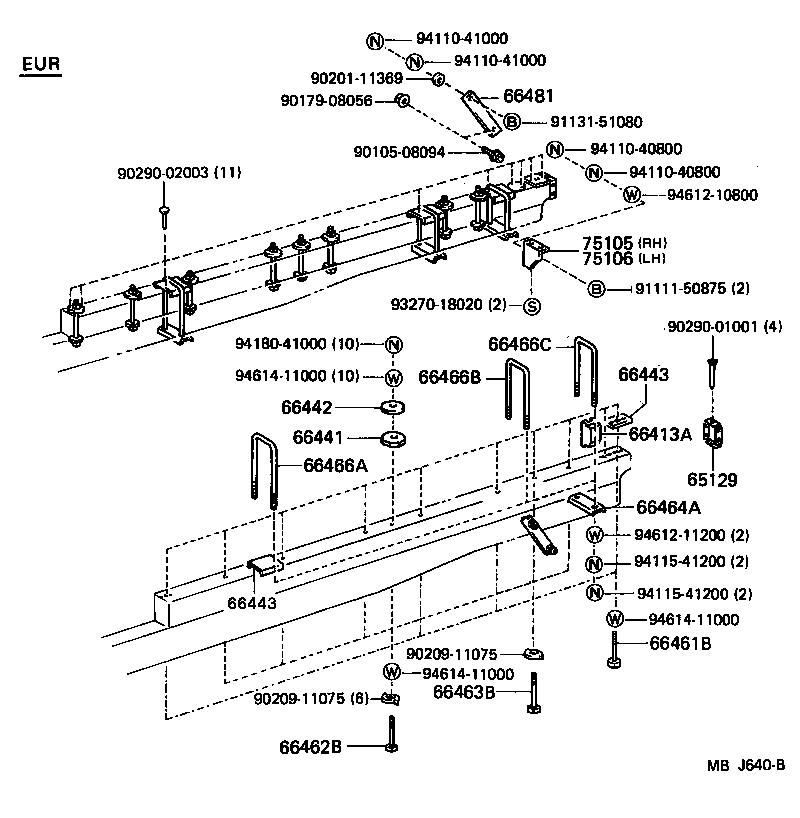

Figure MBK474 MBK474 1985-08 → — Figure MBK475 MBK475 1985-08 → — Figure MBK476A MBK476A 1985-08 → — Figure MBJ640B MBJ640B 1985-08 → —

Part groups

PNCDescription
65129 Cover, Main Sill Rear End
66413A Spacer, Side Rail
66418 Bolt, Mounting
66418B Shim, Mounting
66439 Shim, Support
66441 Shim, Mounting, NO.1
66442 Shim, Mounting, NO.2
66443 Shim, Mounting, NO.3
66461B Bolt, Sill Main, NO.1
66462B Bolt, Sill Main, NO.2
66463B Bolt, Sill Main, NO.3
66464A Plate, U Bolt
66466A Bolt, U, NO.1
66466B Bolt, U, NO.2
66466C Bolt, U, NO.3
66481 Brace, Sill TO Frame, RH
75105 Support Sub-assy, Main Sill, RH
75106 Support Sub-assy, Main Sill, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
