Toyota DYNA150

1985-08 → 1987-08 · chassis YY5#,6#,LY60 · catalogue 731240 · Europe

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

27 part groups · 3 illustrations

Illustrations

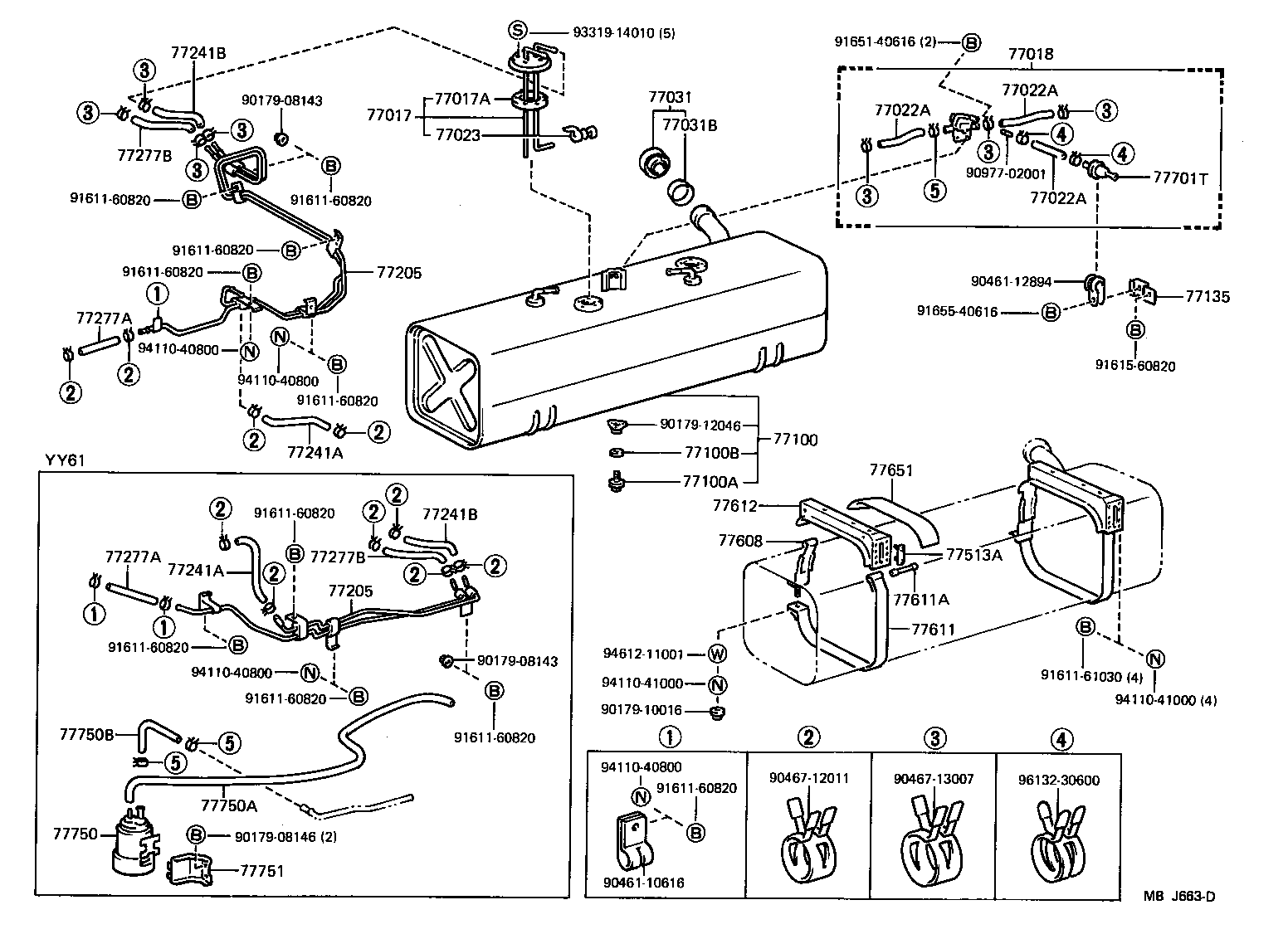

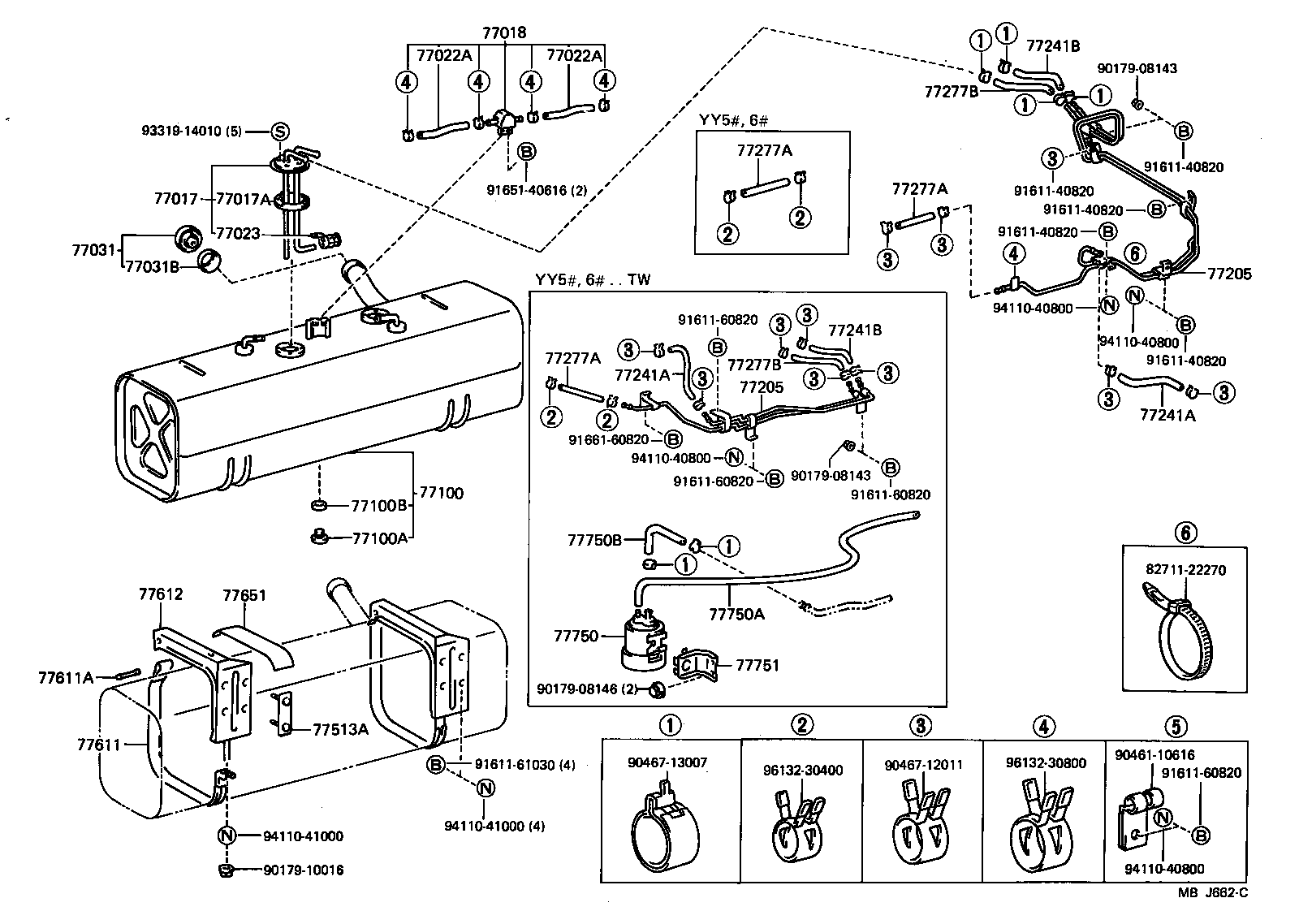

Figure MBJ661B MBJ661B 1985-08 → — Figure MBJ662C MBJ662C 1985-08 → — Figure MBJ663D MBJ663D 1985-08 → —

Part groups

PNCDescription
77017 Tube Sub-assy, Fuel And Evaporation Vent
77017A Gasket, Fuel Tank Vent
77018 Valve Sub-assy, Fuel Vapour Separate
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77031 Cap Assy, Fuel Tank
77031B Gasket (FOR FUEL TANK CAP)
77100 Tank Assy, Fuel
77100A Plug(FOR FUEL TANK)
77100B Gasket(FOR FUEL TANK)
77135 Bracket, Check Valve
77205 Tube Sub-assy, Fuel Main
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77277A Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1)
77277B Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1)
77513A Retainer, Tank Bracket
77608 Band Sub-assy, Fuel Tank, NO.2
77611 Band, Fuel Tank
77611A Pin (FOR FUEL TANK BAND)
77612 Bracket Sub-assy, Fuel Tank
77651 Packing, Fuel Tank Bracket
77701T Valve, Check (FOR MAIN FUEL TANK)
77750 Canister Assy, Charcoal
77750A Hose, Fuel, NO.1 (FOR CHARCOAL CANISTER)
77750B Hose, Fuel, NO.2 (FOR CHARCOAL CANISTER)
77751 Bracket, Charcoal Canister Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
