Toyota DYNA150
1985-08 → 1987-08 · chassis YY5#,6#,LY60 · catalogue 731240 · Europe
Discontinued model
Data version 1987-12
Meter
19 part groups · 4 illustrations
Part groups

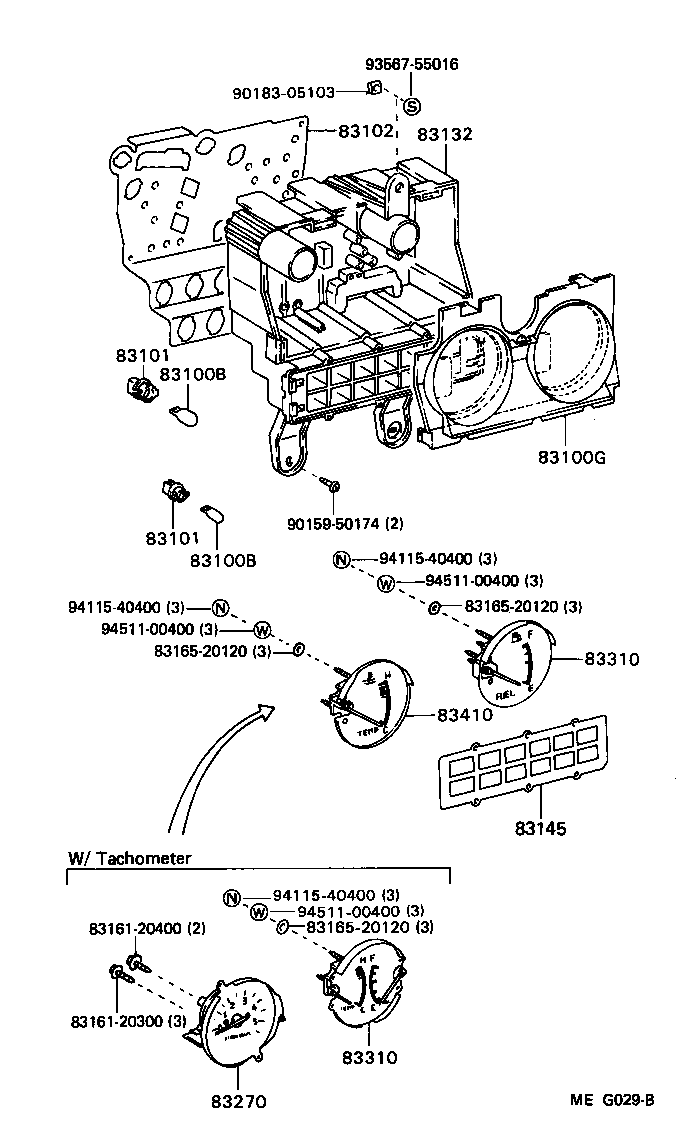

| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83100C | Connector, Combination Meter |
| 83100G | Glass, Combination Meter |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83110 | Speedometer Assy |
| 83110B | Bulb, Speedometer |
| 83110G | Glass, Speedometer |
| 83128 | Knob, Trip Counter |
| 83132 | Case, Combination Meter |
| 83132A | Case, Meter |
| 83145 | Lens, Meter, NO.1 |
| 83180 | Detector Assy, Revolution |
| 83270 | Tachometer Assy, Engine |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |

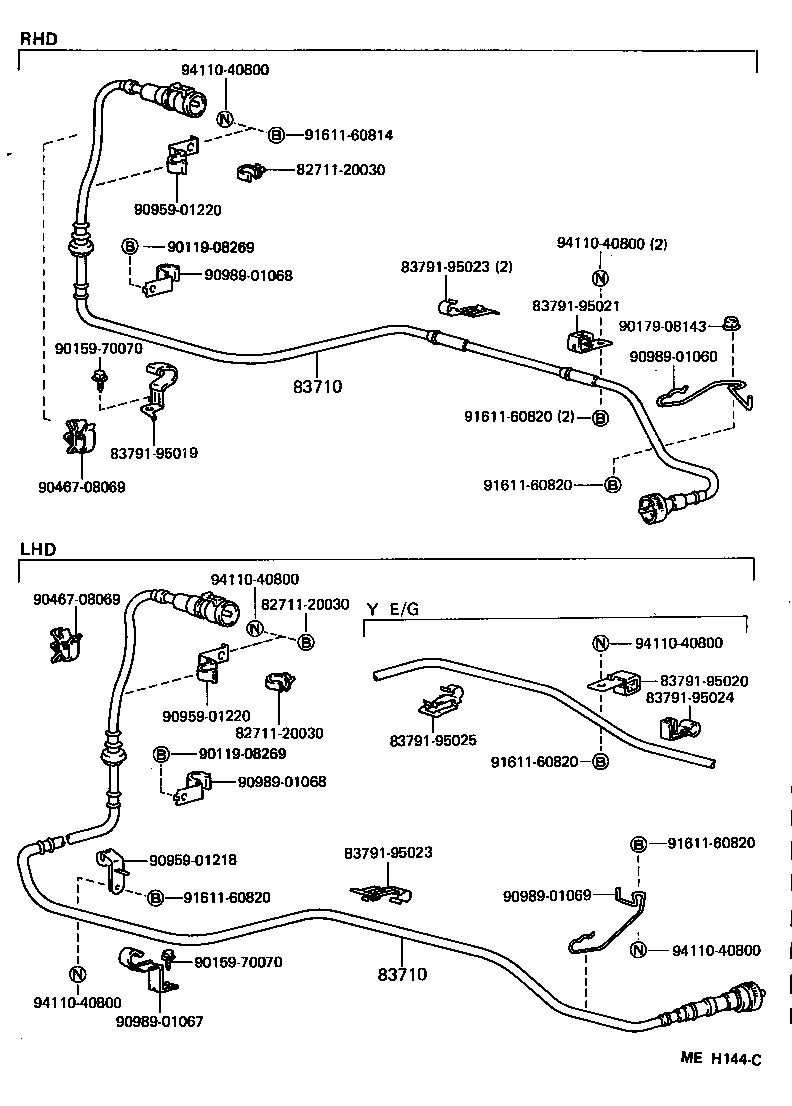

| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83910 | Clock Assy |
| 83915 | Bracket, Clock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
