Toyota DYNA150

1985-08 → 1987-08 · chassis YY5#,6#,LY60 · catalogue 731240 · Europe

Discontinued model Data version 1987-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

14 part groups · 3 illustrations

Illustrations

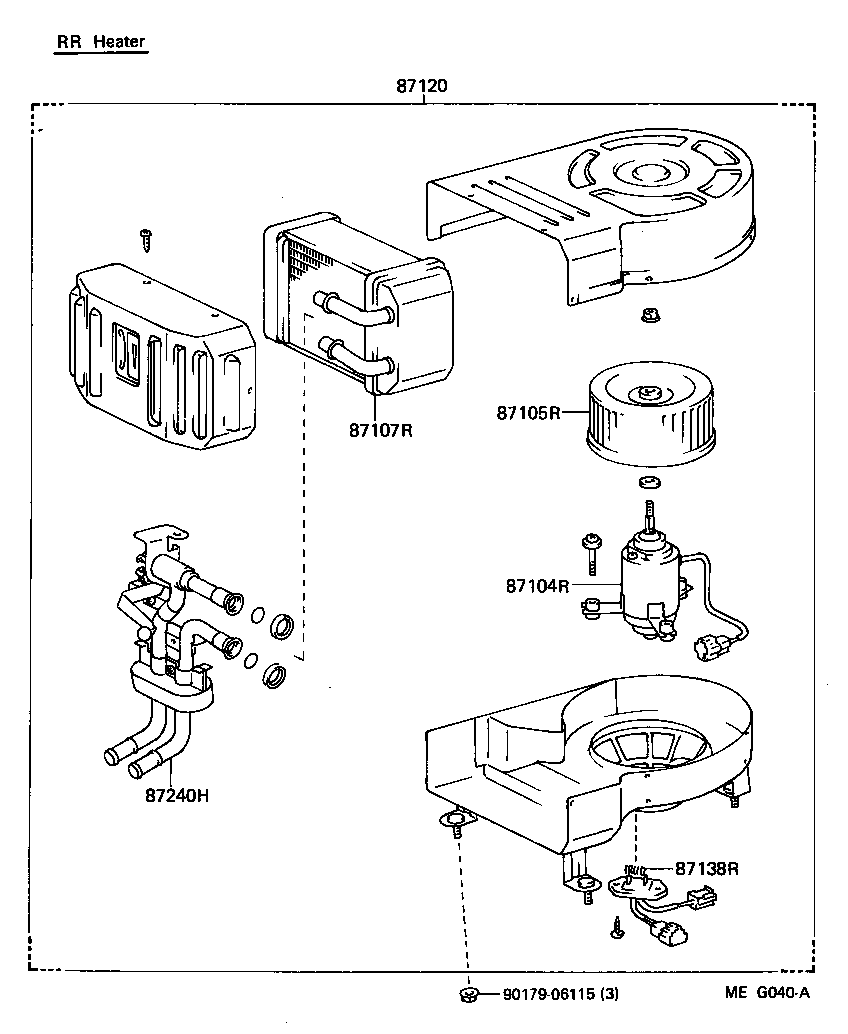

Figure MEG038 MEG038 1985-08 → — Figure MEG039 MEG039 1985-08 → — Figure MEG040A MEG040A 1985-08 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87104R Motor Sub-assy, Rear Heater Blower
87105 Fan Sub-assy, Heater Blower
87105R Fan Sub-assy, Rear Heater Blower
87107 Unit Sub-assy, Heater Radiator
87107R Unit Sub-assy, Rear Heater
87110 Heater Assy
87110B Plug, Hole (FOR HEATER PIPE HOLE)
87110C Plug, Hole (FOR HEATER INSTALLATION HOLE)
87120 Heater Assy, Rear
87138 Resistor, Heater Blower
87138R Resistor, Rear Heater Blower
87240H Valve Assy, Water Unit
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
