Toyota DYNA150
1985-08 → 1987-08 · chassis YY5#,6#,LY60 · catalogue 731240 · Europe
Discontinued model
Data version 1987-12

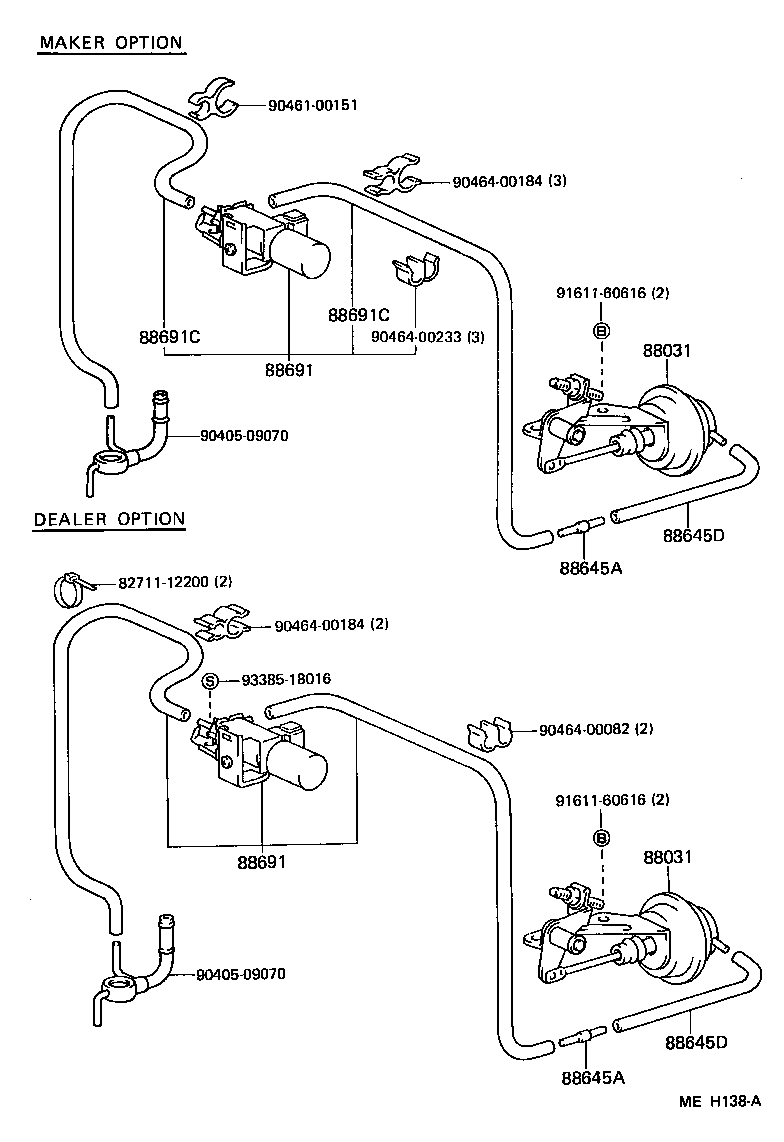

Heating & Air Conditioning - Vacuum Piping
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88031 | Actuator Set, Idle-up |
| 88645A | Union (FOR IDLE UP DEVICE) |
| 88645D | Hose (FOR IDLE UP DEVICE) |
| 88691 | Valve, Magnet (FOR IDLE UP DEVICE) |
| 88691C | Hose, Vacuum (FOR IDLE UP DEVICE), NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
