Factory parts data · Europe

Toyota Dyna 150

1995-05 → 2001-10 · chassis LY21#,YY211 · catalogue 731260 · Europe

Discontinued model Data version 2002-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

Figure 11A096

11A096 1995-05 → —

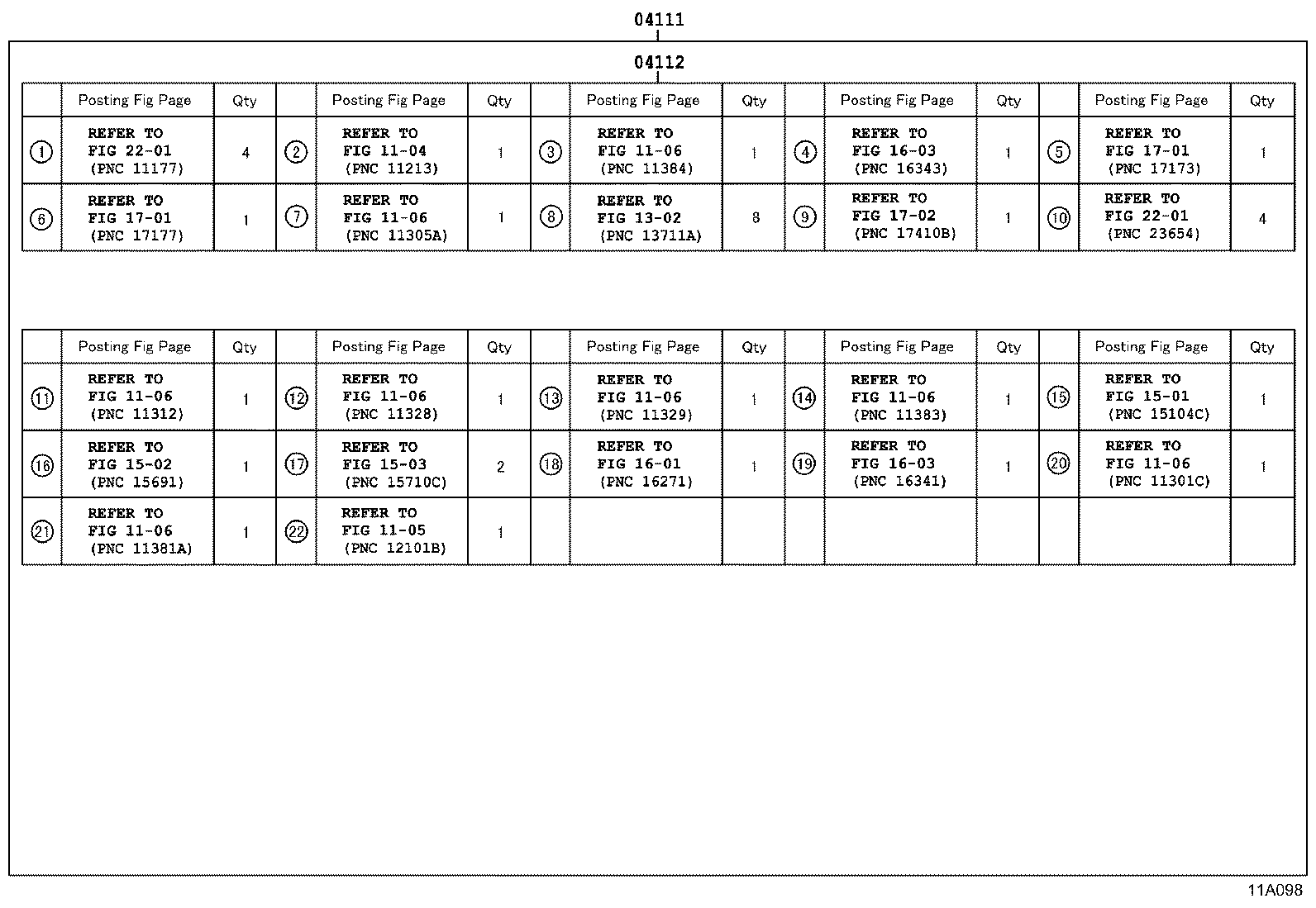

Figure 11A098

11A098 1995-05 → —

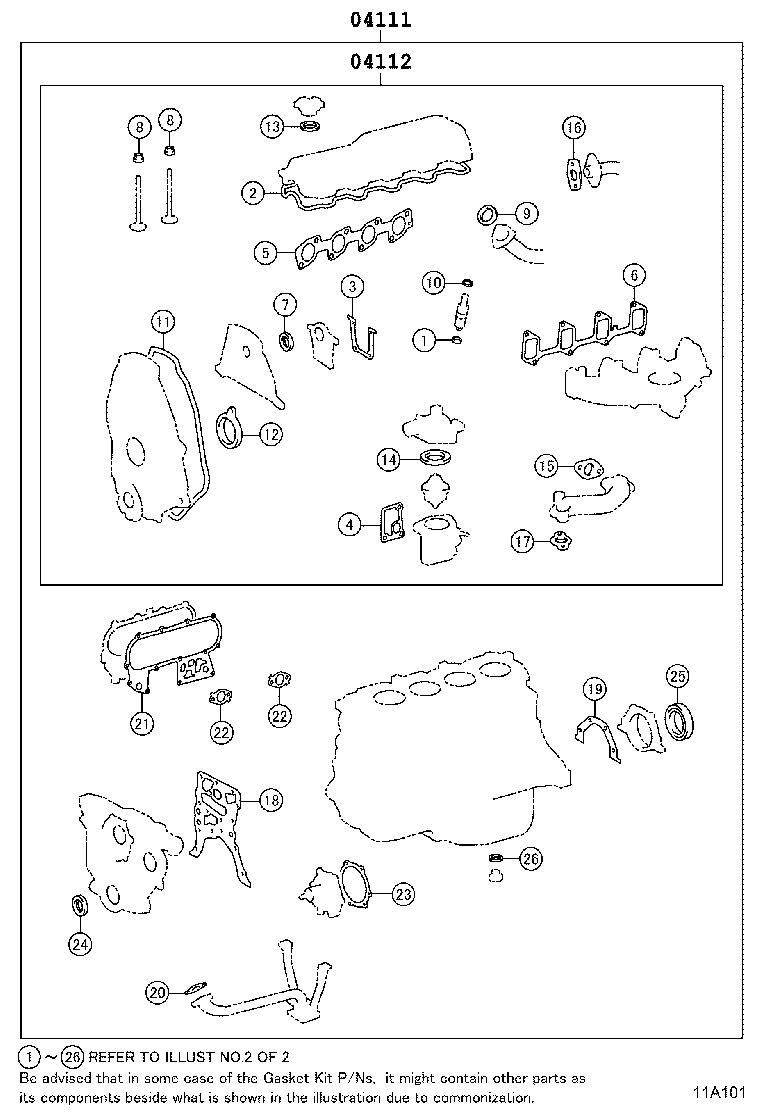

Figure 11A101

11A101 1998-05 → —

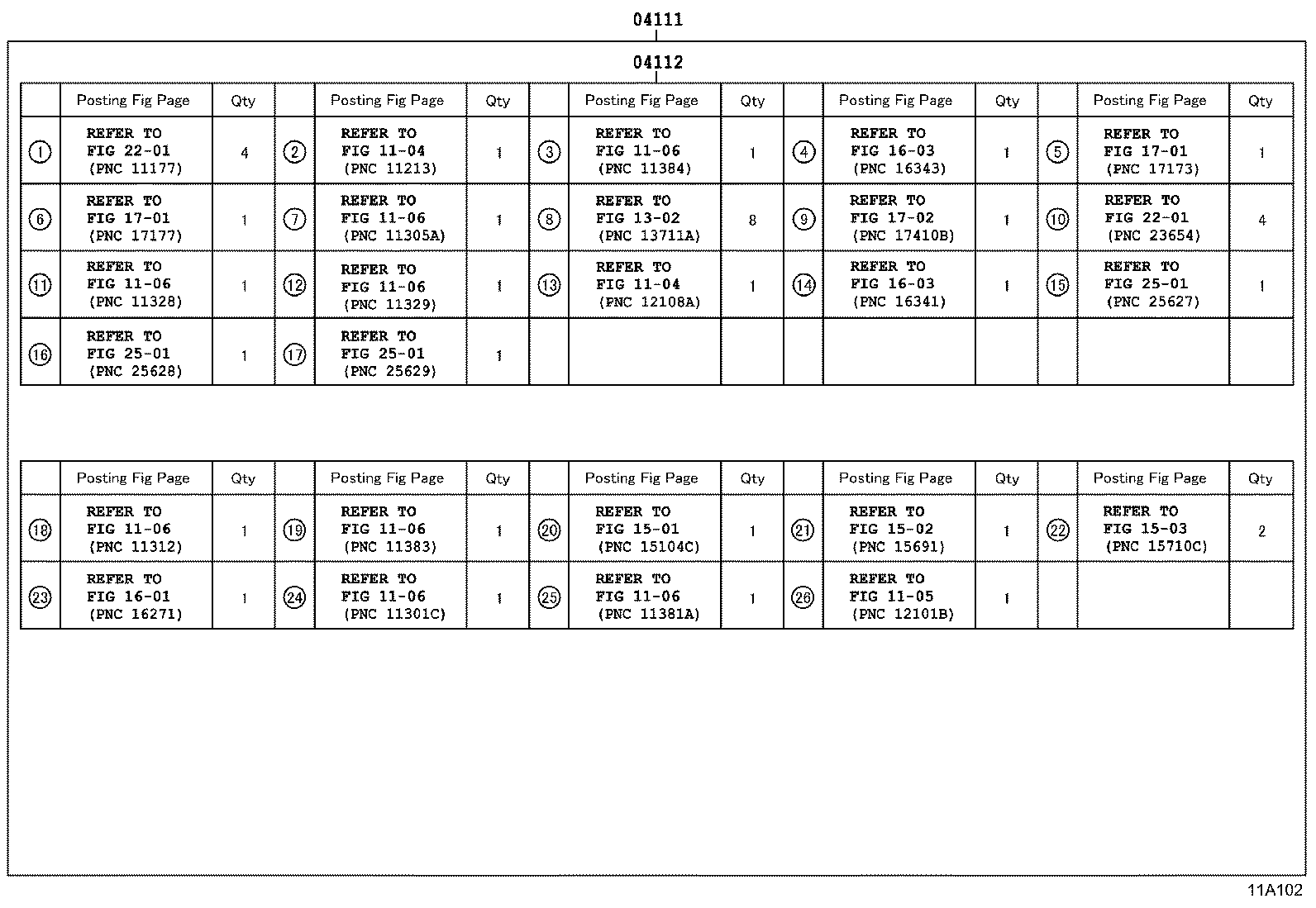

Figure 11A102

11A102 1998-05 → —

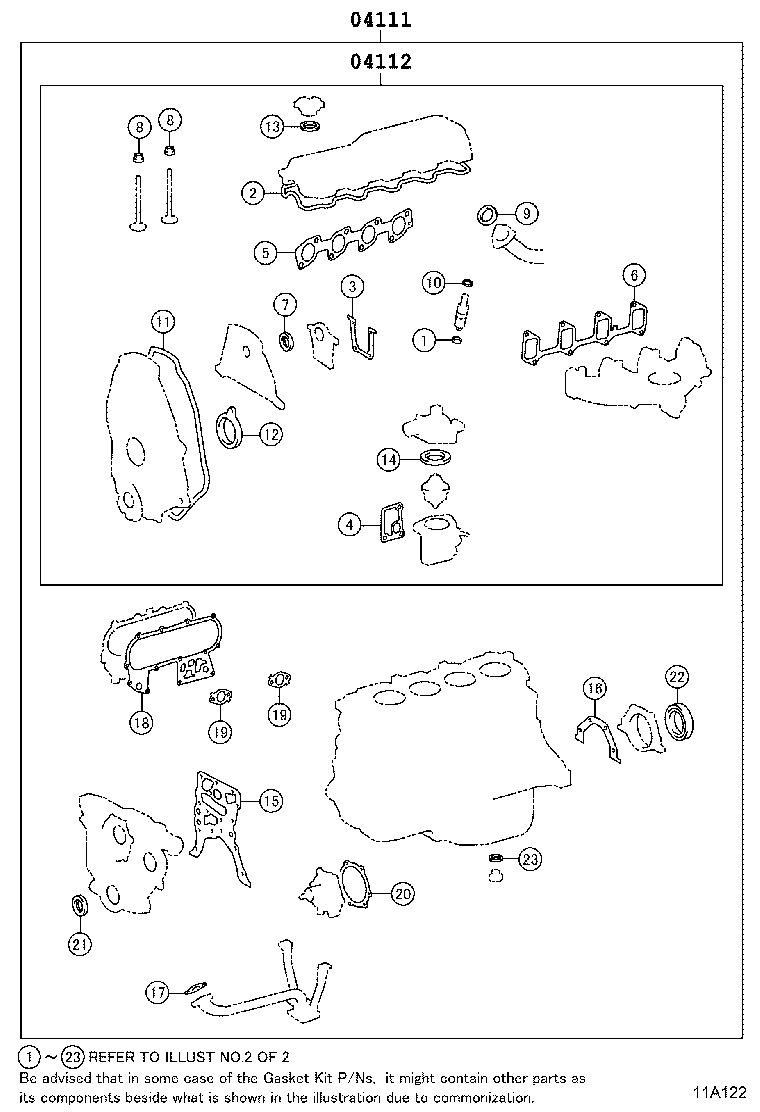

Figure 11A122

11A122 1999-09 → —

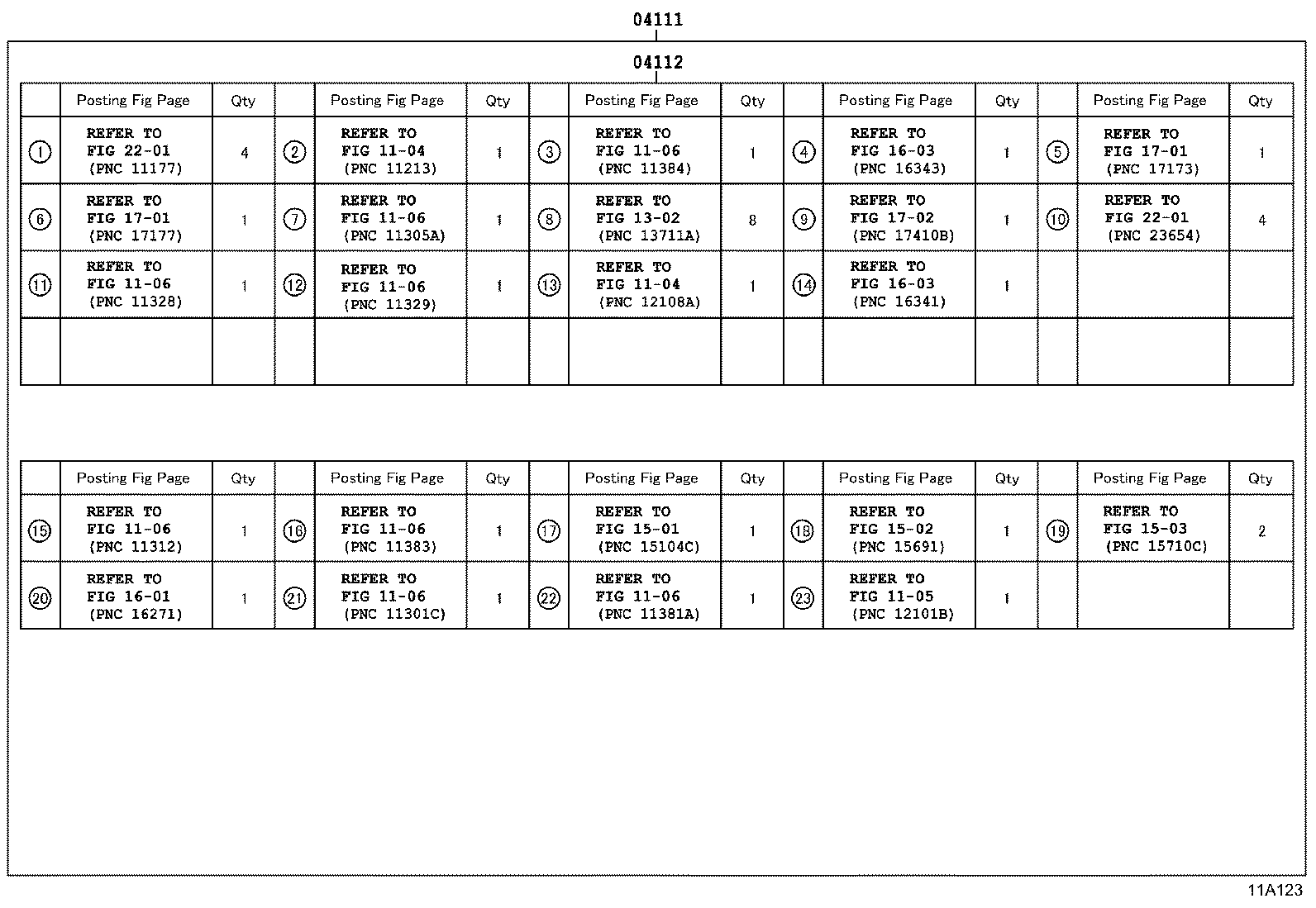

Figure 11A123

11A123 1999-09 → —

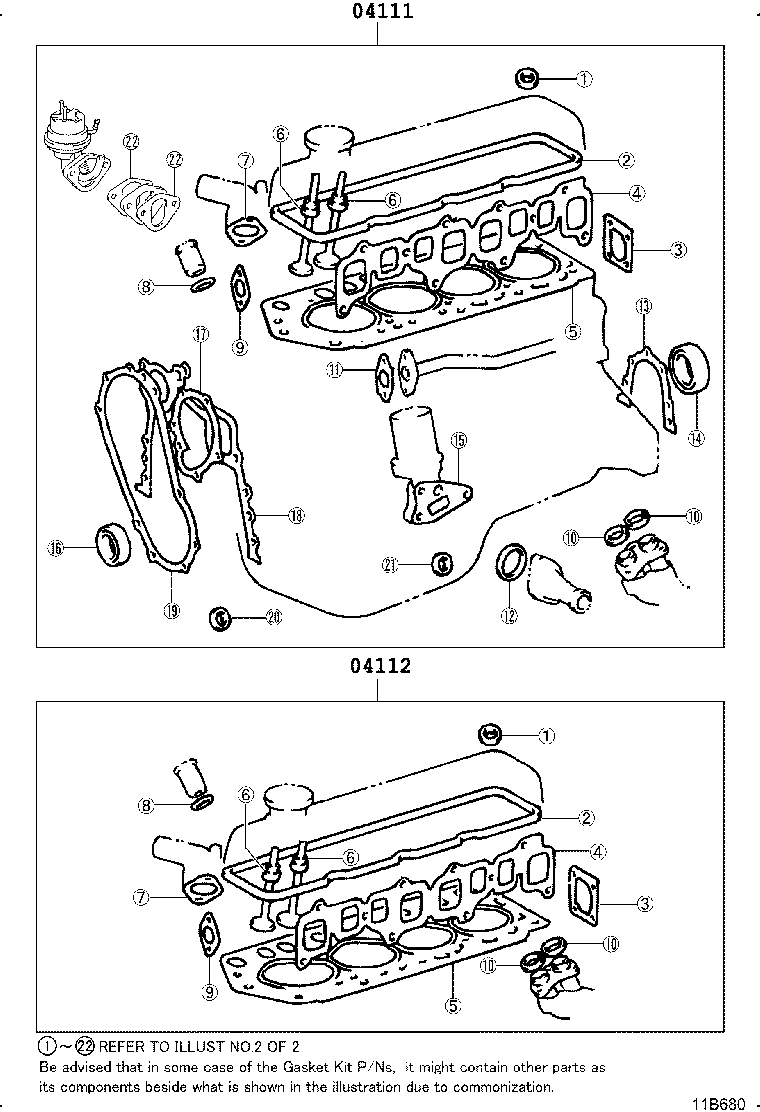

Figure 11B680

11B680 1995-05 → —

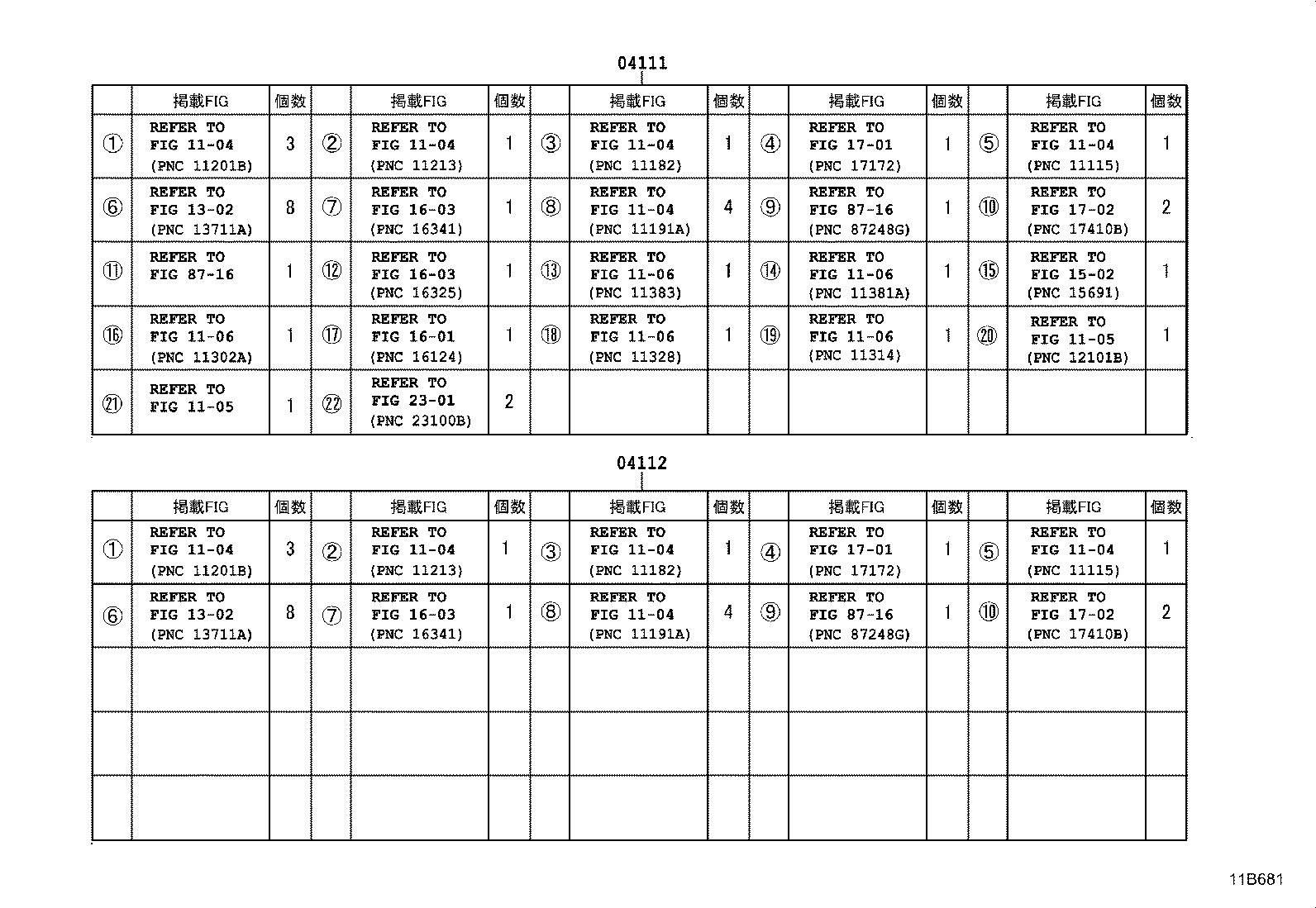

Figure 11B681

11B681 1995-05 → —

Part groups

PNC	Description
04111	Gasket Kit, Engine Overhaul
04112	Gasket Kit, Engine Valve Grind

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
