Toyota Dyna 150

1995-05 → 2001-10 · chassis LY21#,YY211 · catalogue 731260 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

13 part groups · 2 illustrations

Illustrations

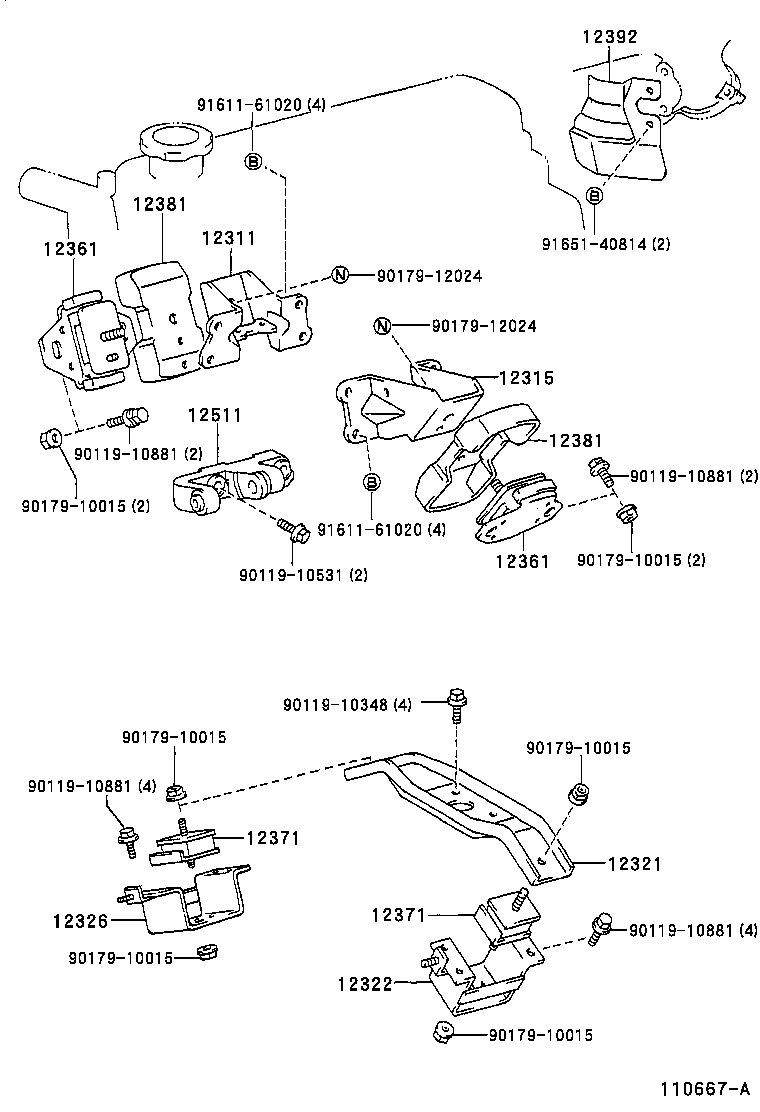

Figure 110707B 110707B 1995-05 → — Figure 110667A 110667A 1995-05 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12322 Bracket, Engine Mounting, Rear NO.2
12326 Bracket, Engine Mounting Stay
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12381 Stabilizer, Engine Mounting
12392 Insulator, Engine Mounting Heat, Front LH
12511 Bracket, Alternator, NO.1
12581 Insulator, Cylinder Block, NO.1
12582 Insulator, Cylinder Block, NO.2
12583 Insulator, Cylinder Block, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
