Toyota Dyna 150

1995-05 → 2001-10 · chassis LY21#,YY211 · catalogue 731260 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

20 part groups · 4 illustrations

Illustrations

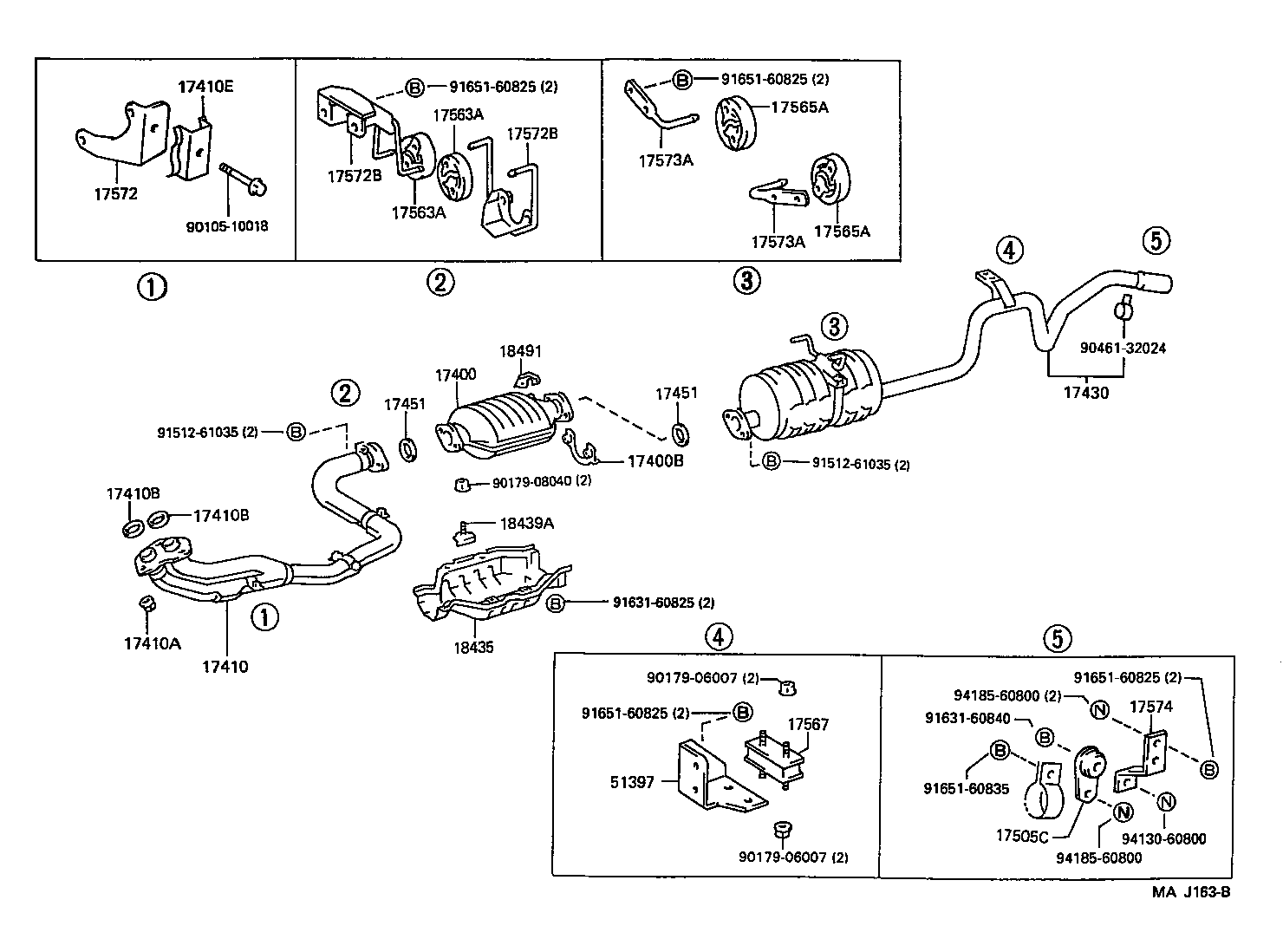

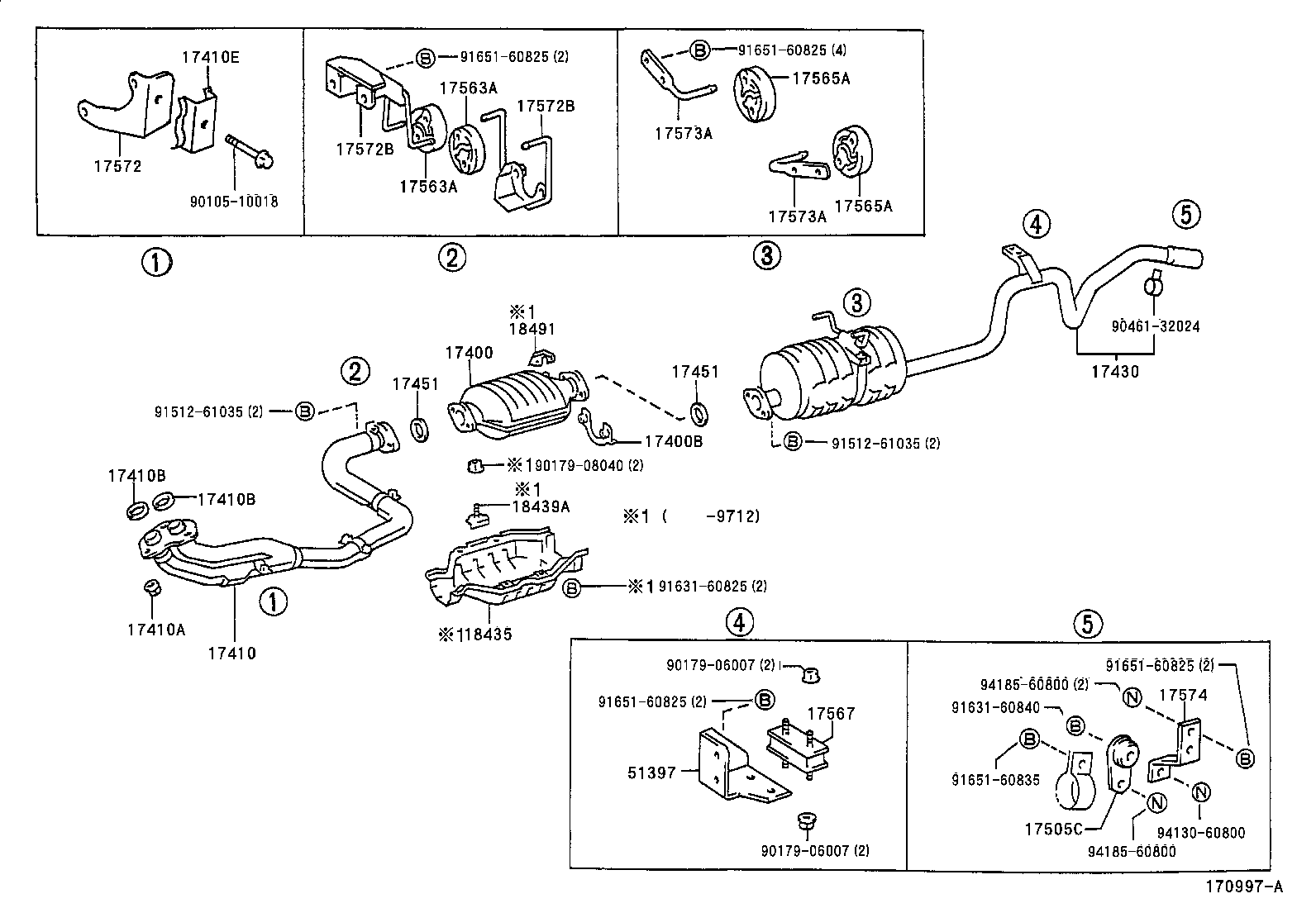

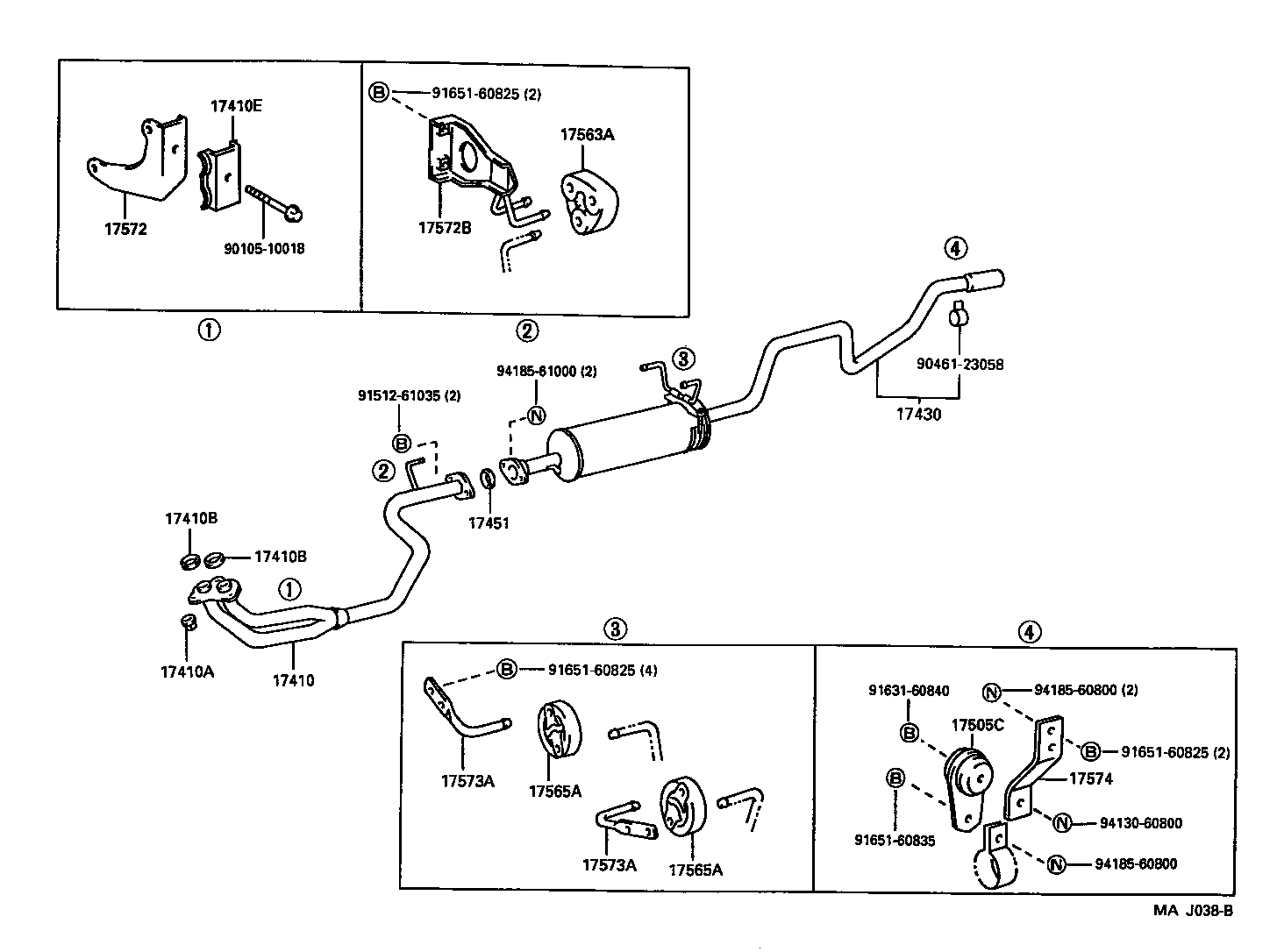

Figure 171670B 171670B 1995-05 → — Figure MAJ038B MAJ038B 1995-05 → — Figure 170997A 170997A 1995-05 → — Figure MAJ163B MAJ163B 1995-05 → 1995-08

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17400B Retainer, Exhaust Pipe
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410E Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17505C Cushion, Exhaust Pipe(FOR HEAT INSULATOR)
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17567 Cushion, Exhaust Pipe Support
17572 Bracket, Exhaust Pipe NO.1 Support
17572B Bracket, Exhaust Pipe Support, NO.2
17573A Bracket, Exhaust Pipe Support, NO.3
17574 Bracket, Exhaust Pipe Support, NO.4
18435 Protector, Catalytic Converter
18439A Bracket, Converter Protector, RH
18491 Flange, Thermosensor Inlet
51397 Bracket, Exhaust Pipe Clamp, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
