Toyota Dyna 150
1995-05 → 2001-10 · chassis LY21#,YY211 · catalogue 731260 · Europe
Discontinued model
Data version 2002-04

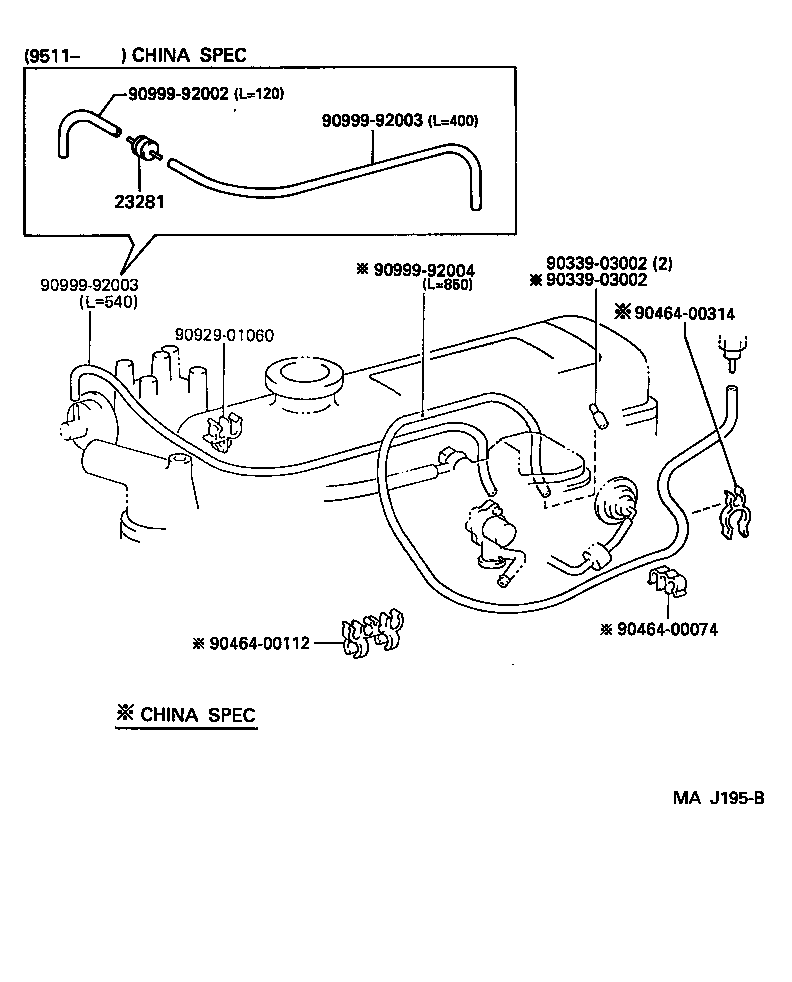

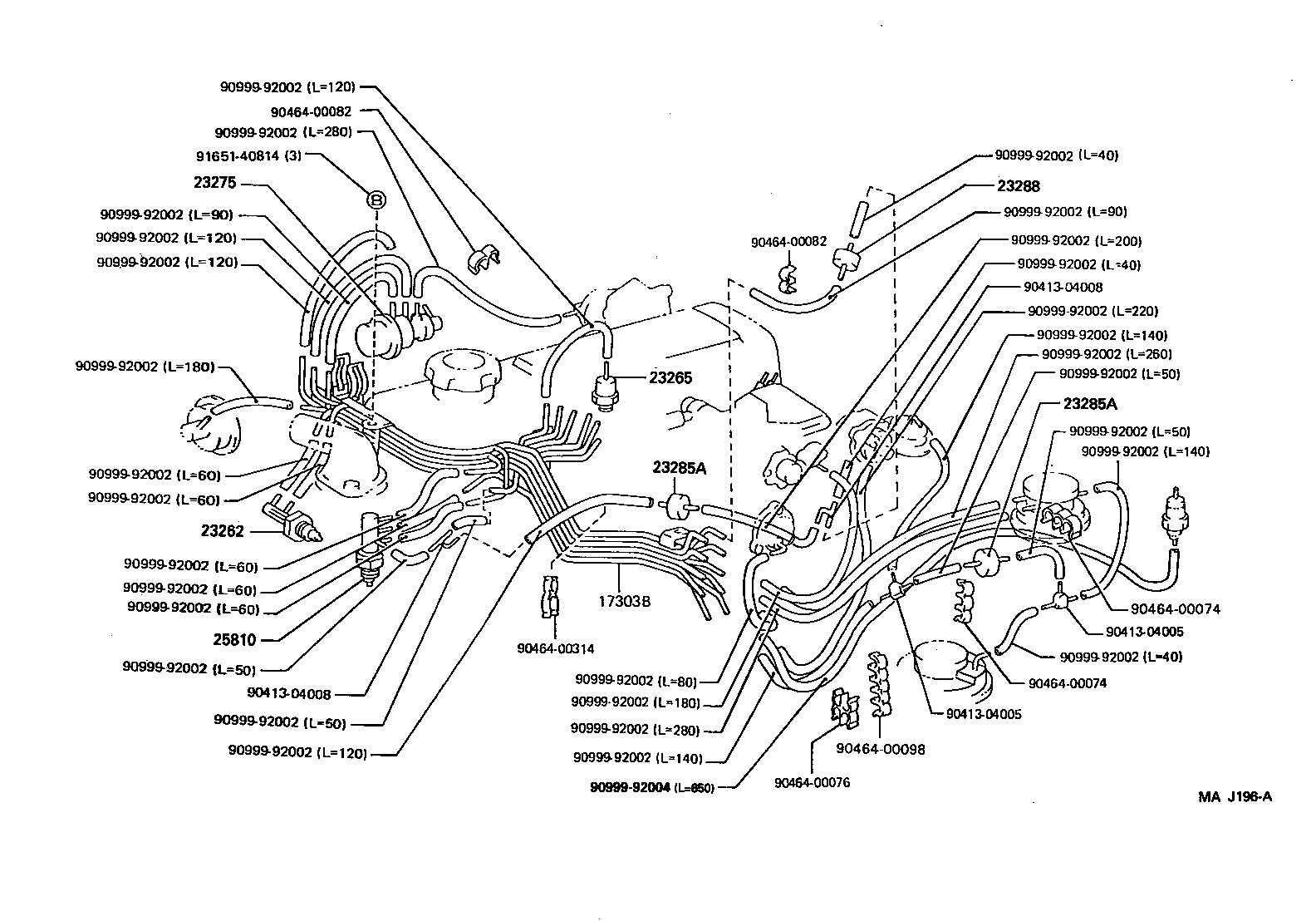

Vacuum Piping
8 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17303B | Pipe Sub-assy, Air, NO.1 |
| 23262 | Valve, Bimetal Vacuum Switching, NO.1 |
| 23265 | Filter, Gas, NO.1 |
| 23275 | Valve, Vacuum Control, NO.1 |
| 23281 | Valve, Vacuum Transmitting, NO.1 |
| 23285A | Valve, Check, NO.1 |
| 23288 | Jet, NO.1 |
| 25810 | Valve Assy, Bimetal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
