Toyota Dyna 150

1995-05 → 2001-10 · chassis LY21#,YY211 · catalogue 731260 · Europe

Discontinued model Data version 2002-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Pump

13 part groups · 2 illustrations

Illustrations

Figure MEY826

MEY826 1995-05 → 1999-05

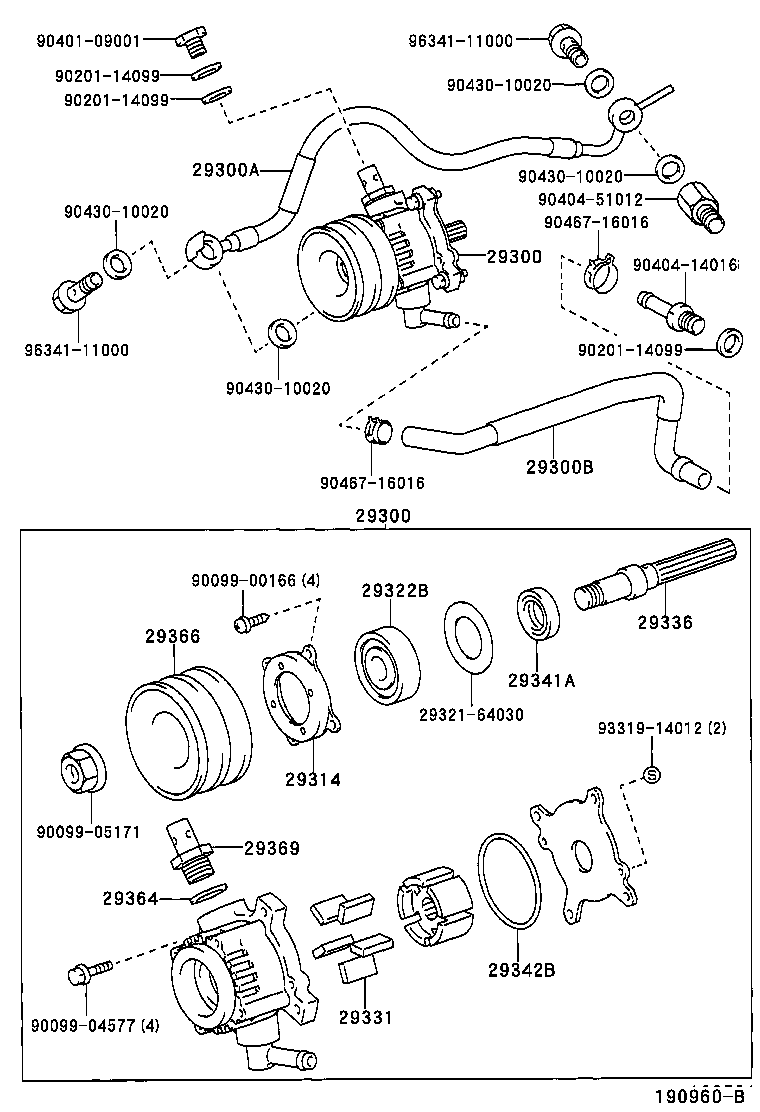

Figure 190960B

190960B 1999-05 → —

Part groups

PNC	Description
29300	Pump Assy, Vacuum
29300A	Hose, Vacuum Pump Oil Inlet
29300B	Hose, Vacuum Pump Oil Outlet
29311	Pin, Vacuum Pump Dowel, NO.1
29314	Ring, Stop
29322B	Bearing, Vacuum Pump
29331	Blade, Vacuum Pump, A
29336	Shaft, Vacuum Pump
29341A	Seal, Oil
29342B	Ring, O
29364	Washer, Vacuum Pump
29366	Pulley, Vacuum Pump
29369	Valve Sub-assy, Check

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
