Toyota Dyna 150

1995-05 → 2001-10 · chassis LY21#,YY211 · catalogue 731260 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Master Cylinder

9 part groups · 3 illustrations

Illustrations

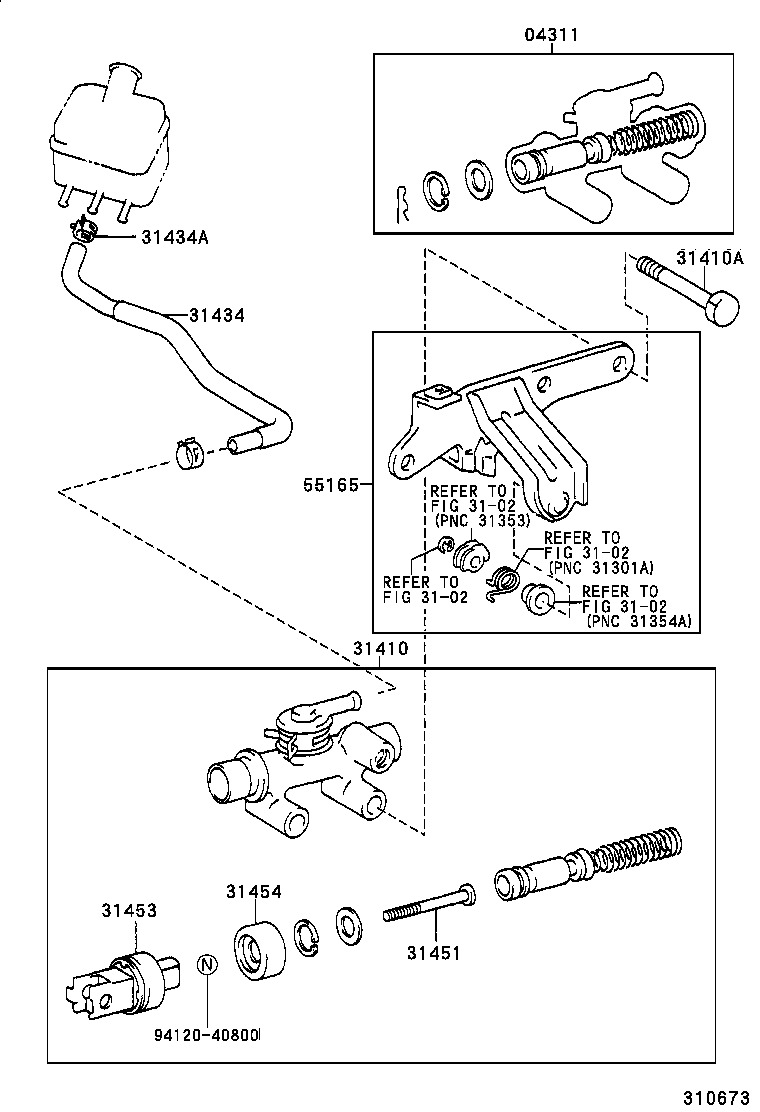

Figure MCT322A MCT322A 1995-05 → 1997-08 Figure MCT322A MCT322A 1997-08 → — Figure 310673 310673 1997-08 → —

Part groups

PNCDescription
04311 Cylinder Kit, Clutch Master
31410 Cylinder Assy, Clutch Master
31410A Bolt(FOR CLUTCH MASTER CYLINDER SETTING)
31434 Tube, Clutch Reservoir
31434A Clip(FOR CLUTCH RESERVOIR TUBE)
31451 Rod, Clutch Master Cylinder Push
31453 Clevis, Clutch Master Cylinder Push Rod
31454 Boot, Clutch Master Cylinder
55165 Support, Clutch Master Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
