Toyota Dyna 150

1995-05 → 2001-10 · chassis LY21#,YY211 · catalogue 731260 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

33 part groups · 10 illustrations

Illustrations

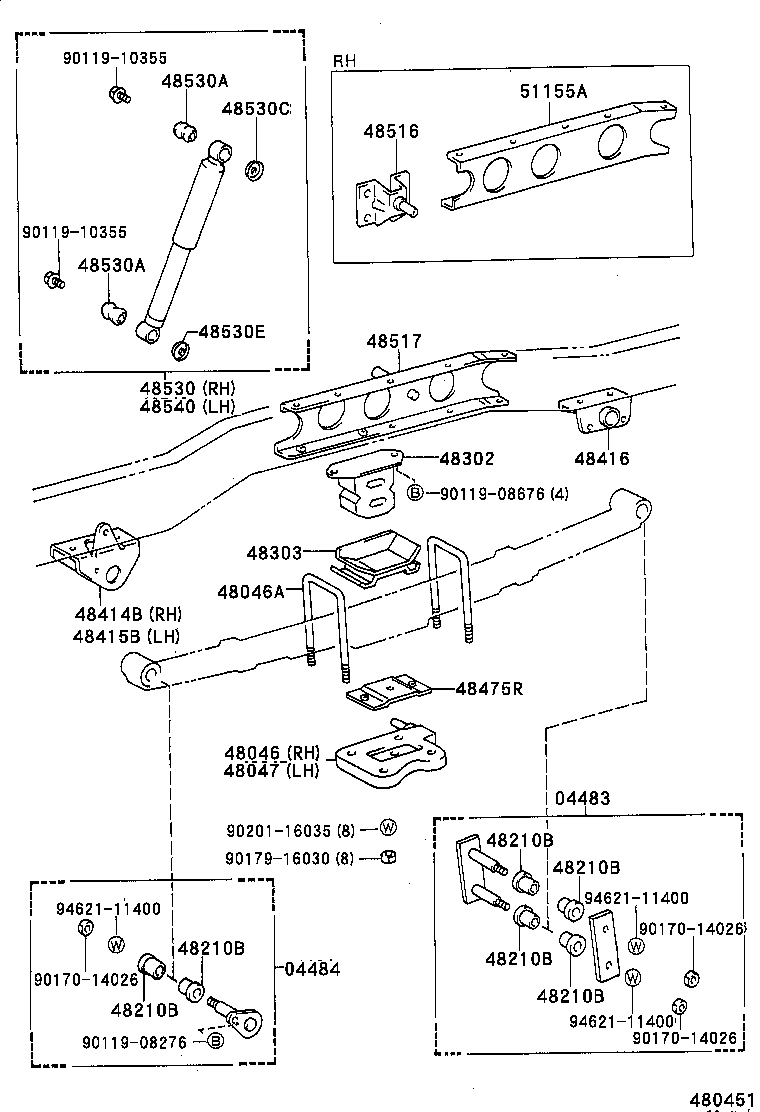

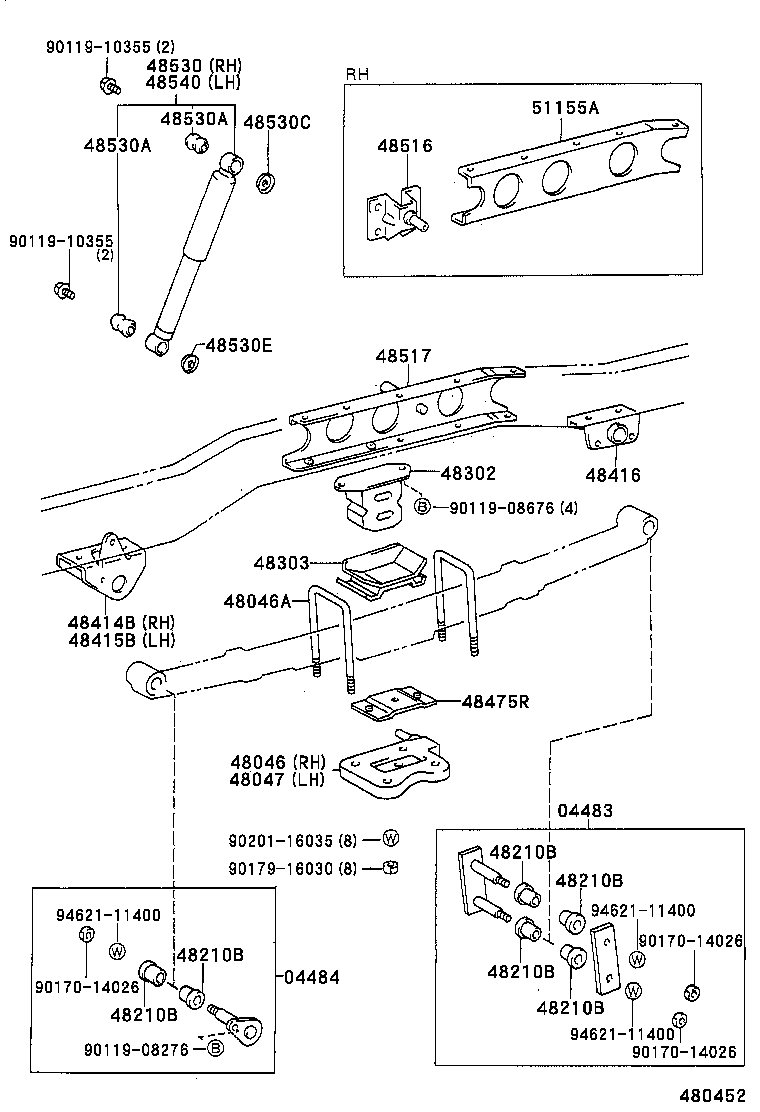

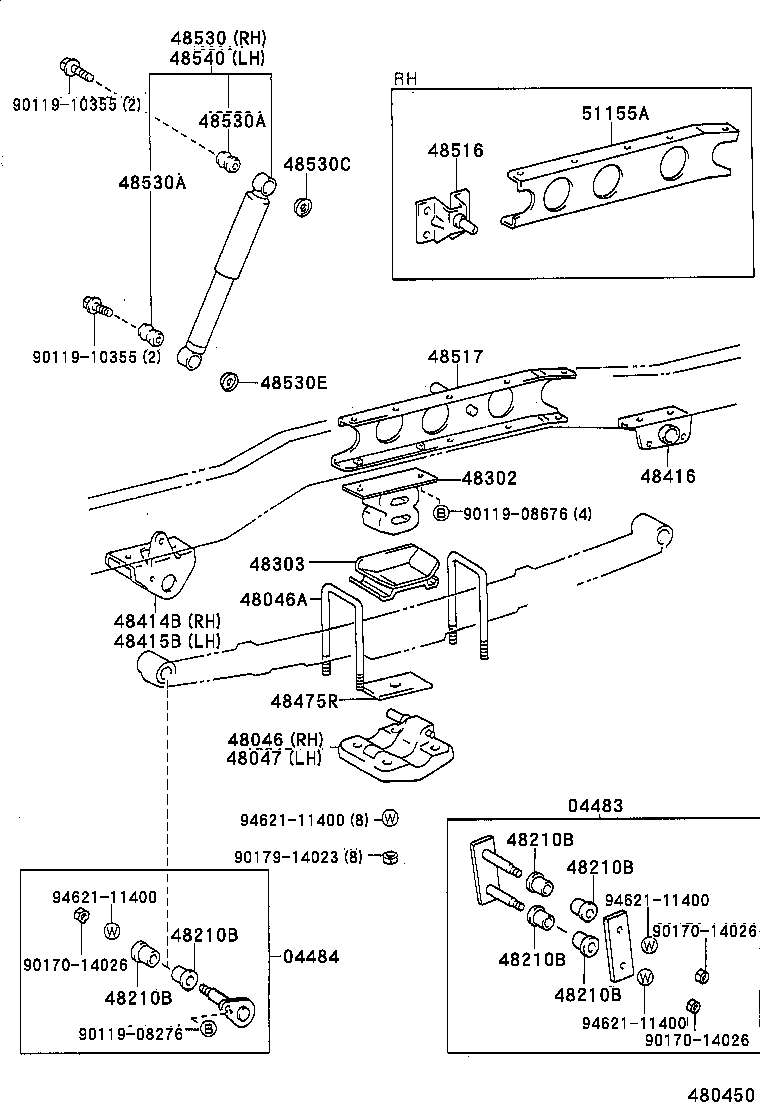

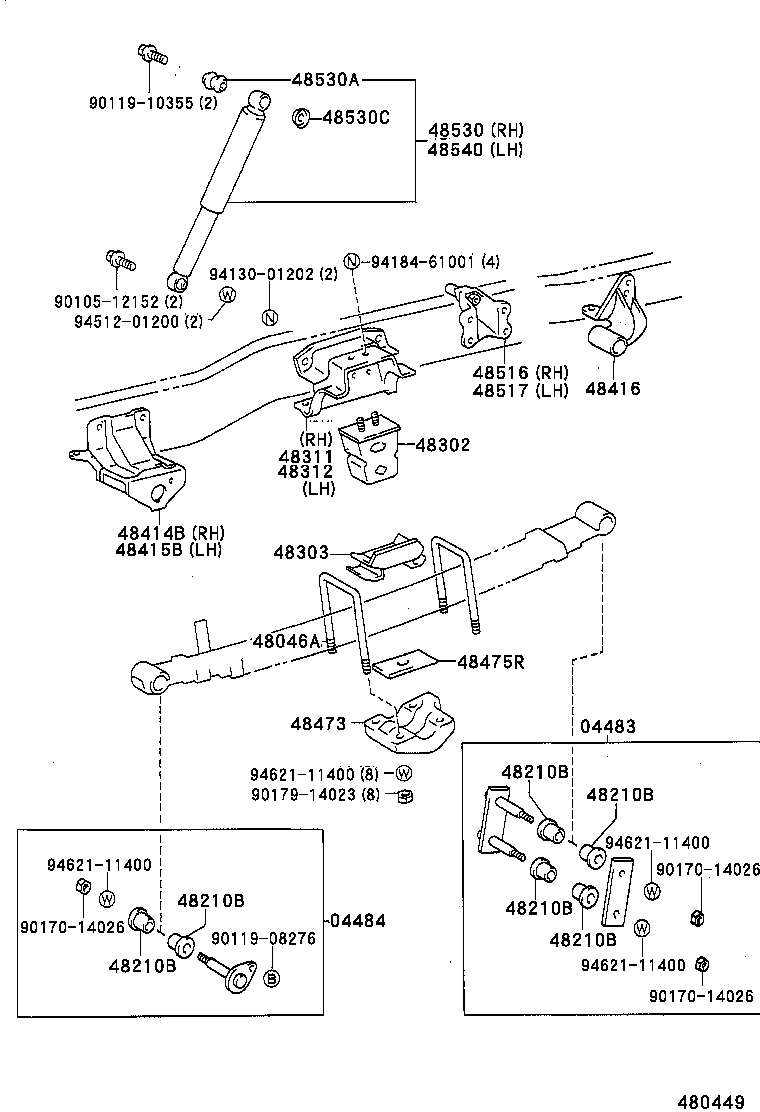

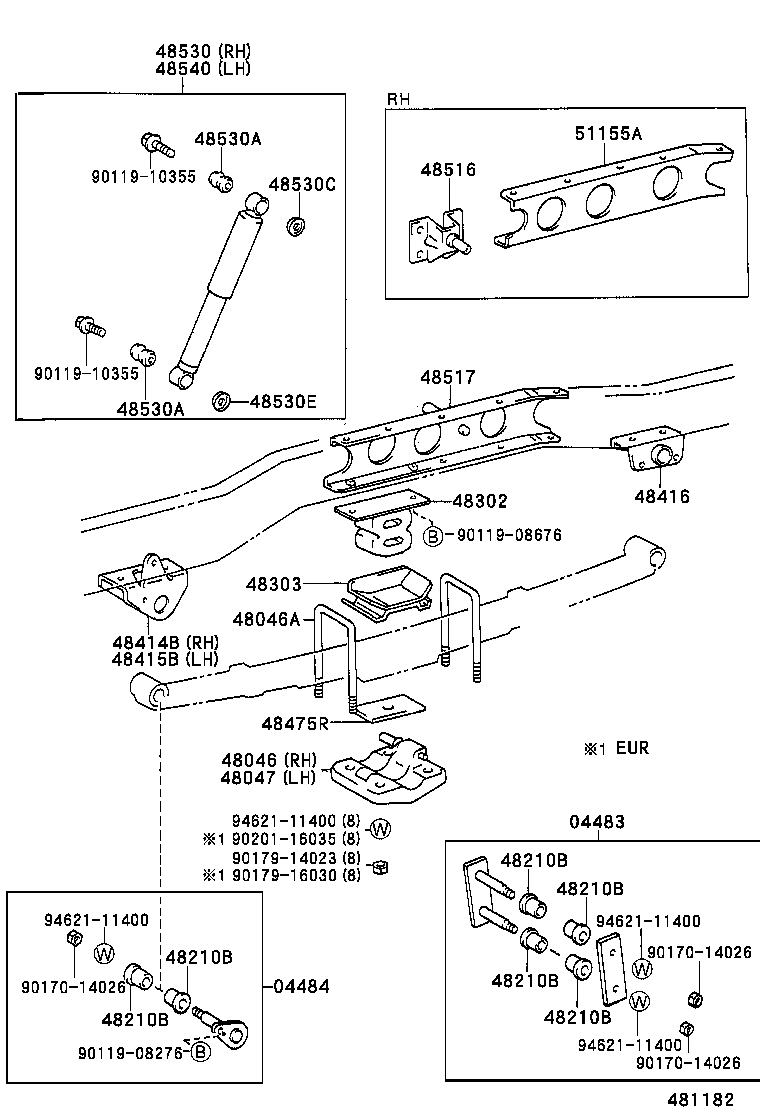

Figure 480447 480447 1995-05 → 1996-07 Figure 480449 480449 1996-07 → — Figure 481182 481182 1995-05 → 1996-07 Figure 480450 480450 1996-07 → — Figure 480451 480451 1995-05 → 1996-07 Figure 480452 480452 1996-07 → — Figure 480991 480991 1995-05 → — Figure 480991 480991 1999-09 → — Figure 480482A 480482A 1997-08 → — Figure 480993 480993 1995-05 → —

Part groups

PNCDescription
04483 Shackle Kit, Rear Spring
04484 Pin Kit, Rear Spring
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210B Bush(FOR REAR SPRING PIN)
48210C Bush(FOR REAR SPRING LEAF)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48220 Spring Assy, Rear LH
48247 Bolt, Rear Spring, Center
48252 Silencer, Rear Spring
48302 Spring Sub-assy, Hollow
48303 Seat Sub-assy, Hollow Spring
48311 Bracket, Hollow Spring
48312 Bracket, Hollow Spring, NO.2
48414B Bracket, Spring, NO.3 RH
48415B Bracket, Spring, NO.3 LH
48416 Bracket, Spring, NO.4
48473 Seat, Rear Spring U Bolt
48475R Plate, Distance(FOR REAR)
48516 Bracket, Rear Shock Absorber, Upper RH
48517 Bracket, Rear Shock Absorber, Upper LH
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530E Washer, Rear Shock Absorber Cushion, NO.4
48540 Absorber Assy, Shock, Rear LH
51155A Stiffener, Frame Side Rail, Rear RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
