Toyota Dyna 150
1995-05 → 2001-10 · chassis LY21#,YY211 · catalogue 731260 · Europe
Discontinued model
Data version 2002-04

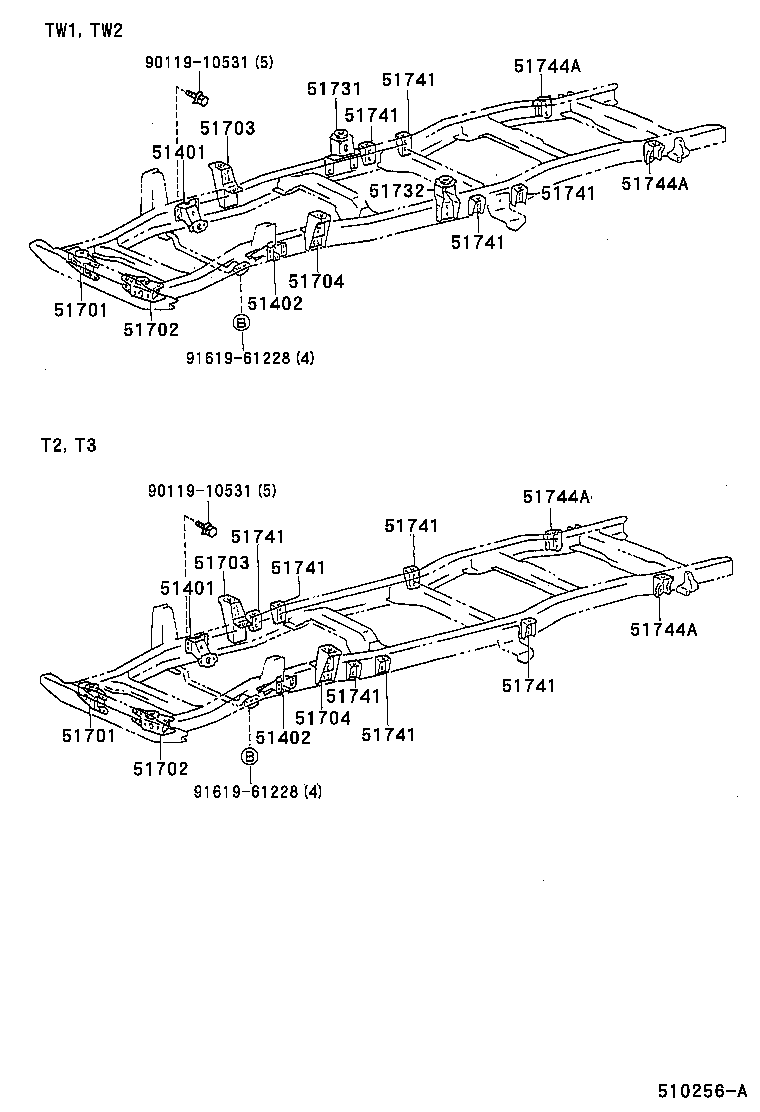

Frame
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51100F | Frame Sub-assy |
| 51201A | Crossmember Sub-assy, Frame, Front |
| 51203 | Crossmember Sub-assy, Frame, NO.2 |
| 51204 | Crossmember Sub-assy, Frame, NO.3 |
| 51205 | Crossmember Sub-assy, Frame, NO.4 |
| 51205C | Crossmember Sub-assy, Frame, NO.5 |
| 51206B | Crossmember Sub-assy, Frame, NO.6 |
| 51207B | Crossmember Sub-assy, Frame, NO.7 |
| 51401 | Bracket Sub-assy, Engine Front Mounting, RH |
| 51402 | Bracket Sub-assy, Engine Front Mounting, LH |
| 51701 | Bracket Sub-assy, Cab Mounting, NO.1 RH |
| 51702 | Bracket Sub-assy, Cab Mounting, NO.1 LH |
| 51703 | Bracket Sub-assy, Cab Mounting, NO.2, RH |
| 51704 | Bracket Sub-assy, Cab Mounting, NO.2 LH |
| 51731 | Bracket, Cab Rear Mounting, RH |
| 51732 | Bracket, Cab Rear Mounting, LH |
| 51741 | Bracket, Rear Body Mounting, NO.1 |
| 51744A | Bracket, Rear Body Mounting, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
